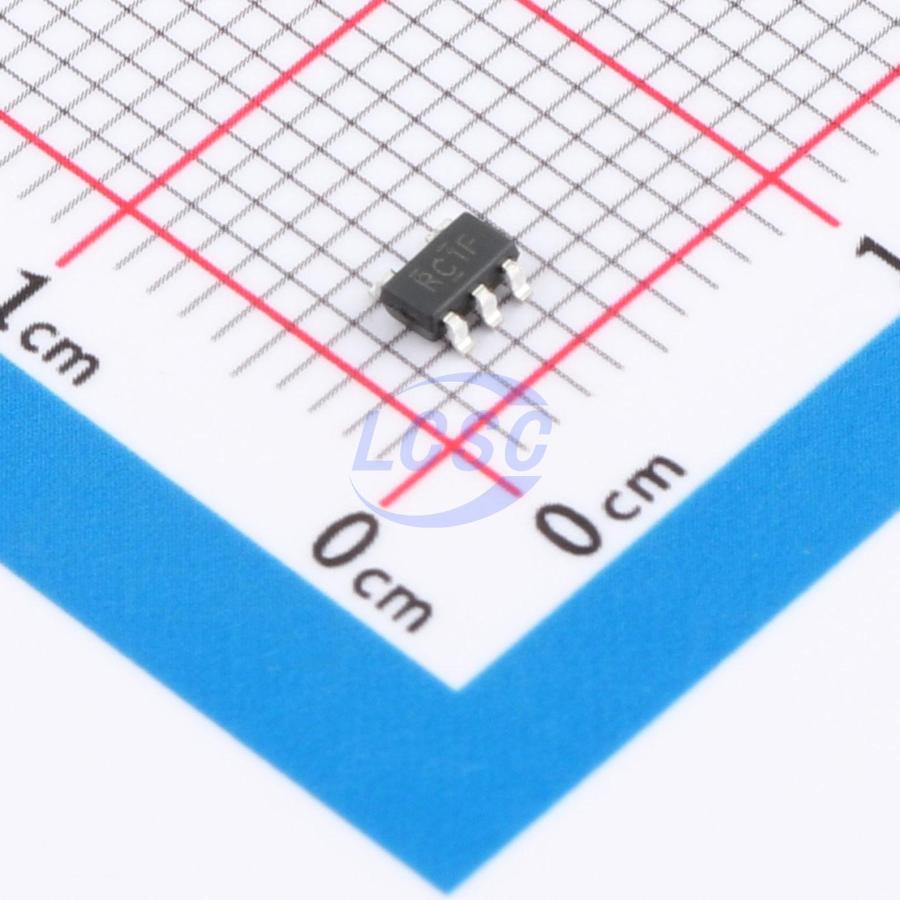

LMV321IDBVR-CN

60mA 1 3.5mV 600V/ms 10pA 62dB 1.5MHz 40uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: ChipNobo
Manufacturer part #: LMV321IDBVR-CN
Store part #: C42459046
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,020 in stock

#C42459046

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
10+	₹6.11	₹61.10
100+	₹4.84	₹484.00
300+	₹4.19	₹1,257.00
3,000+	₹3.72	₹11,160.00
6,000+	₹3.33	₹19,980.00
9,000+	₹3.14	₹28,260.00

Quantity (min 10, multiples of 10)

10 × ₹6.11

₹61.10

excl. GST

₹72.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDBVR-CN

₹61.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 62dB
Gain Bandwidth Product: 1.5MHz
Quiescent Current: 40uA
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.042 g

Overview

LMV321 (single) and LMV358 (dual) are low-cost voltage feedback amplifiers. These devices operate from a 2.1V to 5.5V single supply, with a quiescent current of only 40μA per amplifier. They feature rail-to-rail inputs with a wide common-mode input voltage range and rail-to-rail output voltage swing. This makes the LMV321/358 well suited as buffers for ASICs. The LMV321/358 offer a 1.5MHz gain bandwidth product and an ultra-low input bias current of 10pA. They are ideal for piezoelectric sensors, integrators, and photodiode amplifiers. The LMV321/358 are designed for a wide range of applications such as portable systems, security monitoring, battery-powered instrumentation, and portable systems.
