Tudi

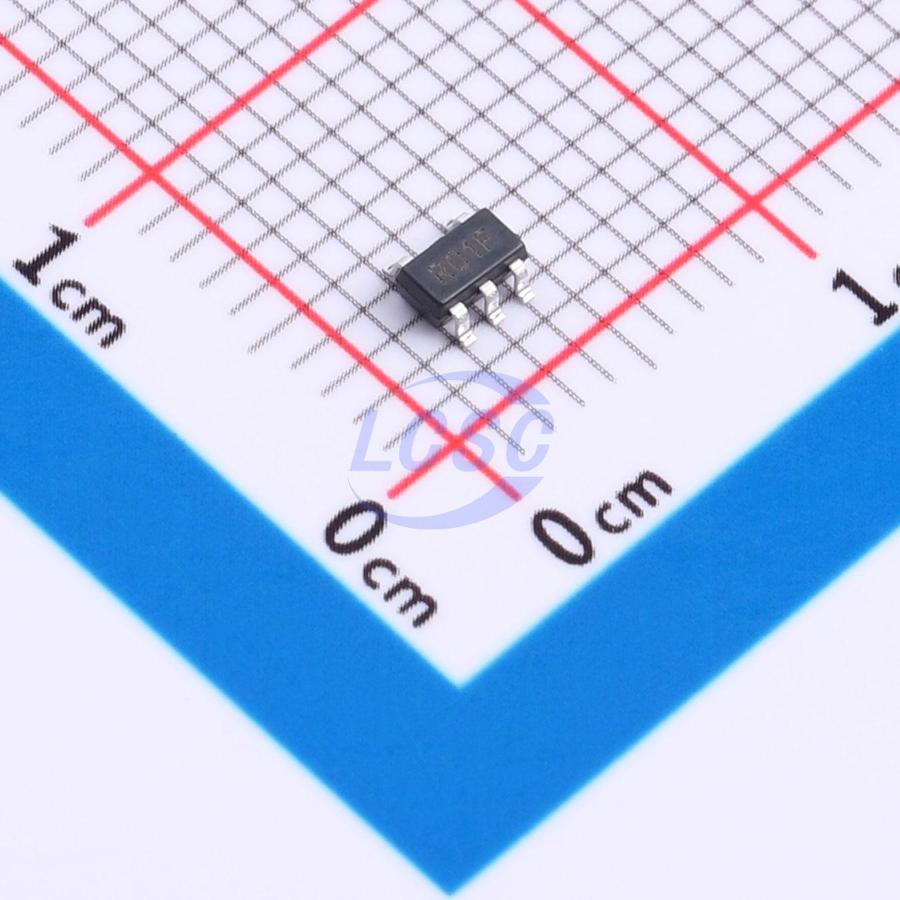

LMV321IDBVR-TUDI

45mA 1 1mV 1V/us 2.5pA 125dB 130uA 1.5MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Tudi
Manufacturer part #: LMV321IDBVR-TUDI
Store part #: C52941518
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,010 in stock

#C52941518

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.06	₹70.60
100+	₹5.61	₹561.00
300+	₹4.88	₹1,464.00
3,000+	₹4.15	₹12,450.00
6,000+	₹3.72	₹22,320.00
9,000+	₹3.51	₹31,590.00

Quantity (min 10, multiples of 10)

10 × ₹7.06

₹70.60

excl. GST

₹83.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDBVR-TUDI

₹70.60 for 10 + GST

Specifications

Output Current: 45mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 1V/us
Input Offset Current(Ios): 2.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 2.5pA
Common Mode Rejection Ratio(CMRR): 125dB
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 130uA
Gain Bandwidth Product: 1.5MHz
Input Voltage Noise Density: 28nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The LMV321, LMV358, and LMV324 are single, dual, and quad low-voltage (2.7V to 5.5V) op amps with rail-to-rail output swing. These devices provide a cost-effective solution for applications requiring low supply voltage, space savings, and low cost. Designed for low supply voltage operation (2.7V to 5V), their performance meets or exceeds that of the LM358 and LM324 devices operating over a 5V to 30V supply range. These devices are available in packages as small as the DBV (SOT-23), making them suitable for a wide range of applications.

Applications

Smoke detectors
Motion detectors
Wearable devices
Large and small home appliances
Motor control

Key features

2.7V and 5V performance
Operating temperature range: -40°C to 125°C
No crossover distortion
Low supply current
LMV321: 130 μA (typical)
LMV358: 210 μA (typical)
LMV324: 410 μA (typical)
Rail-to-rail output swing
ESD protection exceeds JESD 22 specification requirements
2000V Human Body Model
1000V Charged Device Model
