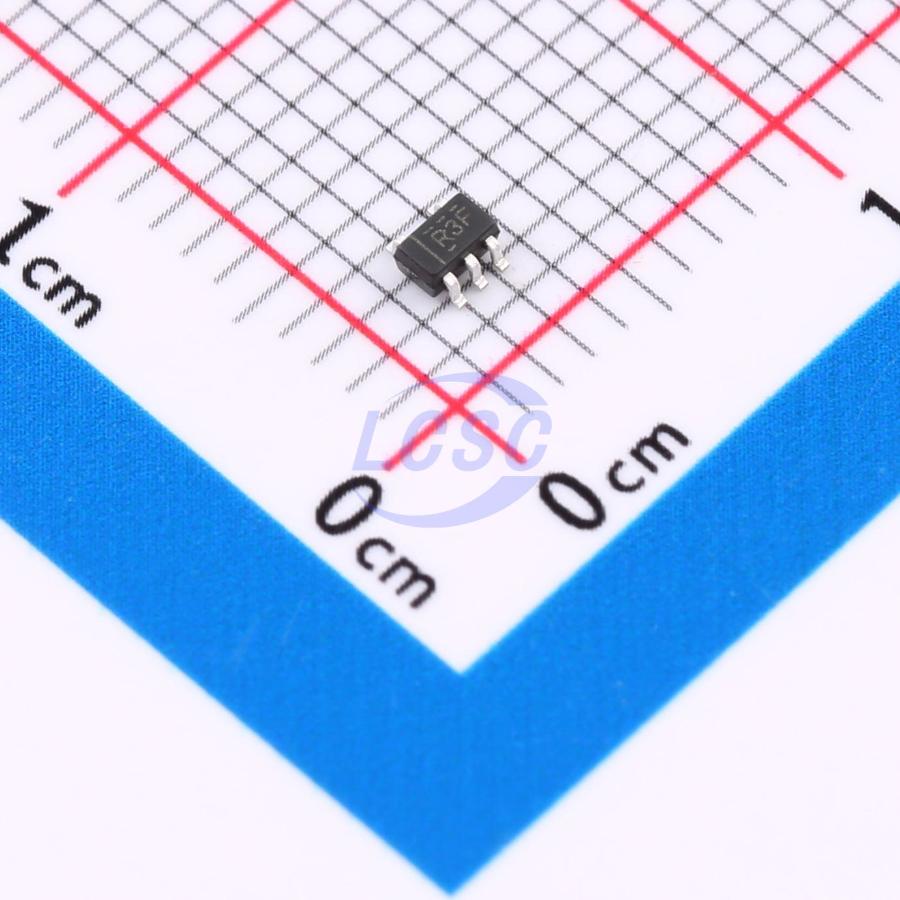

LMV321IDCKR-TP
Standard (General Purpose) Amplifier Rail-to-Rail Input, Rail-to-Rail Output SOT-353
SOT-353ROHS CompliantActive
General Purpose, 1MHz, Micro-Power CMOS Op-Amps
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LMV321IDCKR-TP
- Store part #
- C49231023
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C49231023
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.59 | ₹95.90 |
| 100+ | ₹7.53 | ₹753.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.72 | ₹17,160.00 |
| 6,000+ | ₹5.09 | ₹30,540.00 |
| 9,000+ | ₹4.79 | ₹43,110.00 |
10 × ₹9.59
₹95.90
excl. GST
₹113.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV321IDCKR-TP
₹95.90 for 10 + GST
Specifications
- Output Current
- 45mA
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -45℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 65nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-750mV;750mV~2.75V
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This series offers general-purpose, low-offset, high-frequency-response, low-power op-amps. With an impressive 1MHz bandwidth, 1V/μs slew rate, and only 28μA quiescent current per amplifier at 5V supply, these devices suit a wide range of designs. These op-amps are designed to deliver performance in low-voltage, low-power systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. These devices can drive heavy loads and provide rail-to-rail output swing. This series is fully specified over the -40°C to +85°C temperature range, operating from 1.5V to 5.5V single or dual supply.
Applications
- Audio output
- Battery and power control
- Smoke/gas/environmental sensors
- Medical devices
- Portable instruments and mobile devices
- Active filters
- Piezoelectric sensor amplifiers
- Sensor interfaces
- ASIC input or output amplifiers
Key features
- General purpose, low cost
- Gain bandwidth product: 1MHz
- Low supply current: 28μA (VS = 5V)
- Input offset voltage: 1mV (typical)
- Slew rate: 1V/μs (VS=5V)
- Input bias current: 5pA
- Rail-to-rail input and output
- No phase reversal with input overdrive
- Supply voltage range: 1.5V to 5.5V
- Operating temperature: -45°C ~ +85°C
