TDSEMICDatasheet (PDF)

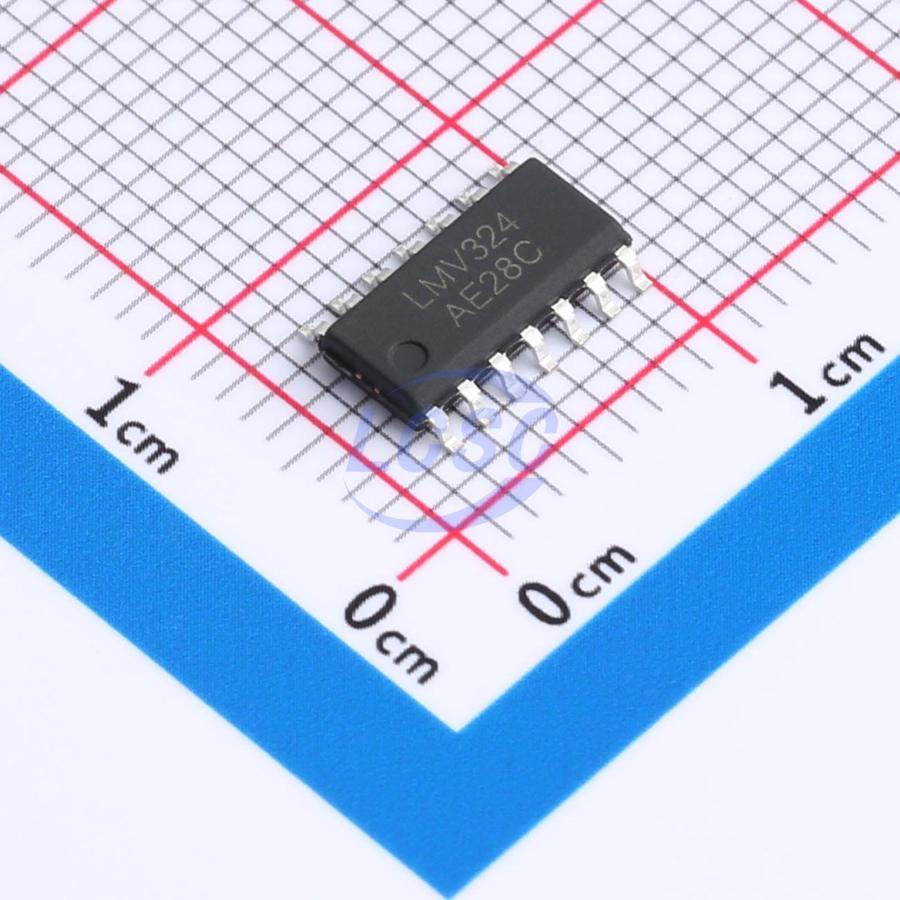

LMV324-TD
Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-14
SOP-14ROHS CompliantActive
Low-power rail-to-rail operational amplifier
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LMV324-TD
- Store part #
- C42421998
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,305 in stock
#C42421998
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.83 | ₹89.15 |
| 50+ | ₹14.14 | ₹707.00 |
| 150+ | ₹12.29 | ₹1,843.50 |
| 500+ | ₹10.90 | ₹5,450.00 |
| 2,500+ | ₹9.80 | ₹24,500.00 |
| 5,000+ | ₹9.25 | ₹46,250.00 |
5 × ₹17.83
₹89.15
excl. GST
₹105.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324-TD
₹89.15 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 500V/ms
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.283 g
Overview
LMV321, LMV358, and LMV324 are rail-to-rail input and output voltage feedback, low-power op-amps. They feature a wide input common-mode voltage range and output swing, with a minimum operating voltage of 2.1V and a maximum recommended operating voltage of 5.5V. This amplifier series delivers a gain-bandwidth product of 1.1MHz at approximately 45μA per channel, with ultralow input bias current, making them suitable for integrators, photodiode amplifiers, and piezoelectric sensors. The rail-to-rail input and output characteristics also make them well-suited for specific IC designs in single-supply systems.
Applications
- ASIC input and output op-amps
- Sensor interface
- Piezoelectric sensor amplifiers
- Medical devices
- Mobile communications
Key features
- Low power consumption.
- Rail-to-rail input and output, typical offset voltage 0.8 mV.
- Unity-gain stable.
- Gain bandwidth product 1.1 MHz.
- Low input bias current: 10 pA level, less than 1 nA.
- Operating voltage range 2.1V~5.5V.
- Low operating current: 45 uA per channel.
