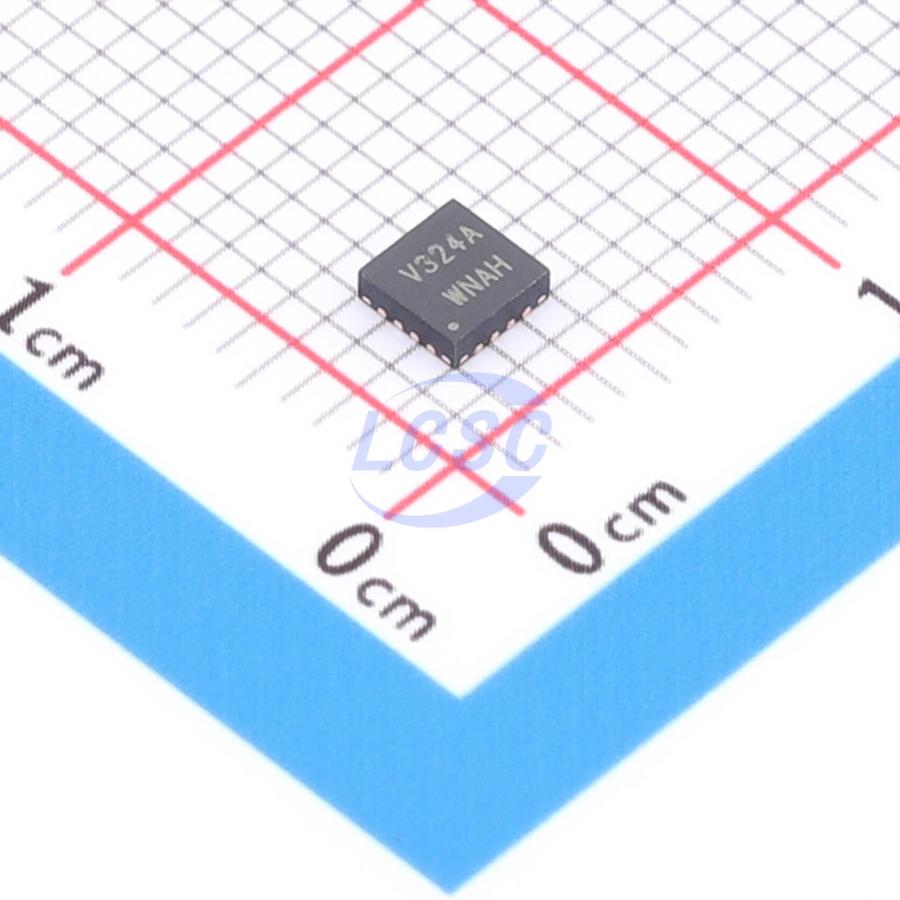

LMV324AILQ/TR-HG

40mA 4 700uV 1V/us 5pA 83dB 1.2MHz 85uA Rail-to-Rail Input, Rail-to-Rail Output QFN-16(3x3) Instrumentation, Op Amps, Buffer Amps

QFN-16(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LMV324AILQ/TR-HG
Store part #: C52953097
Package / case: QFN-16(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

765 in stock

#C52953097

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹18.19	₹90.95
50+	₹14.46	₹723.00
150+	₹12.58	₹1,887.00
500+	₹11.18	₹5,590.00
2,500+	₹10.05	₹25,125.00
5,000+	₹9.50	₹47,500.00

Quantity (min 5, multiples of 5)

5 × ₹18.19

₹90.95

excl. GST

₹107.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

LMV324AILQ/TR-HG

₹90.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 700uV
Slew Rate: 1V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5pA
Common Mode Rejection Ratio(CMRR): 83dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Gain Bandwidth Product: 1.2MHz
Quiescent Current: 85uA
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.116 g

Overview

The LMV321AI/LMV358AI/LMV324AI series single-channel, dual-channel, and quad-channel op-amps are designed for general-purpose, cost-sensitive systems and applications. The series features rail-to-rail input and output swing, low quiescent current (85 μA typical), wide bandwidth (1.2 MHz), and low noise (30 nV/√Hz at 1 kHz), making them highly attractive for a wide range of battery-powered applications requiring a good balance of cost and performance, such as audio output, consumer electronics, smoke detectors, portable medical devices, and white goods. The low input bias current enables these amplifiers to be used in applications with megaohm-level source impedances. The robust design of this amplifier series provides ease of use for circuit designers: unity-gain stable, capable of driving capacitive loads up to 500 pF, integrated RF/EMI rejection filter, no phase reversal under overdrive conditions, and high ESD protection (5 kV HBM). The LMV321AI/LMV358AI/LMV324AI amplifiers are optimized for operation from as low as +1.8 V (±0.9 V) to as high as +5.5 V (±2.75 V) and over an extended temperature range of -40°C to +125°C. The LMV321AI (single-channel) is available in SOT23-5 and SC70-5 packages. The LMV358AI (dual-channel) is available in SOP-8, DIP-8, TSSOP-8, DFN-8, SOT23-8, and MSOP-8 packages. The quad-channel LMV324AI is available in DIP-14, SOP-14, TSSOP-14, QSOP-16, and QFN-16 packages.
