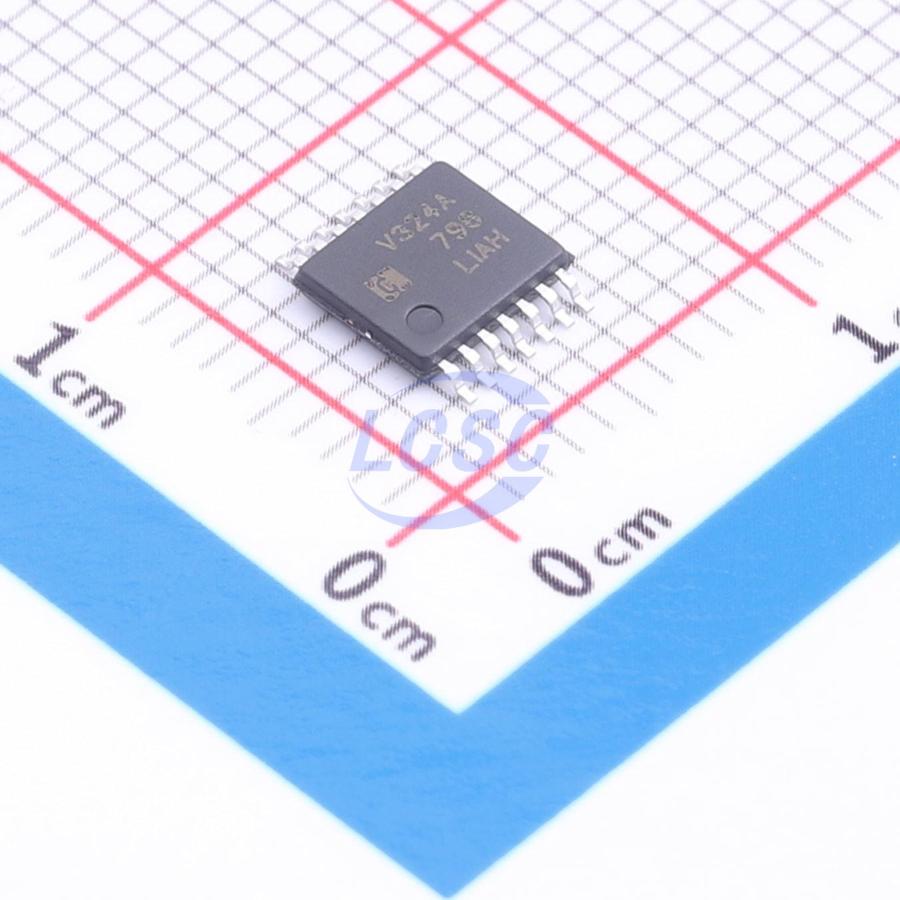

LMV324AIMT/TR
40mA 4 3mV 1V/us 5pA 83dB 1.2MHz 85uA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps
TSSOP-14RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV324AIMT/TR
- Store part #
- C50314584
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C50314584
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.93 | ₹84.65 |
| 50+ | ₹13.39 | ₹669.50 |
| 150+ | ₹11.62 | ₹1,743.00 |
| 500+ | ₹10.28 | ₹5,140.00 |
| 2,500+ | ₹9.22 | ₹23,050.00 |
| 5,000+ | ₹8.69 | ₹43,450.00 |
5 × ₹16.93
₹84.65
excl. GST
₹99.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324AIMT/TR
₹84.65 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 83dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Gain Bandwidth Product
- 1.2MHz
- Quiescent Current
- 85uA
- Features
- EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGV6004AIMT/TR#C49496641HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,350 | ₹18.02 · 2,350 in stock | View |
 | AD8544AIMT/TR#C49496649HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,460 | ₹28.81 · 2,460 in stock | View |
 | OPA4374MT/TR#C20613269HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,323 | ₹65.59 · 2,323 in stock | View |
| AD8608MT/TR#C41415987HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,276 | ₹108.95 · 2,276 in stock | View | |
 | LMV724MT/TR#C5160101HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 552 | ₹67.22 · 552 in stock | View |
