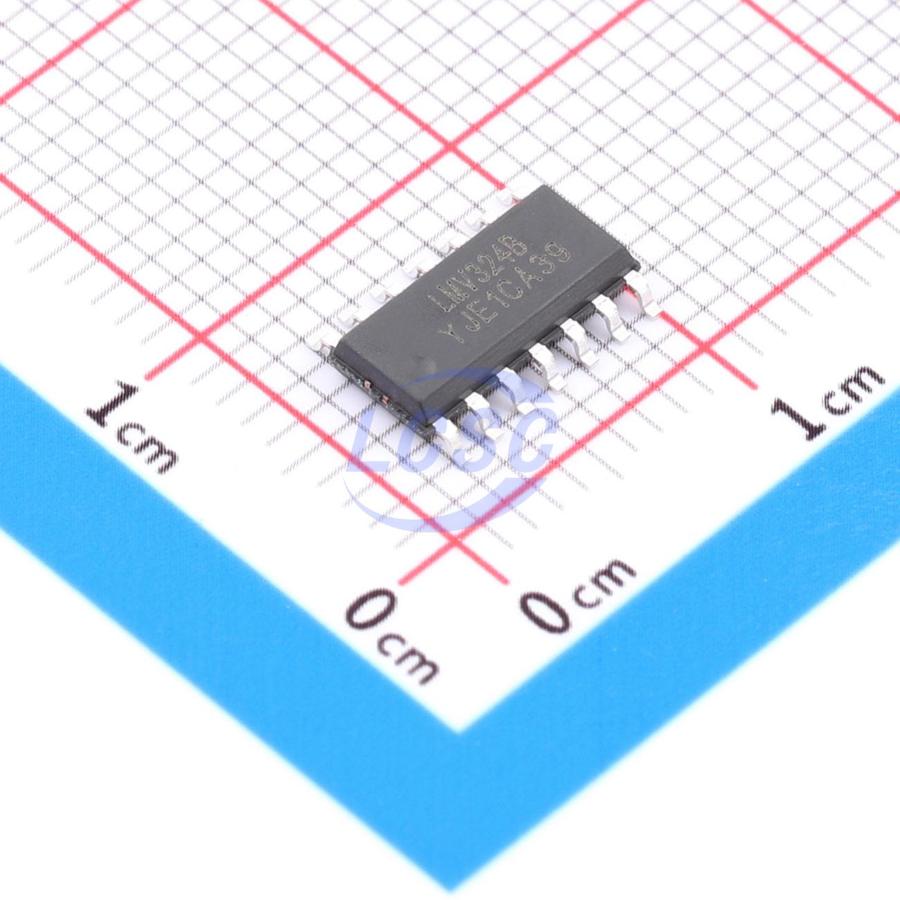

LMV324B-SR

60mA 4 600uV 600V/ms 70dB 10pA 44uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Manufacturer: Gainsil
Manufacturer part #: LMV324B-SR
Store part #: C52211935
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,480 in stock

#C52211935

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹28.52	₹142.60
50+	₹22.54	₹1,127.00
150+	₹19.96	₹2,994.00
500+	₹16.76	₹8,380.00
2,500+	₹15.35	₹38,375.00
5,000+	₹14.49	₹72,450.00

Quantity (min 5, multiples of 5)

5 × ₹28.52

₹142.60

excl. GST

₹168.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV324B-SR

₹142.60 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 4
Vos - Input Offset Voltage: 600uV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 44uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 150nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.25 g

Overview

The LMV358B/324B features a 1MHz gain-bandwidth product, 0.6V/μs slew rate, and 44μA quiescent current per amplifier at 5V. This device family is designed to deliver performance in low-voltage, low-noise systems. They are capable of driving heavy loads with rail-to-rail output swing. The input common-mode voltage range includes ground, and the LMV358B/324B input offset voltage ranges from 0.4mV to 0.8mV. Specifications are defined over the extended industrial temperature range (-40°C to +125°C). The operating voltage range is 1.8V to 5.5V. The LMV358B dual amplifier is available in green SOP-8 and MSOP-8 packages. The LMV324B quad amplifier is available in green SOP-14 and TSSOP-14 packages.

Applications

ASIC input or output amplifier
Sensor interface
Medical communications
Smoke detector
Audio output
Piezoelectric transducer amplifier
Medical instrumentation
Portable systems

Key features

Single-supply voltage range: +1.8V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 1MHz (typical)
Low input bias current: 10pA (typical)
Low offset voltage: 0.6mV (typical)
Quiescent current per amplifier: 44μA (typical)
Built-in RF EMI rejection filter
Operating temperature range: -40°C ~ +125°C
Small form factor packages: LMV358B available in SOP-8 and MSOP-8; LMV324B available in SOP-14 and TSSOP-14
