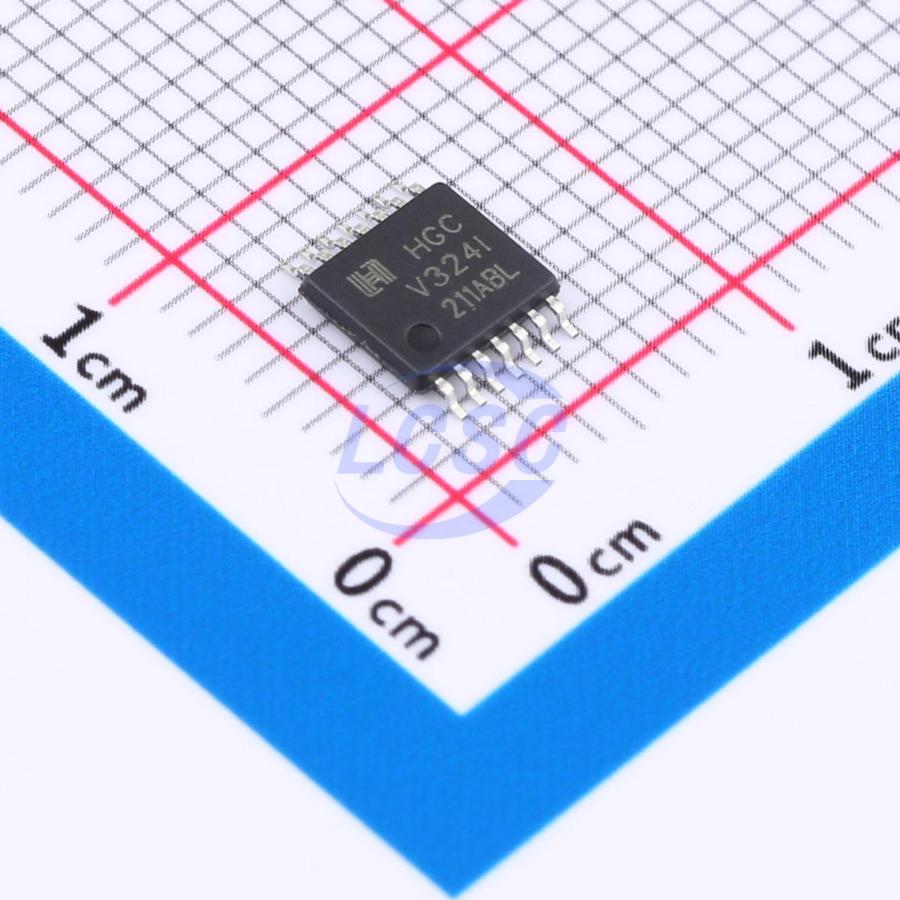

LMV324IPWRG

84mA 4 3.5mV 600V/ms 1pA 70dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14L Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14LROHS CompliantActive

1MHz CMoS Rail-to-Rail Io Opamp with RF Filter

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LMV324IPWRG
Store part #: C2977081
Package / case: TSSOP-14L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,690 in stock

#C2977081

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.81	₹79.05
50+	₹12.71	₹635.50
150+	₹11.17	₹1,675.50
500+	₹10.02	₹5,010.00
2,500+	₹8.82	₹22,050.00
5,000+	₹8.36	₹41,800.00

Quantity (min 5, multiples of 5)

5 × ₹15.81

₹79.05

excl. GST

₹93.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV324IPWRG

₹79.05 for 5 + GST

Specifications

Output Current: 84mA
Number of Channels: 4
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.22 g

Overview

LMV321, LMV358, and LMV324 are rail-to-rail input and output, voltage feedback, low-power op amp families. They feature a wide input common-mode voltage range and output swing, with a minimum operating voltage of 2.1V and a maximum recommended operating voltage of 5.5V. These amplifiers deliver a gain bandwidth product of 1.1MHz at a quiescent current of approximately 45uA per channel, along with ultra-low input bias current. Their rail-to-rail input and output characteristics make them well suited for specific IC designs in single-supply systems. Applications include signal processing and interfacing in portable devices, battery-powered equipment, and low-power sensor systems.

Applications

ASIC input and output op-amps
Sensor interfaces
Medical devices
Mobile communications
Portable systems

Key features

Low power consumption
Rail-to-rail input and output, typical offset voltage 0.8mV
Unity-gain stable
Gain bandwidth product 1.1MHz
Low input bias current: 10pA level, less than 1nA
Operating voltage range 2.1V to 5.5V
Low operating current: 45uA per channel
Available in compact package options
