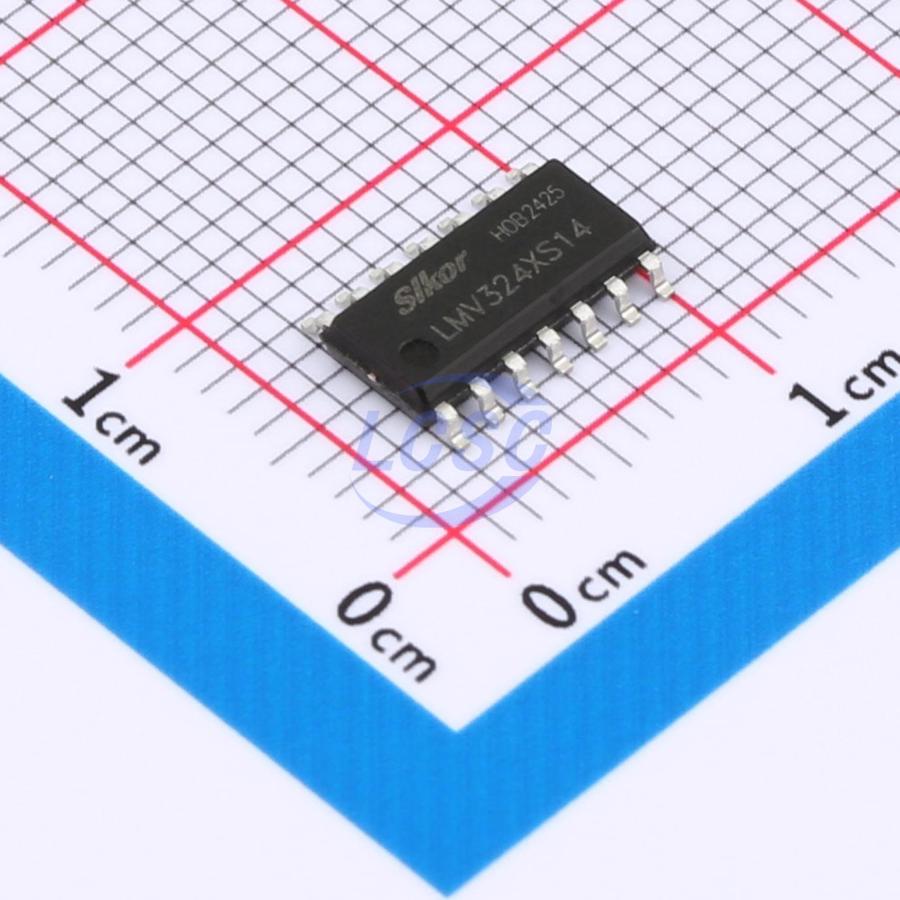

LMV324XS14

The LMV321 (single), LMV358 (dual) and LMV324 (quad) are general purpose, low offset, high frequency response and micro power operational amplifiers. With an excellent bandwidth of 1MHz, a slew rate of 0.8V/μs, and a quiescent current of 80μA per amplifier at 5V, the LMV321 /358 /324 family can be designed into a wide range of applications. The LMV321 /358 /324 op-amps are designed to provide optimal performance in low voltage and low power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 4.5mV. These parts provide rail-to-rail output swing into heavy loads. The LMV321 /358 /324 family is specified for single or dual power supplies of +1.8V to +5.5V. All models are specified over the extended industrial temperature range of -40 °C to +125 °C. The LMV321 is available in 5-lead SOT-23 and SC70-5 package. The LMV 358 is available in 8-lead SOP package. The LMV324 is available in 14-lead SOP package.

Applications

• Smoke/Gas/Environment Sensors
• Audio Outputs
• Battery and Power Supply Control
• Portable Equipment and Mobile Devices
• Active Filters
• Sensor Interfaces
• Battery-Powered Instrumentation
• Medical Instrumentation

Key features

• General Purpose 1MHz Amplifiers, Low Cost
• High Slew Rate: 0.8V/μs
• Low Offset Voltage: 4.5 mV Maximum
• Low Power: 80μA per Amplifier Supply Current
• Settling Time to 0.1% with 2V Step: 4.2 μs
• Unit Gain Stable
• Rail-to-Rail Input and Output ⪰ Input Voltage Range: -0.1V to +5.1V at 5V Supply
• Operating Power Supply: +1.8V to +5.5V
• Operating Temperature Range: -40 °C to +125 °C ESD Rating: HBM-4kV, CDM-2kV
