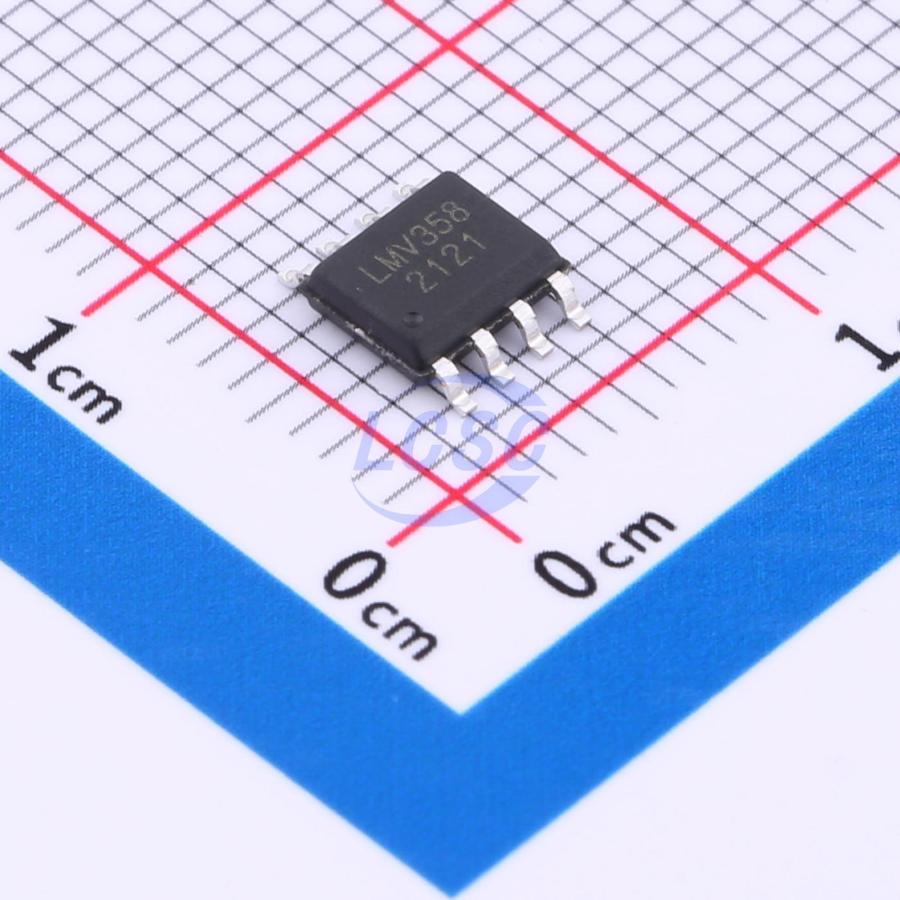

LMV358

27mA 2 800uV 520V/ms 10pA 62dB 86uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

1MHz Bandwidth, 60uA Low Power, Rail-to-Rail I/O CMOS Operational Amplifiers

Manufacturer: JSCJ
Manufacturer part #: LMV358
Store part #: C2829198
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,335 in stock

#C2829198

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
5+	₹23.85	₹119.25
50+	₹19.26	₹963.00
150+	₹17.29	₹2,593.50
500+	₹14.84	₹7,420.00
2,500+	₹13.75	₹34,375.00
4,000+	₹13.08	₹52,320.00

Quantity (min 5, multiples of 5)

5 × ₹23.85

₹119.25

excl. GST

₹140.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LMV358

₹119.25 for 5 + GST

Specifications

Output Current: 27mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 520V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 62dB
Quiescent Current: 86uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.169 g

Overview

The LMV358(dual) are rail - to - rail input and output voltage feedback amplifiers offering low cost. They have a wide input common - mode voltage range and output voltages wing, and take the minimum operating supply voltage down to 2.1V and the maximum recommended supply voltage is 5.5V. The LMV358 provide 1MHz bandwidth at a low current consumption of 60μA per amplifier. Very low input bias currents of 10pA enable LMV358 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail - to - rail inputs and outputs are useful to designers buffering ASIC in single - supply systems. Applications for the series amplifiers include safety monitoring, portable equipment, battery and power supply control, and signal conditioning and interfacing for transducers in very low power systems. The LMV358 is available in SOP8 and MSOP8 packages.
