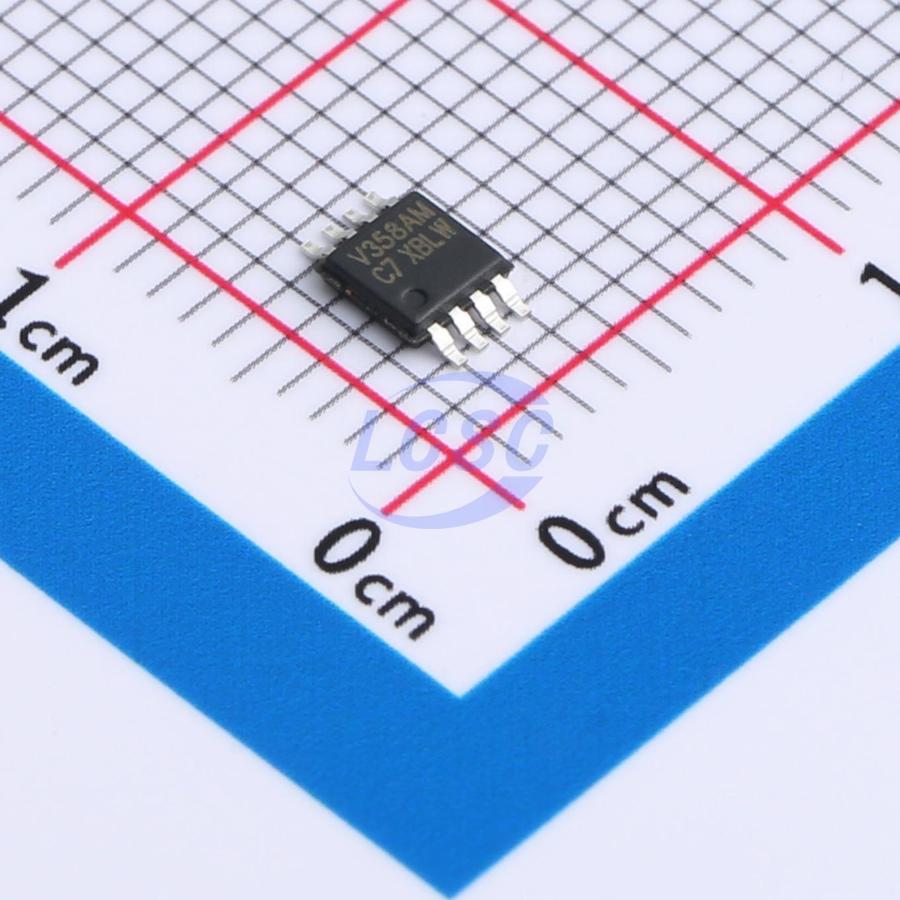

LMV358AMDTR(XBLW)

40mA 2 1mV 800V/ms 90dB 1pA 80uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

1MHz, General Purpose, RRlO CMOS Amplifiers

Manufacturer: XBLW
Manufacturer part #: LMV358AMDTR(XBLW)
Store part #: C18723614
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,400 in stock

#C18723614

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.13	₹70.65
50+	₹10.99	₹549.50
150+	₹9.43	₹1,414.50
500+	₹8.26	₹4,130.00
3,000+	₹7.33	₹21,990.00
6,000+	₹6.85	₹41,100.00

Quantity (min 5, multiples of 5)

5 × ₹14.13

₹70.65

excl. GST

₹83.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV358AMDTR(XBLW)

₹70.65 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.3uV/℃
Quiescent Current: 80uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.15V;1.15V~2.75V
Single Supply: 2.3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.133 g

Overview

The XBLW LMV321A (single), XBLW LMV358A (dual) and XBLW LMV324A (quad) are general purpose, low offset, high frequency response and micro power operational amplifiers. With an excellent bandwidth of 1MHz, a slew rate of 0.8V/μs and a quiescent current of 80μA per amplifier at 5V, the XBLW LMV321A/358A/324A family can be designed into a wide range of applications. The XBLW LMV321A/358A/324A op-amps are designed to provide optimal performance in low voltage and low power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 4.5mV. These parts provide rail-to-rail output swing into heavy loads. The XBLW LMV321A/358A/324A family is specified for single or dual power supplies of +2.3V to +5.5V. All models are specified over the extended industrial temperature range of -40℃ to +125℃. The XBLW LMV321A is available in 5-lead SOT-23 and SC70-5 package. The XBLW LMV358A is available in 8-lead SOP package. The XBLW LMV324A is available in 14-lead SOP package.

Applications

Active Filter
Smoke/Gas/Environment Sensors
Audio Outputs
Battery and Power Supply Control
Portable Equipment and Mobile Devices
Sensor Interfaces
Battery-Powered Instrumentation
Medical Instrumentation

Key features

General Purpose 1MHz Amplifiers
Low Cost
High Slew Rate: 0.8V/μs
Low Offset Voltage: 4.5mV Maximum
Low Power: 80μA per Amplifier Supply Current
Setting Time to 0.1% with 2V Step: 4.2μs
Unit Gain Stable
Rail-to-Rail Input and Output
Input Voltage Range: -0.1V to +5.1V at 5V Supply
Operating Power Supply: +2.3V to +3.5V
Operating Temperature Range: -40℃ to +125℃
ESD Rating: HBM - 4kV, CDM - 2kV
Upgrade to LMV321A/LMV358A/LMV324A Family
