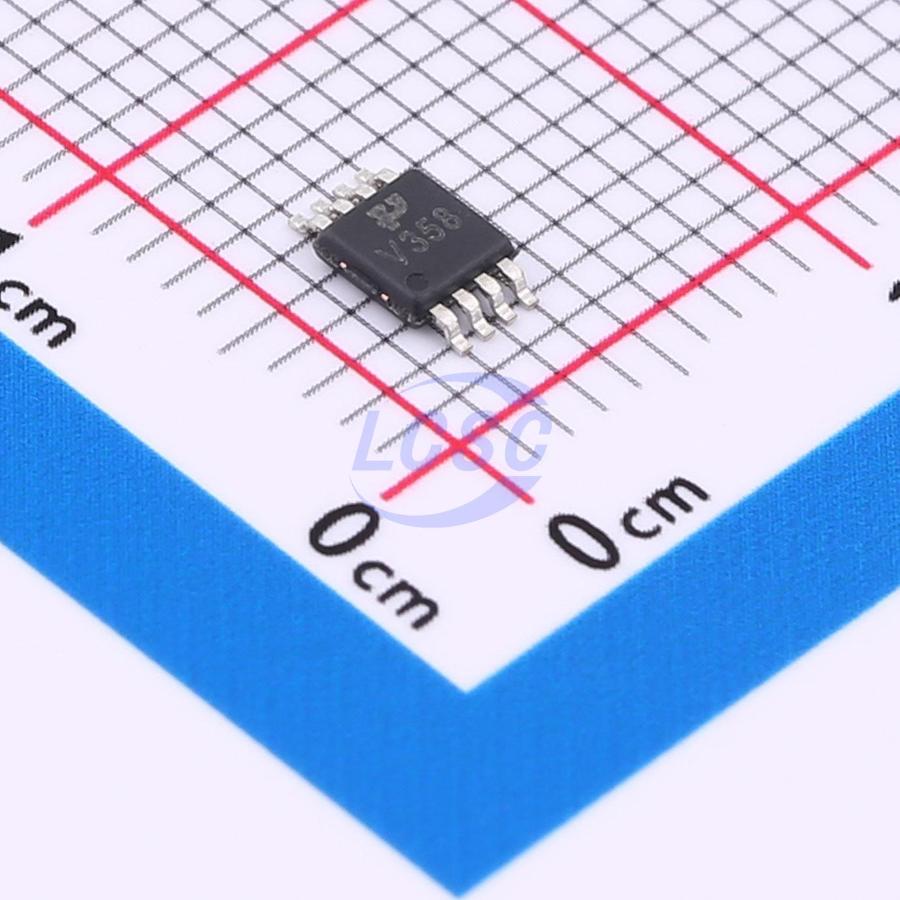

LMV358DMR2G-TP
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output MSOP-8L
MSOP-8LRoHSActive
CMOS, RailtoRail General-Purpose Amplifiers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LMV358DMR2G-TP
- Store part #
- C46472787
- Package / case
- MSOP-8L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,760 in stock
#C46472787
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.63 | ₹98.15 |
| 50+ | ₹17.15 | ₹857.50 |
| 150+ | ₹16.09 | ₹2,413.50 |
| 500+ | ₹14.75 | ₹7,375.00 |
| 3,000+ | ₹14.16 | ₹42,480.00 |
| 6,000+ | ₹13.80 | ₹82,800.00 |
5 × ₹19.63
₹98.15
excl. GST
₹115.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV358DMR2G-TP
₹98.15 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 80uA
- Gain Bandwidth Product
- 1MHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.128 g
Overview
Applications
- Portable devices
- Mobile communications
- Smoke detectors
- Medical instruments
- Battery-powered instruments
- Sensor interfaces
- Handheld test equipment
Key features
- Single-supply operation, supply voltage range: +2.5V to +5.5V
- Rail-to-rail input/output
- Gain bandwidth product: 1MHz (typical)
- Low input bias current: 10pA (typical)
- Low offset voltage: 5mV (maximum)
- Quiescent current: 40μA per amplifier (typical)
- Operating temperature range: -40°C to +125°C
- MSOP-8L package
- Integrated anti-RF filter for significantly improved RF immunity with no additional components
- Dual op-amp typical quiescent supply current: 80μA
