MSKSEMIDatasheet (PDF)

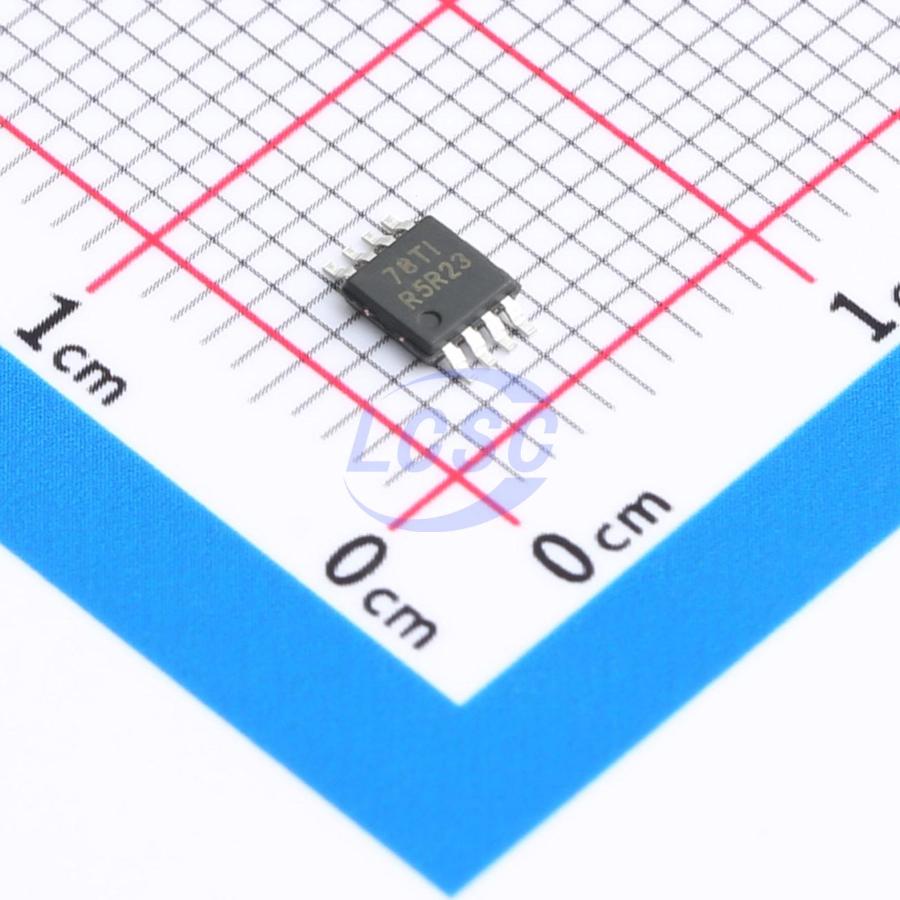

LMV358IDGKR-MS
2 500uV 1.2V/us 95dB 2pA 1.5MHz 50uA Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS CompliantActive
ESD、TVS、TSS、MOV、GDT、PLED
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV358IDGKR-MS
- Store part #
- C45367206
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,035 in stock
#C45367206
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.52 | ₹87.60 |
| 50+ | ₹13.88 | ₹694.00 |
| 150+ | ₹12.07 | ₹1,810.50 |
| 500+ | ₹10.69 | ₹5,345.00 |
| 2,500+ | ₹9.46 | ₹23,650.00 |
| 5,000+ | ₹8.92 | ₹44,600.00 |
5 × ₹17.52
₹87.60
excl. GST
₹103.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358IDGKR-MS
₹87.60 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Gain Bandwidth Product
- 1.5MHz
- Quiescent Current
- 50uA
- Features
- Zero drift / auto-zero
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
LMV358 is a dual-channel CMOS op-amp that employs proprietary auto-zeroing technology to deliver ultra-low offset voltage with near-zero drift over time and temperature. These miniature, high-precision, low-quiescent-current amplifiers feature high-impedance inputs, a common-mode range that extends 200mV beyond the supply rails, and rail-to-rail output swing within 50mV of the supply rails. They operate from single or dual supplies as low as 2.1V (±1.35V) and as high as 5.5V (±2.75V), optimized for low-voltage, single-supply operation. The LMV358 offers excellent CMRR without the crossover distortion associated with conventional complementary input stages. This design delivers superior performance when driving ADCs without degrading differential linearity. The LMV358IDR-MS is available in 8-pin SOP-8, VSSOP, and TSSOP packages.
Applications
- Sensors
- Temperature measurement
- Electronic scales
- Medical instruments
- Handheld test equipment
Key features
- Supply voltage range: 2.1V to 5.5V
- Low offset voltage: 0.5mV (typical)
- Low drift: 0.65 μV/°C (typical)
- Low noise
- Quiescent current: 50 μA (total)
- Rail-to-rail input/output
- Miniature packages: SOP-8, VSSOP, and TSSOP
