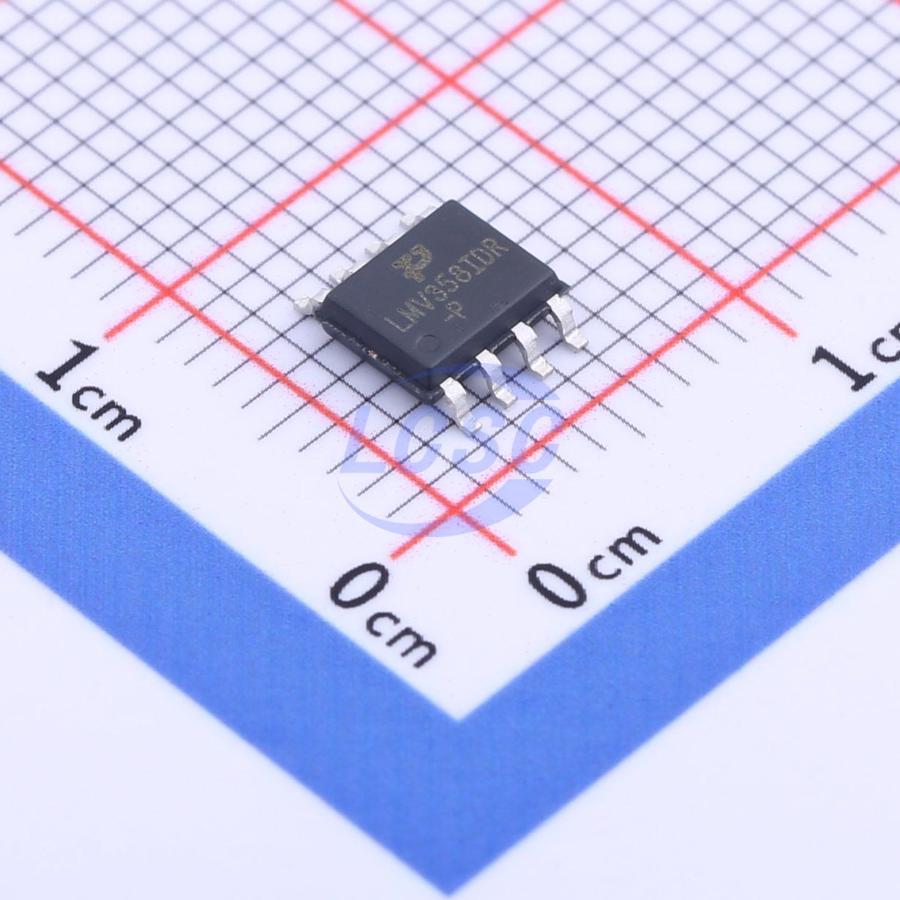

LMV358IDR

20mA 2 5mV 600V/ms 10pA 65dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

CMOS, Rail to Rail General-Purpose Amplifiers

Manufacturer: TECH PUBLIC
Manufacturer part #: LMV358IDR
Store part #: C2928703
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,435 in stock

#C2928703

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.87	₹64.35
50+	₹11.43	₹571.50
150+	₹10.72	₹1,608.00
500+	₹10.19	₹5,095.00
2,500+	₹9.50	₹23,750.00
4,000+	₹9.27	₹37,080.00

Quantity (min 5, multiples of 5)

5 × ₹12.87

₹64.35

excl. GST

₹75.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LMV358IDR

₹64.35 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 65dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 20nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.165 g

Overview

The LMV358 is a single supply, low power CMOS dual operational amplifier; these amplifiers offer bandwidth of 1MHz, rail- to- rail inputs and outputs, and single- supply operation from 2.5V to 5.5V. The embedded anti RF filter can significantly increase the RF immunity without extra components. Typical low quiescent supply current of 80uA in dual operational amplifiers within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. The LMV358 is available in SOP- 8L packages. The extended temperature range of - 40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

Portable Equipment
Mobile Communications
Smoke Detector
Medical Instrumentation
Battery- Powered Instruments
Sensor Interface
Handheld Test Equipment

Key features

Single- Supply Operation from +2.5V ~ +5.5V
Rail- to- Rail Input/Output
Gain- Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 10pA (Typ.)
Low Offset Voltage: 5mV (Max.)
Quiescent Current: 40uA per Amplifier (Typ.)
Operating Temperature: - 40°C ~ +125°C
Available in SOP- 8L
