UMWDatasheet (PDF)

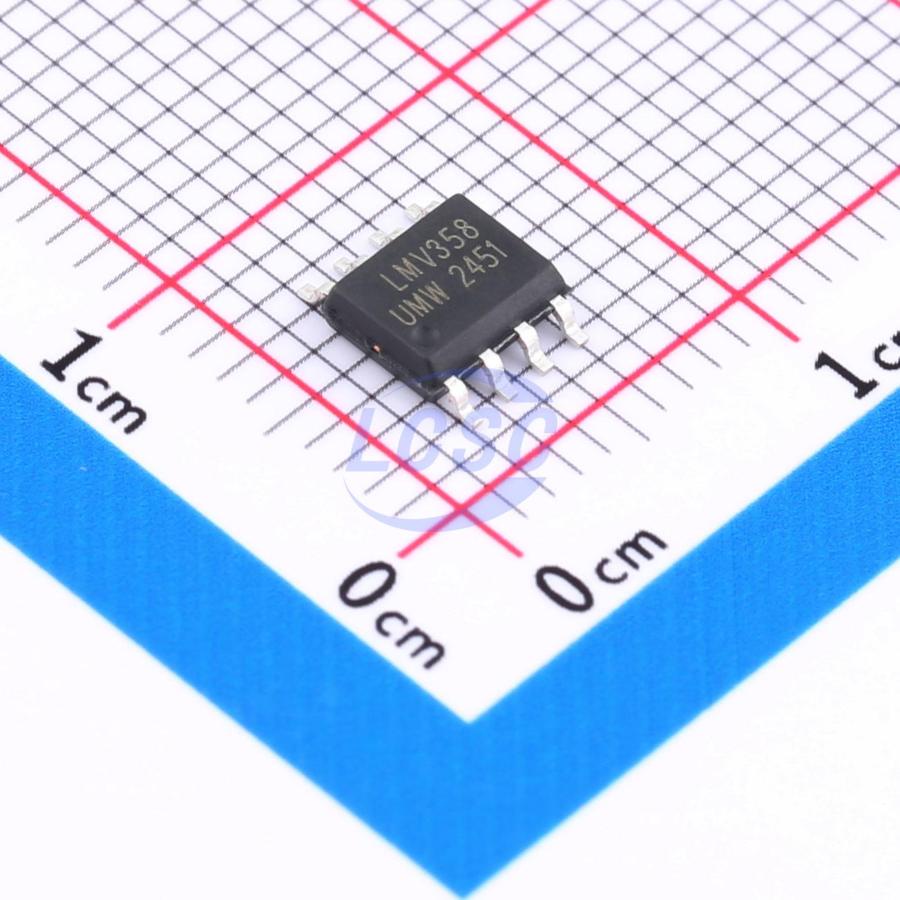

LMV358IDR(UMW)
25mA 2 5mV 520V/ms 89dB 10nA 1MHz 45uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low-Power rail-to-rail Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LMV358IDR(UMW)
- Store part #
- C3008587
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
92,340 in stock
#C3008587
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.66 | ₹63.30 |
| 50+ | ₹10.04 | ₹502.00 |
| 150+ | ₹8.73 | ₹1,309.50 |
| 500+ | ₹7.74 | ₹3,870.00 |
| 2,500+ | ₹6.11 | ₹15,275.00 |
| 5,000+ | ₹5.72 | ₹28,600.00 |
5 × ₹12.66
₹63.30
excl. GST
₹74.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358IDR(UMW)
₹63.30 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 520V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 89dB
- Ib - Input Bias Current
- 10nA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 45uA
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP358-SR(UMW)#C20754800UMW · SOP-8 | UMW | SOP-8 | 430 | ₹9.80 · 430 in stock | View |
 | OPA2348AID(UMW)#C21713887UMW · SOP-8 | UMW | SOP-8 | 1,425 | ₹22.35 · 1,425 in stock | View |
 | OPA2348AIDR(UMW)#C22469435UMW · SOP-8 | UMW | SOP-8 | 570 | ₹21.55 · 570 in stock | View |
 | TSV912IDT(UMW)#C22373394UMW · SOP-8 | UMW | SOP-8 | 3,980 | ₹19.59 · 3,980 in stock | View |
 | AD8632ARZ(UMW)#C18057299UMW · SOP-8 | UMW | SOP-8 | 935 | ₹29.97 · 935 in stock | View |
