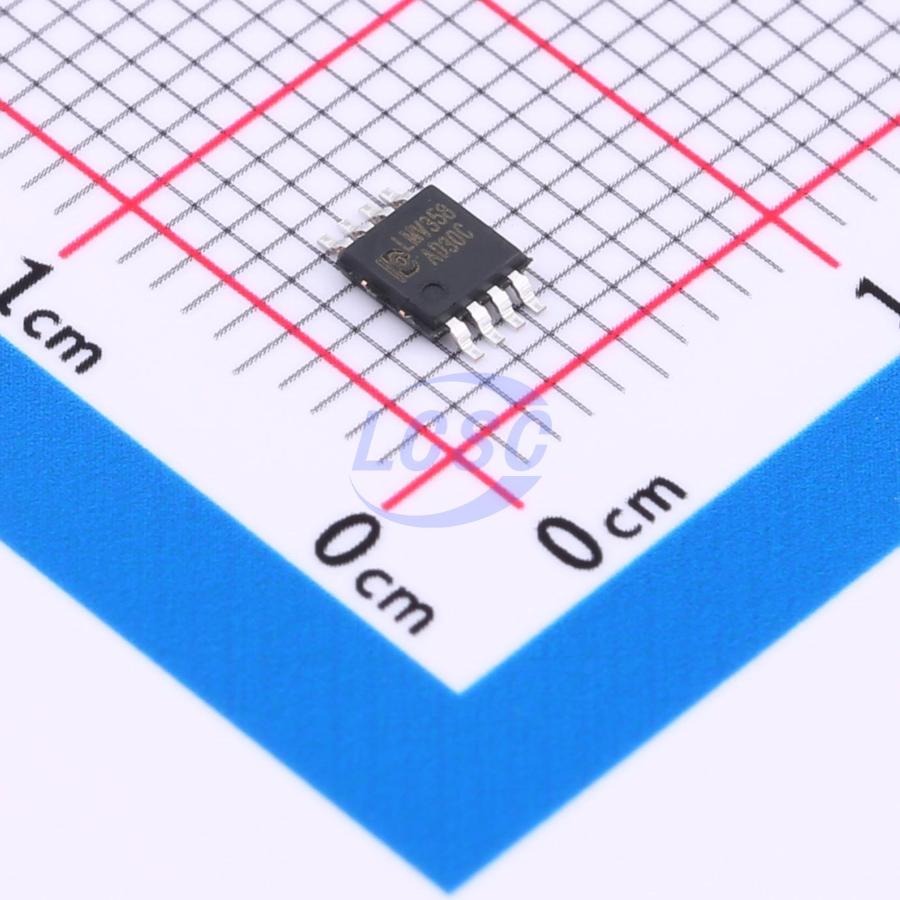

LMV358S

40mA 2 500uV 800V/ms 1pA 95dB 85uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

1.1MHz,85uA,CMOS,RRIO Operational Amplifiers

Manufacturer: IDCHIP
Manufacturer part #: LMV358S
Store part #: C18197891
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,865 in stock

#C18197891

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.24	₹66.20
50+	₹10.68	₹534.00
150+	₹9.39	₹1,408.50
500+	₹8.43	₹4,215.00
3,000+	₹6.68	₹20,040.00
6,000+	₹6.30	₹37,800.00

Quantity (min 5, multiples of 5)

5 × ₹13.24

₹66.20

excl. GST

₹78.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV358S

₹66.20 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 95dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -2.75V~-1.15V;1.15V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.149 g

Overview

The LMV321(single), LMV358S(dual) and LMV324(quad) are low voltage micro power CMOS voltage feedback operational amplifiers. With an excellent bandwidth of 1.1MHz, a slew rate of 0.8V/µs, and a quiescent current of 85µA per amplifier at 5V, the LMV32X family can be designed into a wide range of applications. The LMV32X op-amps are specifically designed for general-purpose applications with optimal performance. They have a wide input common-mode voltage range and output voltage swing, and the maximum input offset voltage are 3.5mV. These parts provide rail-to-rail output swing into heavy loads. The LMV32X family is specified for single or dual power supplies of +2.3V to +5.5V. All models are specified over the extended industrial temperature range of -40°C to +125°C. The LMV321 is available in 5-lead SC70 and SOT-23, and 8-lead SO packages. The LMV358S is available in 8-lead MSOP, DFN2*2 and SO packages. The LMV324 is available in 14-lead TSSOP and SO packages.
