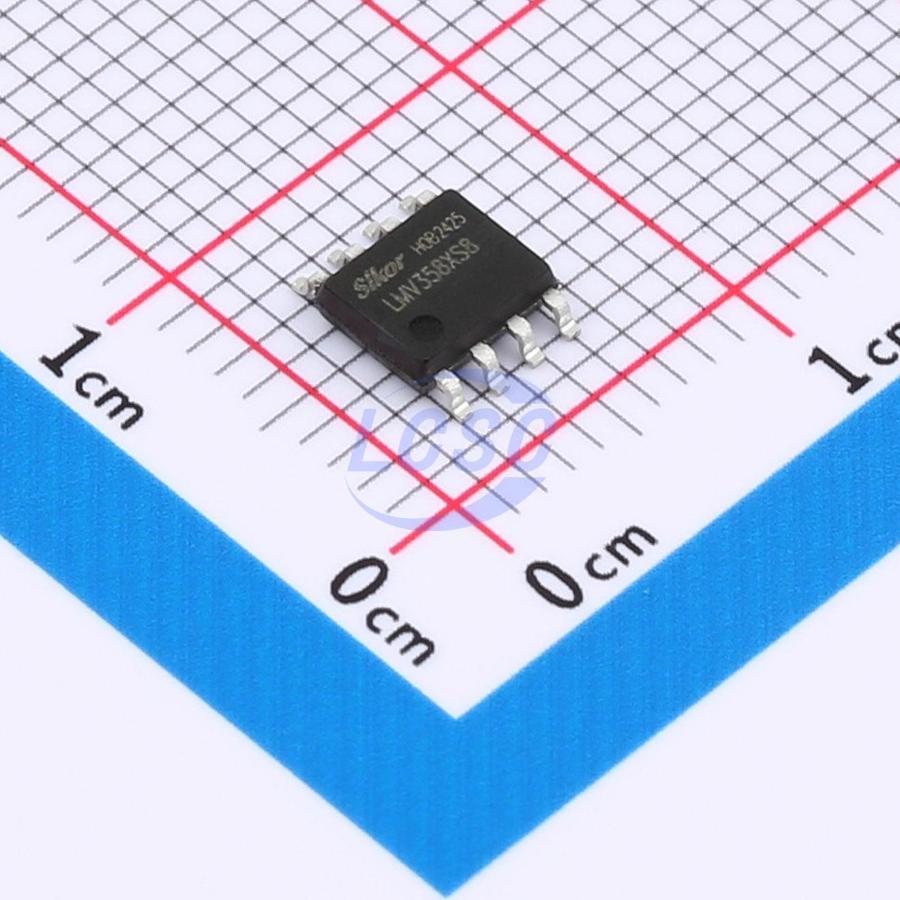

LMV358XS8

40mA 2 4.5mV 800V/ms 1pA 90dB 1MHz 80uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1MHz, General Purpose, RRIO CMOS Amplifiers

Manufacturer: Slkor
Manufacturer part #: LMV358XS8
Store part #: C41369475
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,750 in stock

#C41369475

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.15	₹65.75
50+	₹10.45	₹522.50
150+	₹9.10	₹1,365.00
500+	₹8.08	₹4,040.00
2,500+	₹7.28	₹18,200.00
4,000+	₹6.87	₹27,480.00

Quantity (min 5, multiples of 5)

5 × ₹13.15

₹65.75

excl. GST

₹77.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LMV358XS8

₹65.75 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2.3uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 80uA
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.116 g

Overview

The LMV321 (single), LMV358 (dual) and LMV324 (quad) are general purpose, low offset, high frequency response and micro power operational amplifiers. With an excellent bandwidth of 1MHz, a slew rate of 0.8V/μs, and a quiescent current of 80μA per amplifier at 5V, the LMV321 /358 /324 family can be designed into a wide range of applications. The LMV321 /358 /324 op-amps are designed to provide optimal performance in low voltage and low power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 4.5mV. These parts provide rail-to-rail output swing into heavy loads. The LMV321 /358 /324 family is specified for single or dual power supplies of +1.8V to +5.5V. All models are specified over the extended industrial temperature range of -40 °C to +125 °C. The LMV321 is available in 5-lead SOT-23 and SC70-5 package. The LMV 358 is available in 8-lead SOP package. The LMV324 is available in 14-lead SOP package.

Applications

Smoke/Gas/Environment Sensors
Audio Outputs
Battery and Power Supply Control
Portable Equipment and Mobile Devices
Active Filters
Sensor Interfaces
Battery-Powered Instrumentation
Medical Instrumentation

Key features

General Purpose 1MHz Amplifiers, Low Cost
High Slew Rate: 0.8V/μs
Low Offset Voltage: 4.5 mV Maximum
Low Power: 80μA per Amplifier Supply Current
Settling Time to 0.1% with 2V Step: 4.2 μs
Unit Gain Stable
Rail-to-Rail Input and Output ⪰ Input Voltage Range: -0.1V to +5.1V at 5V Supply
Operating Power Supply: +1.8V to +5.5V
Operating Temperature Range: -40 °C to +125 °C ESD Rating: HBM-4kV, CDM-2kV
