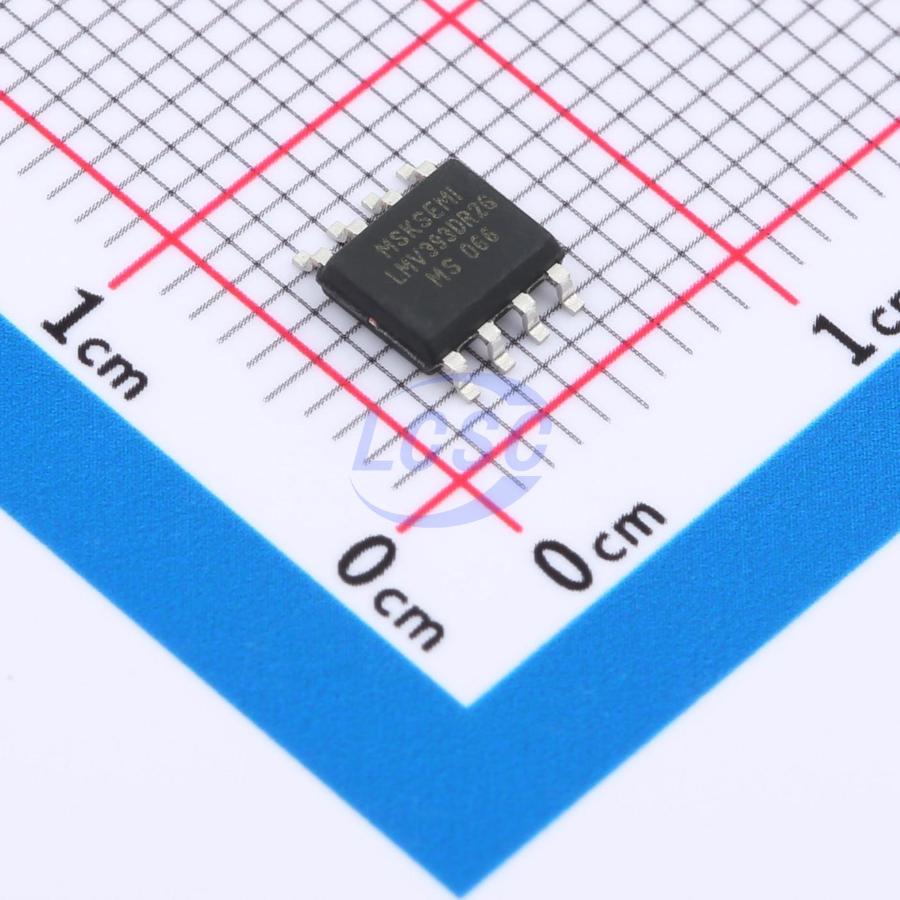

LMV393DR2G(MS)
800uV 2pA 2 SOP-8 Linear Comparators
LMV393DR2G(MS) Dual Comparator: Low-Voltage Operation, Low Power Consumption, and Space-Saving Solution
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV393DR2G(MS)
- Store part #
- C22399591
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,825 in stock
#C22399591
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.05 | ₹70.25 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.64 | ₹1,446.00 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 2,500+ | ₹7.65 | ₹19,125.00 |
| 5,000+ | ₹7.21 | ₹36,050.00 |
5 × ₹14.05
₹70.25
excl. GST
₹82.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV393DR2G(MS)
₹70.25 for 5 + GST
Specifications
- Output Type
- Open-drain
- Quiescent Current
- 50uA
- Output Mode
- CMOS
- Propagation Delay Time
- 460ns
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 800uV
- Ib - Input Bias Current
- 2pA
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Input Offset Current(Ios)
- 1pA
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
The LMV393DR2G (MS) dual comparator version is an open drain output comparator for maximum flexibility. It can operate in the voltage range of 2.1V to 5.5V, and each channel has 50 at low output μ Low power consumption of A (TYPE). The LMV393DR2G (MS) are the most cost - effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The LMV393DR2G (MS) are available in Green SOP - 8 packages. It operates over an ambient temperature range of -40°C to +85°C.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment
- Test and Measurement
Key features
- Supply Range: +2.1V to +5.5V
- Low Supply Current
- 50μA (TYP) per channel at VS = 5V and output low
- Input Common - Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 100mV Typical
- Open - Drain Output for Maximum Flexibility
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOP - 8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV393-MS#C22399592MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 1,420 | ₹13.75 · 1,420 in stock | View |
 | LMV393S-13(MS)#C22459239MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 2,085 | ₹14.05 · 2,085 in stock | View |
 | LMV393IDR(MS)#C22399588MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 110 | ₹14.95 · 110 in stock | View |
