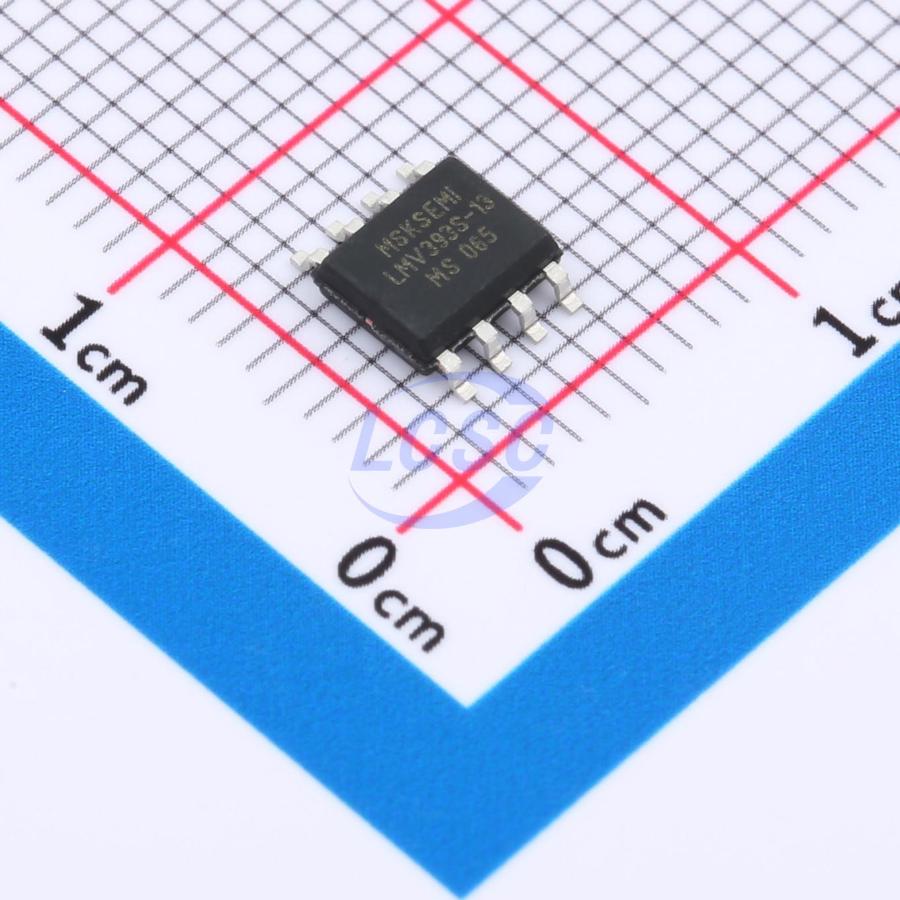

LMV393S-13(MS)
800uV 2pA 2 SOP-8 Linear Comparators
Single-channel and dual-channel comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV393S-13(MS)
- Store part #
- C22459239
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,085 in stock
#C22459239
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.05 | ₹70.25 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.64 | ₹1,446.00 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 2,500+ | ₹7.65 | ₹19,125.00 |
| 5,000+ | ₹7.21 | ₹36,050.00 |
5 × ₹14.05
₹70.25
excl. GST
₹82.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV393S-13(MS)
₹70.25 for 5 + GST
Specifications
- Output Type
- Open-drain
- Quiescent Current
- 50uA
- Output Mode
- CMOS
- Propagation Delay Time
- 460ns
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 800uV
- Ib - Input Bias Current
- 2pA
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Input Offset Current(Ios)
- 1pA
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
The LMV331W5-7(MS) and LMV393S-13(MS) is the single and dual comparator version, and both are open-drain output comparators for maximum flexibility. It can operate from 2.1V to 5.5V, and have low power consuming 50μA (TYP) per channel at output low. The LMV331W5-7(MS), LMV393S-13(MS) are the most cost-effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The LMV331W5-7(MS), LMV393S-13(MS) are available in Green SOT-23-5, SOP-8 packages. It operates over an ambient temperature range of -40°C to +85°C. The LMV3315-7(MS), LMV393S-13(MS) family of comparators can operate up to 5.5V on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications. This is due to its low power and high speed. The open-drain output allows the user to configure the output's logic low voltage (VOL) and can be utilized to enable the comparator to be used in AND functionality.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment
- Test and Measurement
Key features
- Supply Range: +2.1V to +5.5V
- Low Supply Current
- 50μA (TYP) per channel at VS = 5V and output low
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 100mV Typical
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP T 3+125°C Micro SIZE PACKAGES: SOT23-5, SOP-8
