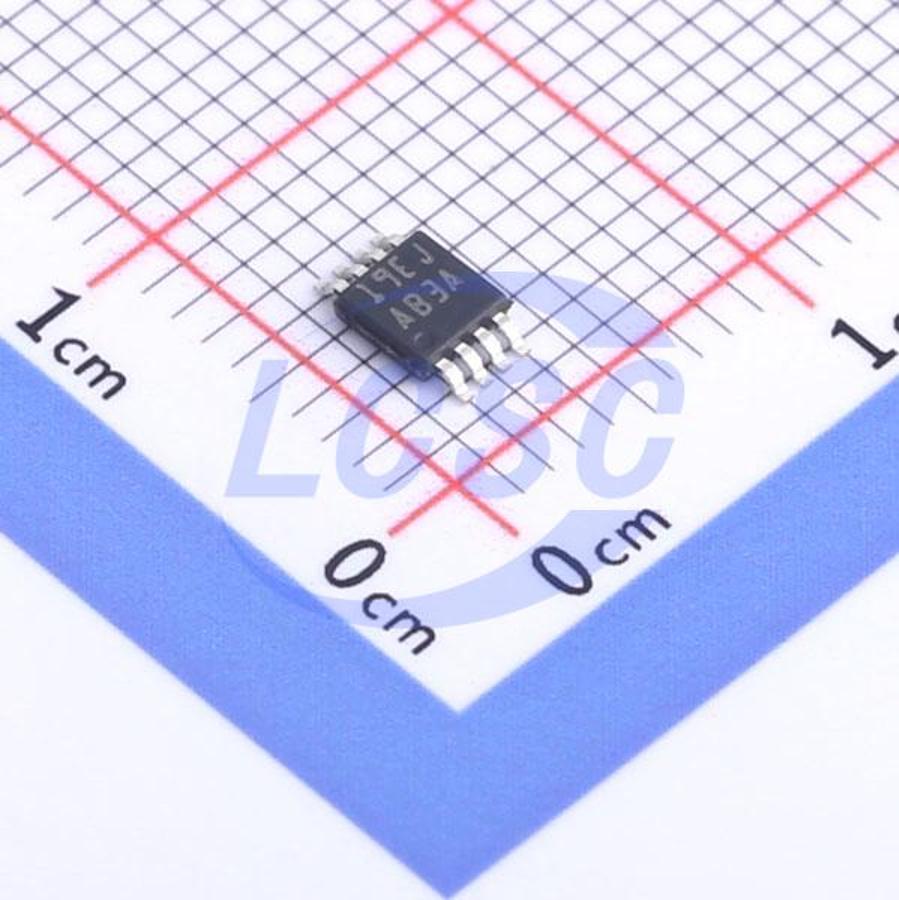

LMV652MMX/NOPB

The LMV65x devices are high-performance, low-power op amp ICs featuring 12MHz bandwidth with only 116μA current consumption, delivering an excellent bandwidth-to-power ratio. Unity-gain stable, they provide an outstanding solution for general-purpose amplification needs in low-voltage, low-power applications. The low-voltage, low-power amplifiers in this series offer superior performance and efficiency in terms of power consumption and space utilization. These op amps feature a maximum input offset voltage of 1.5mV, a rail-to-rail output stage, and an input common-mode voltage range that includes ground. The LMV65x achieves 95dB PSRR, 100dB CMRR, and 0.003% THD at 1kHz with a 2kΩ load. Devices in this series operate over a supply voltage range of 2.7V to 5.5V. These op amps are rated for operation across a wide temperature range (-40°C to 125°C), making them ideal for automotive, sensor, and portable device applications.

Applications

• Portable devices
• Automotive
• Battery-powered systems
• Sensors and instrumentation

Key features

• Typical 5V supply (unless otherwise noted), rated performance at 3V and 5V
• Low supply current:
• LMV651: 116μA
• LMV652: 118μA (per amplifier)
• LMV654: 122μA (per amplifier)
• High unity-gain bandwidth: 12MHz
• Maximum input offset voltage: 1.5mV
• CMRR: 100dB
• PSRR: 95dB
• Input-referred voltage noise: 17nV/√Hz
• Output swing from supply rail with 2kΩ load: 120mV
• Total harmonic distortion: 0.003% at 1kHz, 2kΩ
• Temperature range: -40°C to 125°C
