DOWODatasheet (PDF)

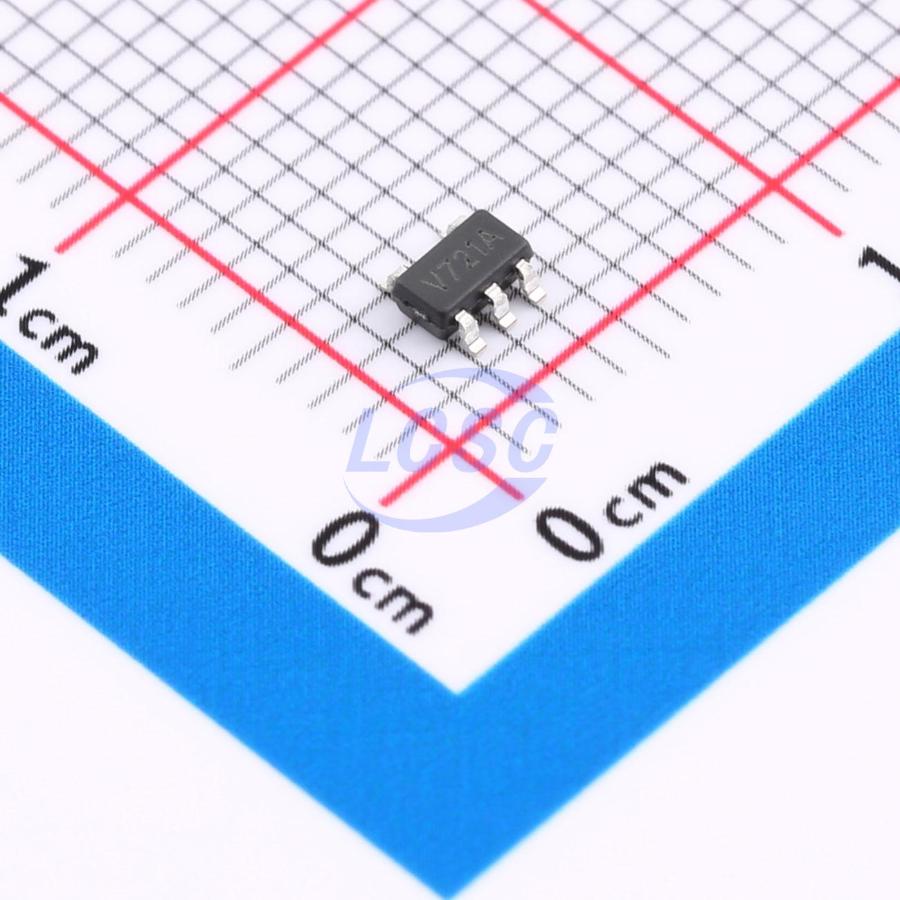

LMV721-DW
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS CompliantActive
10MHz, RRIO, CMOS, Op Amps
- Manufacturer
- DOWO
- Manufacturer part #
- LMV721-DW
- Store part #
- C47355686
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,070 in stock
#C47355686
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.71 | ₹67.10 |
| 100+ | ₹5.25 | ₹525.00 |
| 300+ | ₹4.52 | ₹1,356.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹4.02 | ₹24,120.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹6.71
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721-DW
₹67.10 for 10 + GST
Specifications
- Output Current
- 140mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The LMV721, LMV722, and LMV724 series offer low-voltage operation, rail-to-rail input and output, and an excellent speed-to-power ratio, featuring outstanding bandwidth (10MHz) and slew rate (8.5V/μs). These op-amps are unity-gain stable and feature ultra-low input bias current. At 25°C, Vs = 5V, VCM = Vs/2, the offset voltage is guaranteed no greater than 0.5mV. Operating from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V, this series is ideal for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving ADCs
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±0.5mV max
- Input voltage range: -0.2V to +5.7V at Vs = 5.5V
- Supply range: +2.1V to +5.5V
- Operating temperature range: -40°C to +125°C
- Compact package: SOT23-5
