HANSCHIP semiconductorDatasheet (PDF)

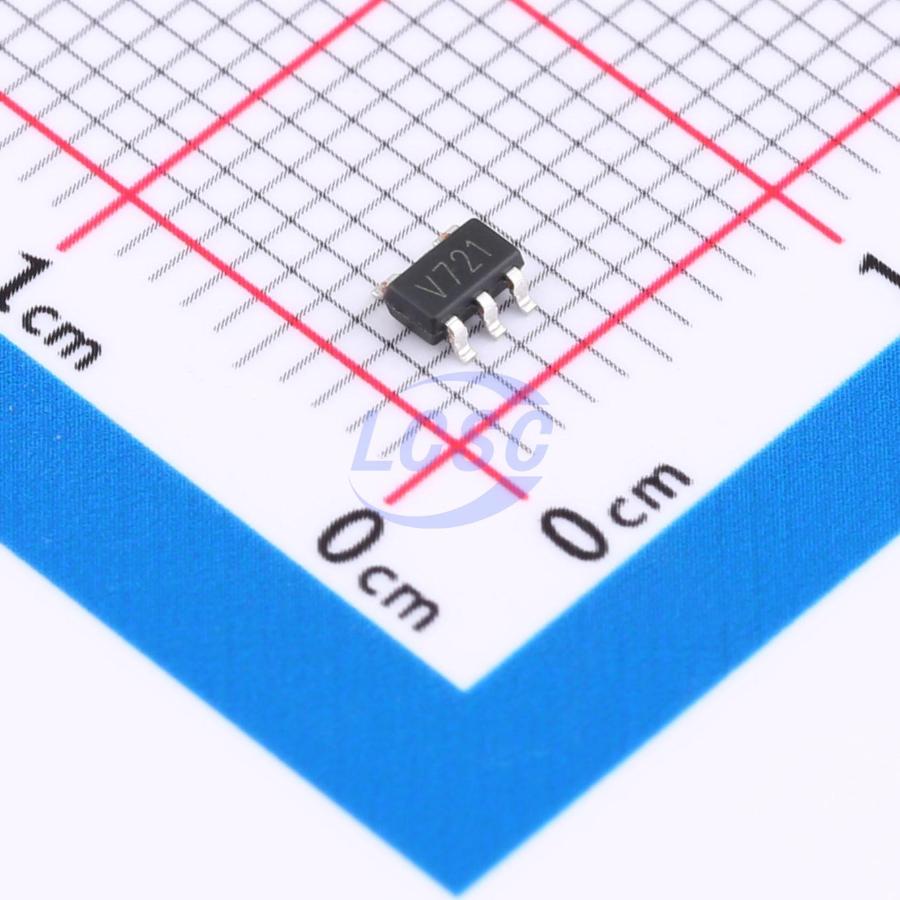

LMV721AIDBVRG
70mA 1 3.5mV 9V/us 1pA 82dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
11MHz CMOS Rail-to-Rail IO Opamps
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LMV721AIDBVRG
- Store part #
- C19723756
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C19723756
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.90 | ₹89.00 |
| 100+ | ₹7.04 | ₹704.00 |
| 300+ | ₹6.11 | ₹1,833.00 |
| 3,000+ | ₹5.41 | ₹16,230.00 |
| 6,000+ | ₹4.86 | ₹29,160.00 |
| 9,000+ | ₹4.58 | ₹41,220.00 |
10 × ₹8.90
₹89.00
excl. GST
₹105.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721AIDBVRG
₹89.00 for 10 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 0.8pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 1.1mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 8nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV721DBVRG#C19723757HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 2,290 | ₹7.47 · 2,290 in stock | View |
