HGSEMIDatasheet (PDF)

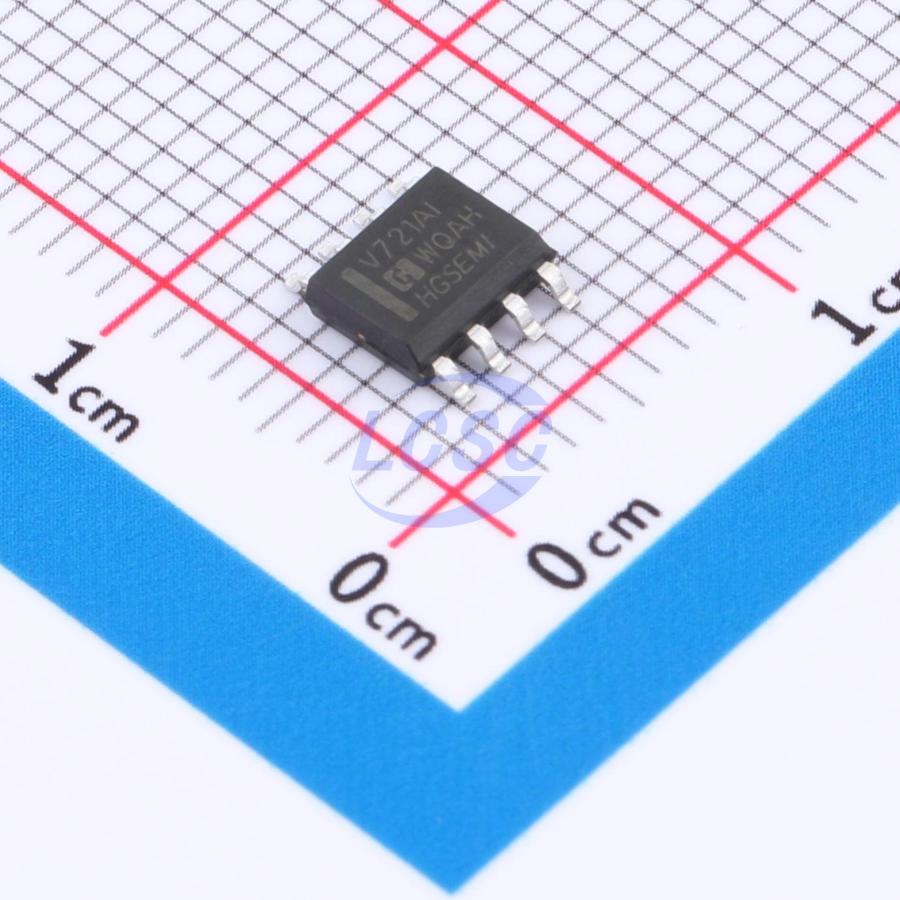

LMV721AIM/TR
140mA 500uV 8.5V/us 1pA 70dB 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV721AIM/TR
- Store part #
- C49384178
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C49384178
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.45 | ₹62.25 |
| 50+ | ₹9.84 | ₹492.00 |
| 150+ | ₹8.55 | ₹1,282.50 |
| 500+ | ₹7.57 | ₹3,785.00 |
| 2,500+ | ₹6.79 | ₹16,975.00 |
| 5,000+ | ₹6.39 | ₹31,950.00 |
5 × ₹12.45
₹62.25
excl. GST
₹73.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV721AIM/TR
₹62.25 for 5 + GST
Specifications
- Output Current
- 140mA
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.077 g
Overview
This series offers low-voltage operation with rail-to-rail input and output, excellent speed-power ratio, outstanding bandwidth (10MHz), and slew rate (8.5V/μs). The op-amps are unity-gain stable with ultra-low input bias current. Offset voltage is low, guaranteed not to exceed 0.5mV at 25°C, Vs=5V, VCM=Vs/2. These op-amps operate from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V. The devices are ideal for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving A/D converters
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±0.5mV max
- Input voltage range: -0.2V to +5.7V (at Vs=5.5V)
- Supply voltage range: +2.1V to +5.5V
- Operating temperature range: -40°C to +125°C
- Compact packages: SOT-23-5, DIP-8, SOP-8, SOP-14, TSSOP-14, MSOP-8, DFN-8 2×2
