HXY MOSFETDatasheet (PDF)

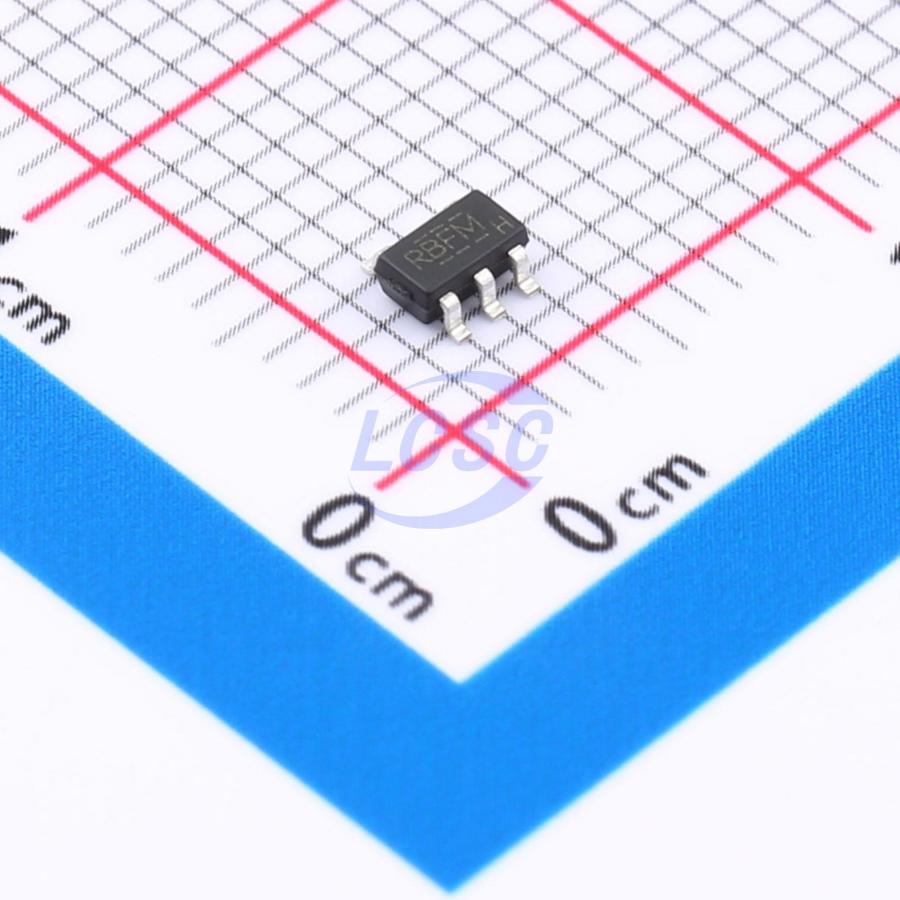

LMV721IDBVR-HXY
40mA 1 3.5mV 6V/us 84dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps
SOT-23-5LRoHSActive
10MHz,RRIO CMOS Operational Amplifiers
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LMV721IDBVR-HXY
- Store part #
- C19626964
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,110 in stock
#C19626964
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.45 | ₹97.25 |
| 50+ | ₹17.03 | ₹851.50 |
| 150+ | ₹16.00 | ₹2,400.00 |
| 500+ | ₹14.70 | ₹7,350.00 |
| 3,000+ | ₹14.12 | ₹42,360.00 |
| 6,000+ | ₹13.77 | ₹82,620.00 |
5 × ₹19.45
₹97.25
excl. GST
₹114.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721IDBVR-HXY
₹97.25 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 1mA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Dual Supply
- -2.25V~-1.25V;1.25V~2.25V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
