JSMSEMIDatasheet (PDF)

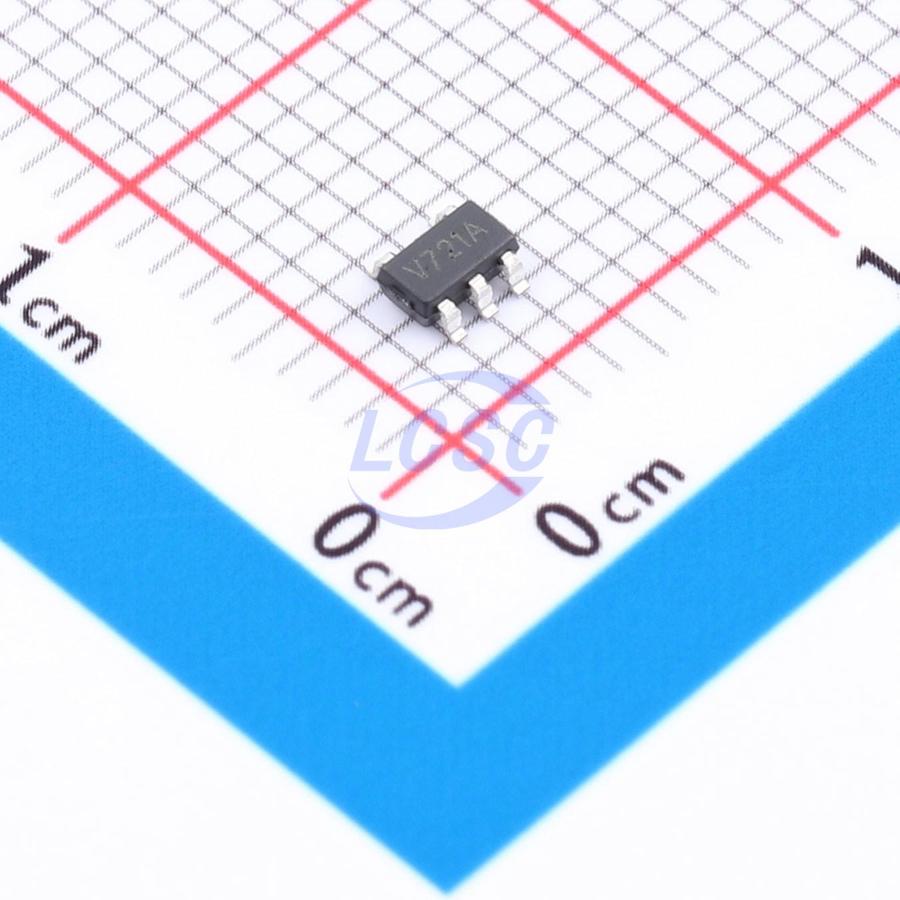

LMV721IDBVR-JSM
150mA 500uV 8.5V/us 1pA 70dB 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LMV721IDBVR-JSM
- Store part #
- C49368228
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,445 in stock
#C49368228
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.56 | ₹42.80 |
| 50+ | ₹7.47 | ₹373.50 |
| 150+ | ₹6.93 | ₹1,039.50 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 3,000+ | ₹6.42 | ₹19,260.00 |
| 6,000+ | ₹6.26 | ₹37,560.00 |
5 × ₹8.56
₹42.80
excl. GST
₹50.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721IDBVR-JSM
₹42.80 for 5 + GST
Specifications
- Output Current
- 150mA
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
This series offers low-voltage operation with rail-to-rail input/output, excellent speed-to-power ratio, outstanding bandwidth (10MHz), and slew rate (8.5V/μs). The op-amp is unity-gain stable with ultra-low input bias current. It features low offset voltage, guaranteed not to exceed 0.5mV at 25°C, Vs = 5V, VCM = Vs/2. The op-amp operates from a 2.1V to 5.5V single supply or ±1.05V to ±2.75V dual supply. This device is ideal for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving ADCs
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±0.5mV max
- Input voltage range: -0.2V to +5.7V at Vs = 5.5V
- Supply range: +2.1V to +5.5V
- Operating temperature range: -40℃ to +125℃
- Miniature package: SOT23-5
