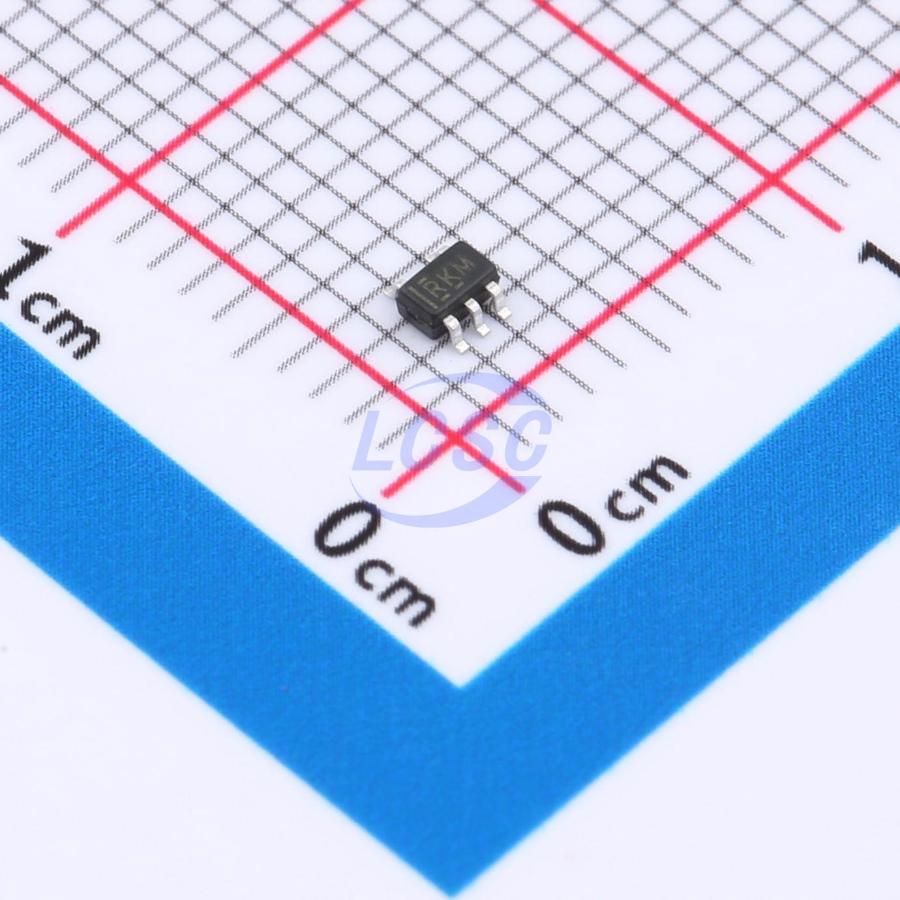

LMV721IDCKR-MS
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SC-70-5
SC-70-5ROHS CompliantActive
Low-voltage operational amplifier with rail-to-rail input and output and excellent speed/power ratio
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV721IDCKR-MS
- Store part #
- C45360159
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C45360159
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.93 | ₹94.65 |
| 50+ | ₹14.71 | ₹735.50 |
| 150+ | ₹12.91 | ₹1,936.50 |
| 500+ | ₹10.65 | ₹5,325.00 |
| 3,000+ | ₹10.16 | ₹30,480.00 |
| 6,000+ | ₹9.55 | ₹57,300.00 |
5 × ₹18.93
₹94.65
excl. GST
₹111.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721IDCKR-MS
₹94.65 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Quiescent Current
- 510uA
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The LMV721/LMV722 series supports low-voltage operation with rail-to-rail input and output, delivering an excellent speed-to-power ratio. At 5.0V supply, the bandwidth is 8MHz, slew rate is 6.5V/μs, and quiescent current per amplifier is 510μA. These op-amps are unity-gain stable and feature ultra-low input bias current. Designed to deliver performance in low-voltage systems, the LMV721/LMV722 provides rail-to-rail input/output with a maximum input offset voltage of 2.5mV. Capacitive load drive capability remains excellent at low supply voltages. Operating voltage range is 2.2V to 5.5V. The LMV721/LMV722 series op-amps are fully specified over the -40°C to +125°C temperature range from a 2.2V to 5.5V single or dual supply.
Applications
- Photodiode amplification
- Active filters and buffers
- Battery-powered electronics
- Sensors
- Cellular and cordless phones
- Test equipment
- Driving ADCs
Key features
- Input offset voltage: 2.5mV (max)
- Low supply current: 510μA (Vs=2.2V)
- Supply voltage range: 2.2V to 5.5V
- Gain bandwidth: 8MHz (Vs=5V)
- Slew rate: 6.5V/μs (Vs=5V)
- Rail-to-rail input and output
- Low cost
- Compact packages: LMV721IDCKR-MS: SC70-5; LMV721IDBVR-MS: SOT23-5; LMV722IDR-MS: SOP-8; LMV722IDGKR-MS: MSOP-8
