TECH PUBLICDatasheet (PDF)

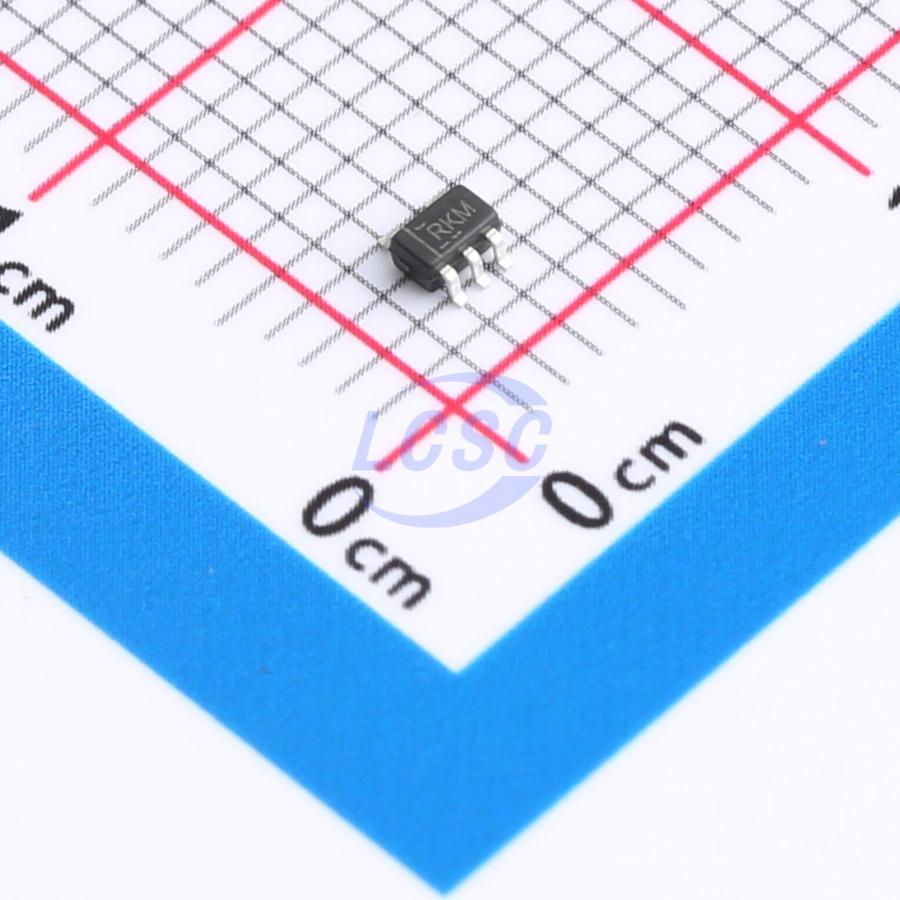

LMV721IDCKR-TP
26mA 2.5mV 6V/us 95dB 10pA 510uA 8MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-353 Instrumentation, Op Amps, Buffer Amps
SOT-353RoHSActive
8-MHz Rail-to-Rail I/O OPERATIONAL AMPLIFIERS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LMV721IDCKR-TP
- Store part #
- C46472223
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C46472223
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.89 | ₹79.45 |
| 50+ | ₹13.94 | ₹697.00 |
| 150+ | ₹13.11 | ₹1,966.50 |
| 500+ | ₹12.07 | ₹6,035.00 |
| 3,000+ | ₹11.60 | ₹34,800.00 |
| 6,000+ | ₹11.32 | ₹67,920.00 |
5 × ₹15.89
₹79.45
excl. GST
₹93.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721IDCKR-TP
₹79.45 for 5 + GST
Specifications
- Output Current
- 26mA
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Quiescent Current
- 510uA
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz), a slew rate of 6.5V/μs, and a quiescent current of 510μA/amplifier at 5V. The op-amps are unity gain stable and feature an ultra-low input bias current. They are designed to provide optimal performance in low-voltage systems. They provide rail-to-rail I/O, and the maximum input offset voltage are 2.5mV for the devices. Their capacitive load capability is also good at low supply voltages.
Applications
- Temperature Sensors
- Battery-Powered Instruments
- Smoke/Gas/Environment Sensors
- Medical Equipment
- Portable Instruments and Mobile Device
- Active Filters
- Piezo Electrical Transducer Amplifier
- Sensor Interface
- Handheld Test Equipment
Key features
- Supply Range: 2.2V to 5.5V
- Supply Current: 510μA/ch
- Input Offset Voltage: 2.5mV (MAX)
- Gain Bandwidth: 8MHz
- Rail-to-Rail Input and Output
- Slew rate: 6.5V/μs
- Operating Temperature: -40°C to +85°C
- Type Package: SOT353
