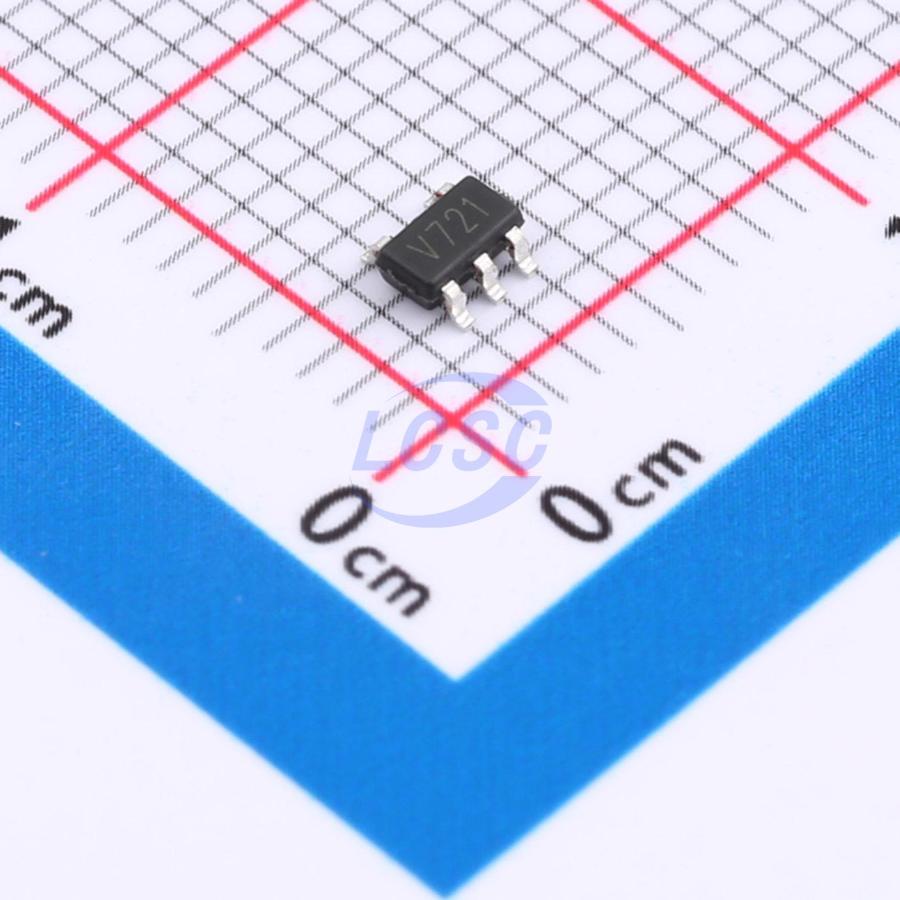

LMV721M5/TR
70mA 1 3.5mV 9V/us 1pA 64dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
11MHz CMOS Rail-to-Rail IO Opamps
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV721M5/TR
- Store part #
- C7432207
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,735 in stock
#C7432207
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.45 | ₹127.25 |
| 50+ | ₹19.98 | ₹999.00 |
| 150+ | ₹17.64 | ₹2,646.00 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 3,000+ | ₹13.42 | ₹40,260.00 |
| 6,000+ | ₹12.63 | ₹75,780.00 |
5 × ₹25.45
₹127.25
excl. GST
₹150.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV721M5/TR
₹127.25 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 64dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 1.1mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 8nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV721AM5/TR#C725344HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 15 | ₹25.51 · 15 in stock | View |
 | HGV6021M5/TR#C7432313HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,975 | ₹20.52 · 2,975 in stock | View |
 | AD8605M5/TR#C41415983HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 1,192 | ₹66.68 · 1,192 in stock | View |
 | MCP621M5/TR-HG#C54540199HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,960 | ₹56.44 · 2,960 in stock | View |
 | OPA322M5/TR-HG#C54540200HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,965 | ₹56.44 · 2,965 in stock | View |
