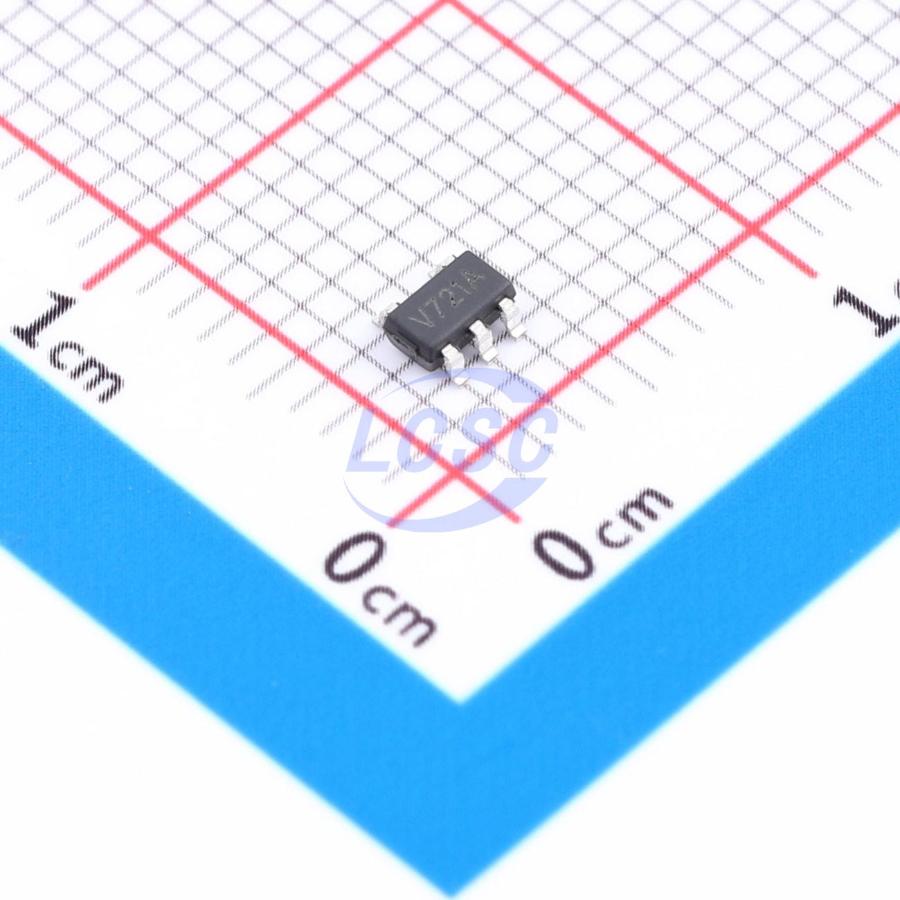

LMV721M5X-JSM

140mA 500uV 8.5V/us 1pA 70dB 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: LMV721M5X-JSM
Store part #: C49367660
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,455 in stock

#C49367660

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹8.84	₹44.20
50+	₹7.75	₹387.50
150+	₹7.21	₹1,081.50
500+	₹6.80	₹3,400.00
3,000+	₹6.47	₹19,410.00
6,000+	₹6.31	₹37,860.00

Quantity (min 5, multiples of 5)

5 × ₹8.84

₹44.20

excl. GST

₹52.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV721M5X-JSM

₹44.20 for 5 + GST

Specifications

Output Current: 140mA
Vos - Input Offset Voltage: 500uV
Slew Rate: 8.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.6uV/℃
Quiescent Current: 400uA
Gain Bandwidth Product: 10MHz
Input Voltage Noise Density: 9.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

This op-amp features low-voltage operation with rail-to-rail input and output, delivering an excellent speed/power ratio with 10MHz bandwidth and 8.5V/μs slew rate. It is unity-gain stable with ultra-low input bias current. The offset voltage is low, guaranteed not to exceed 0.5mV at 25℃, Vs = 5V, VCM = Vs/2. Operates from a 2.1V to 5.5V single supply or ±1.05V to ±2.75V dual supply.
