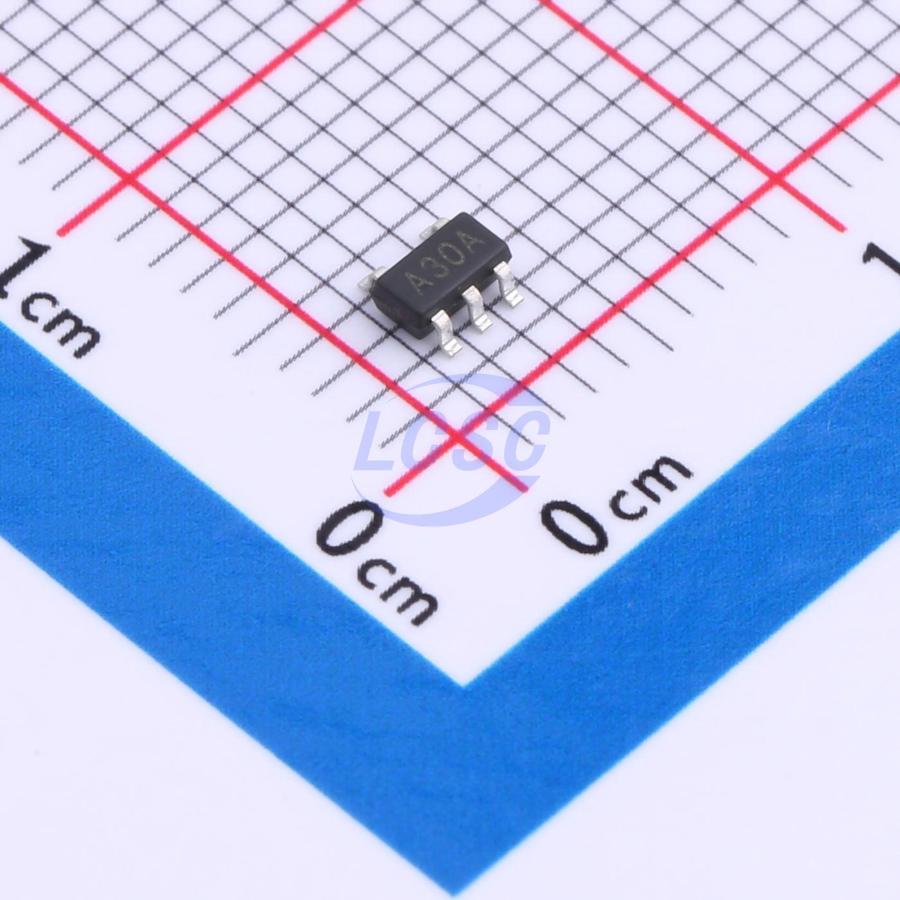

LMV721M5X-P

50mA 2 5mV 4.5V/us 100pA 80dB 800uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

10MHz, Low Power, CMOS Rail-to-Rail Operational Amplifier

Manufacturer: TECH PUBLIC
Manufacturer part #: LMV721M5X-P
Store part #: C2923364
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,968 in stock

#C2923364

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹59.55	₹59.55
10+	₹47.38	₹473.80
30+	₹42.38	₹1,271.40
100+	₹35.87	₹3,587.00
500+	₹29.78	₹14,890.00
1,000+	₹28.03	₹28,030.00

Quantity (min 1)

1 × ₹59.55

₹59.55

excl. GST

₹70.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV721M5X-P

₹59.55 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 6uV/℃
Quiescent Current: 800uA
Gain Bandwidth Product: 10MHz
Features: Enable/shutdown function;Built-in compensation
Input Voltage Noise Density: 15nV/√Hz@30kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The LMV721 is wideband, low-noise, low-distortion dual operational amplifier, that offer rail-to-rail inputs/ outputs and single supply operation down to 2.2V. They draw 1.6mA of quiescent supply current while featuring ultra-low distortion 0.0002% THD+N, as well as low input voltage noise density (15nV/Hz) and low input current noise density (0.5fA/Hz). These features make the devices an ideal choice for applications that require low distortion and/or low noise. These amplifiers have inputs and outputs which swing rail-to rail and their input common mode voltage range includes ground. The maximum input offset of these amplifiers is less than 5mV. The LMV721 are unity gain stable with a gain-bandwid of 10MHz. The LMV721 is available in SOT23-5 packages. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.
