ShikuesDatasheet (PDF)

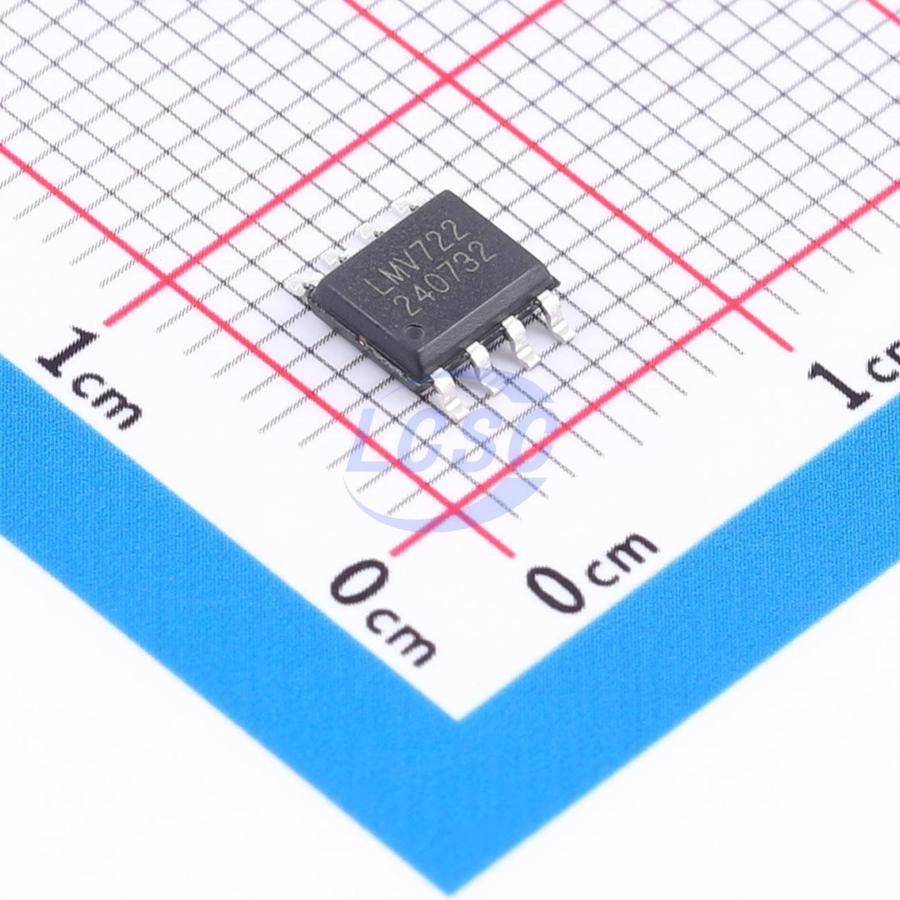

LMV722-P8
140mA 200uV 8.5V/us 70dB 1pA 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- Shikues
- Manufacturer part #
- LMV722-P8
- Store part #
- C53467542
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,430 in stock
#C53467542
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.24 | ₹66.20 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.17 | ₹1,375.50 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 2,500+ | ₹7.33 | ₹18,325.00 |
| 4,000+ | ₹6.92 | ₹27,680.00 |
5 × ₹13.24
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LMV722-P8
₹66.20 for 5 + GST
Specifications
- Output Current
- 140mA
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
The LMV721, LMV722, and LMV724 series offer low-voltage operation, rail-to-rail input and output, and an excellent speed-to-power ratio, featuring outstanding bandwidth (10MHz) and slew rate (8.5V/μs). These op-amps are unity-gain stable and exhibit ultra-low input bias current. The LMV721, LMV722, and LMV724 feature low offset voltage, guaranteed not to exceed 0.5mV at 25℃, VS = 5V, VCM = VS/2. The LMV721, LMV722, and LMV724 series op-amps operate from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V. These devices are well suited for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving A/D converters
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±3mV max
- Input voltage range: -0.2V to 5.7V at VS = 5.5V
- Supply range: 2.1V to 5.5V
- Operating temperature range: -40℃ to 125℃
- Package: SOT-23-5/SOP-8/SOP-14
