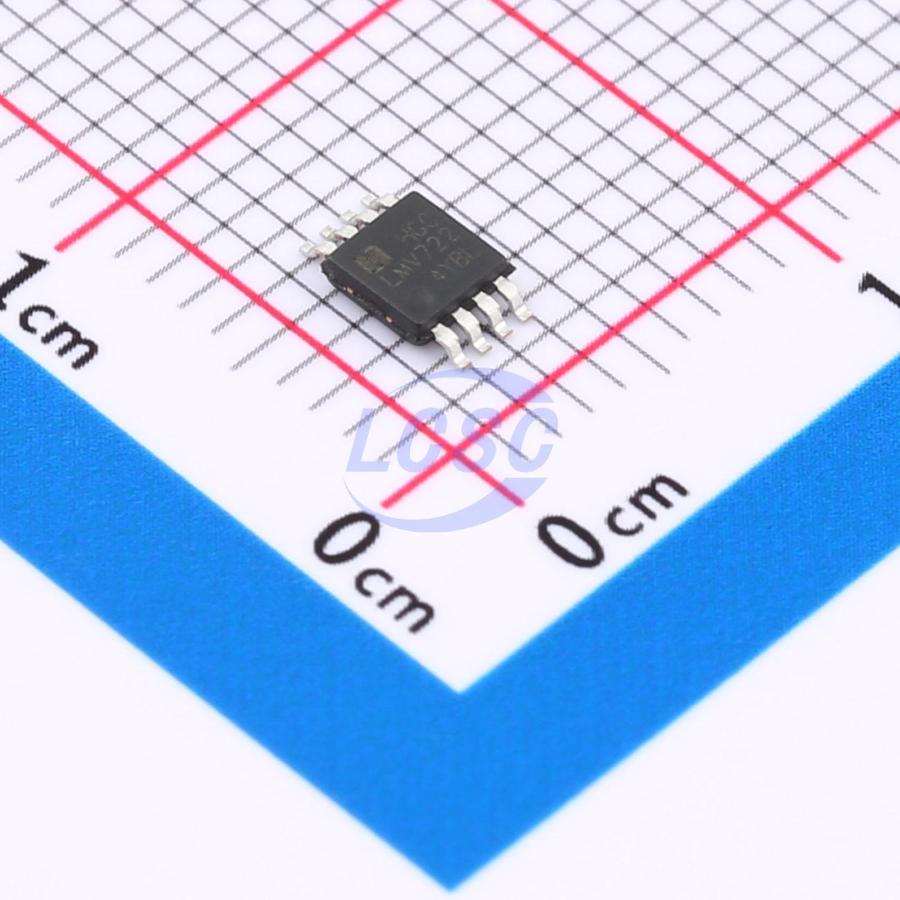

LMV722DGKRG

70mA 2 3.5mV 9V/us 1pA 82dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

11MHz CMOS Rail-to-Rail IO Opamps

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LMV722DGKRG
Store part #: C19723758
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,075 in stock

#C19723758

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.90	₹89.50
50+	₹15.62	₹781.00
150+	₹14.66	₹2,199.00
500+	₹13.44	₹6,720.00
3,000+	₹12.90	₹38,700.00
6,000+	₹12.58	₹75,480.00

Quantity (min 5, multiples of 5)

5 × ₹17.90

₹89.50

excl. GST

₹105.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV722DGKRG

₹89.50 for 5 + GST

Specifications

Output Current: 70mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 1.1mA
Gain Bandwidth Product: 11MHz
Input Voltage Noise Density: 8nV/√Hz@10kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.187 g

Overview

The LMV72X series op-amps feature an 11MHz gain bandwidth product, 9V/μs slew rate, and 1.1mA quiescent current per amplifier at 5V. The LMV721N includes a shutdown function that reduces supply current to 90nA. This series is designed to deliver superior performance in low-voltage, low-noise systems, capable of driving heavy loads with rail-to-rail output swing. The input common-mode voltage range includes ground, and the maximum input offset voltage of the LMV72X is 3.5mV. The devices operate over an extended industrial temperature range (-40°C ~ +125°C) with a supply voltage range of 2.1V to 5.5V. The LMV721 single op-amp is available in green SC70-5, SOT23-5, SOP-8, and MSOP-8 packages. The LMV722 dual op-amp is available in green SOP-8 and MSOP-8 packages. The LMV724 quad op-amp is available in green SOP-14 and TSSOP-14 packages. The LMV721N single op-amp with shutdown is available in green SOT23-6 and SC70-6 packages.

Applications

Sensors
Active filters
Cellular and cordless phones
Laptops and PDAs
Audio equipment
Handheld test equipment
Battery-powered instruments
A/D converters

Key features

Single-supply operating voltage range: +2.1V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 11MHz (typical)
Low input bias current: 1pA (typical)
Low offset voltage: 3.5mV (maximum)
High slew rate: 9V/μs
Settling time to 0.1% accuracy with 2V step input: 0.3μs
Low noise: 8nV/√Hz @10kHz
Quiescent current: 1.1mA per amplifier (typical)
Operating temperature range: -40°C ~ +125°C
Small form factor packages: LMV721 available in SOT23-5, SC70-5, SOP-8, and MSOP-8; LMV722 available in SOP-8 and MSOP-8; LMV724 available in SOP-14 and TSSOP-14; LMV721N available in SOT23-6 and SC70-6.
