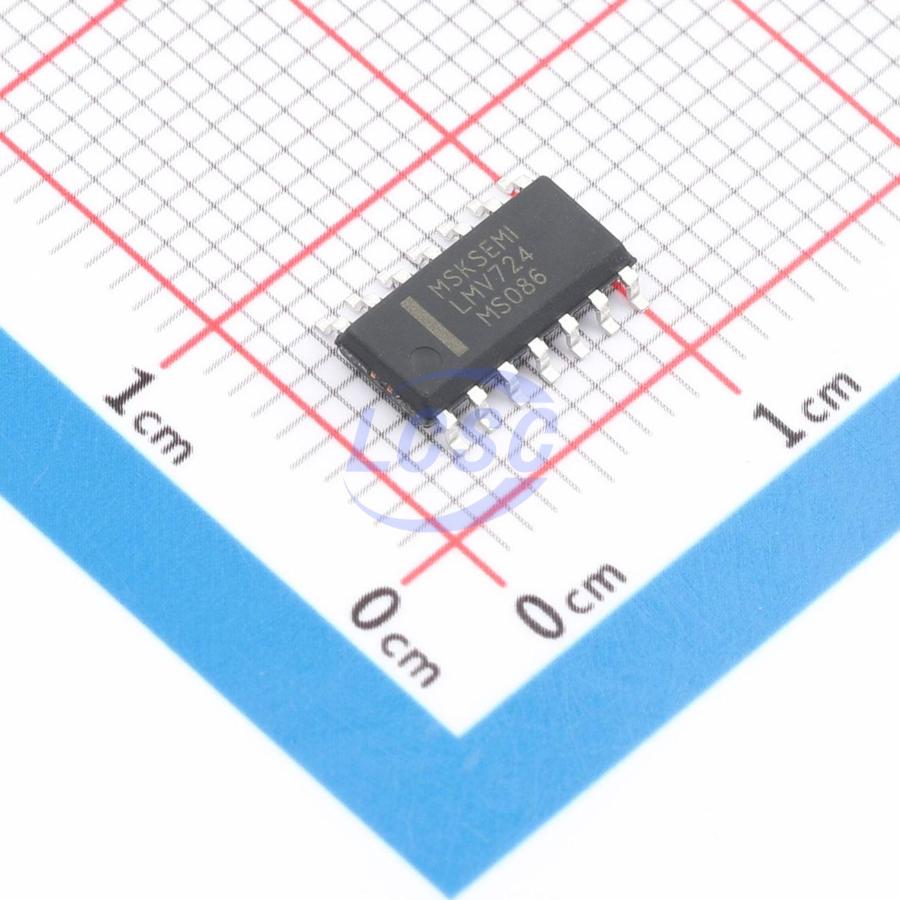

LMV724-MS
1nA 150uA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Audio Amplifiers
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV724-MS
- Store part #
- C54539957
- Package / case
- SOP-14
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C54539957
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.28 | ₹116.40 |
| 50+ | ₹18.44 | ₹922.00 |
| 150+ | ₹16.37 | ₹2,455.50 |
| 500+ | ₹13.79 | ₹6,895.00 |
| 2,500+ | ₹12.63 | ₹31,575.00 |
| 5,000+ | ₹11.93 | ₹59,650.00 |
5 × ₹23.28
₹116.40
excl. GST
₹137.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV724-MS
₹116.40 for 5 + GST
Specifications
- number of channels
- 4
- Ib - Input Bias Current
- 1nA
- Operating Temperature
- -40℃~+85℃
- Input Offset Current(Ios)
- 30pA
- Vos - Input Offset Voltage
- 2mV
- Output Current
- 20mA
- Common Mode Rejection Ratio (CMRR)
- 100dB
- Quiescent Current
- 150uA
- Gain Bandwidth Product
- 11MHz
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Single Supply
- 2.2V~5.5V
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Slew Rate
- 10V/us
- Noise density(eN)
- 61nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.277 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV9064IDR-MS#C54539964MSKSEMI · SOP-14 | MSKSEMI | SOP-14 | 2,430 | ₹43.96 · 2,430 in stock | View |
 | MCP6024T-I/SL-MS#C54539958MSKSEMI · SOP-14 | MSKSEMI | SOP-14 | 2,310 | ₹45.51 · 2,310 in stock | View |
