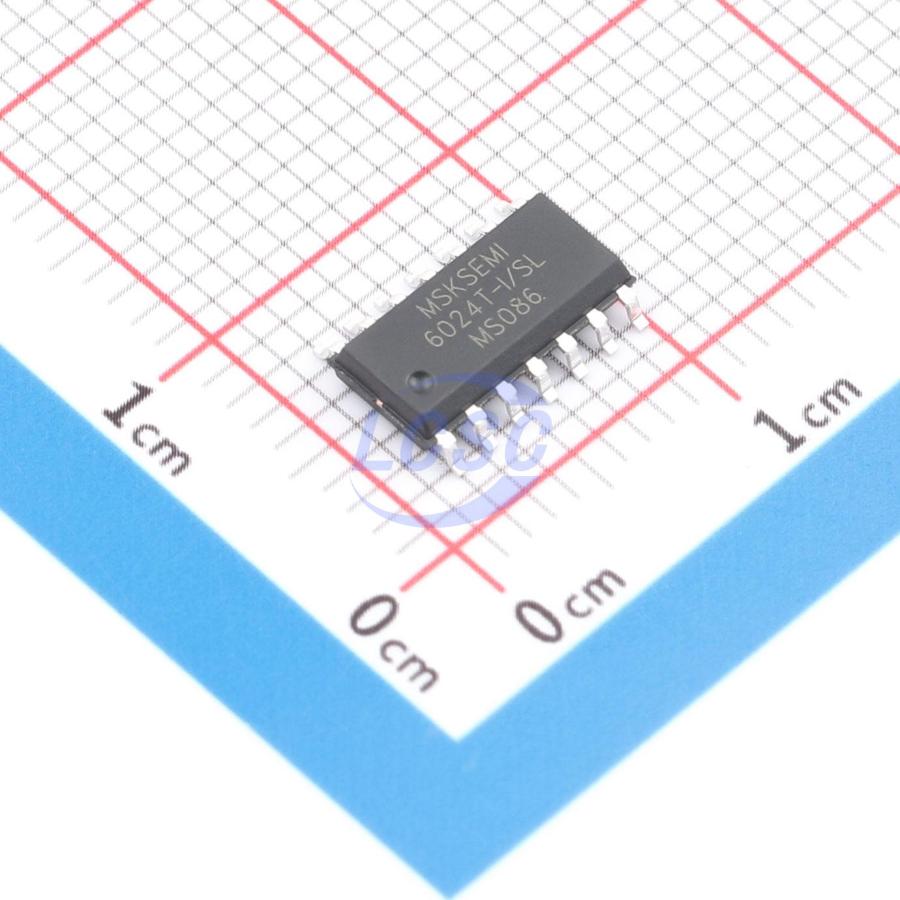

MSKSEMI

MCP6024T-I/SL-MS

400pA 300uA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Audio Amplifiers

SOP-14RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MCP6024T-I/SL-MS
Store part #: C54539958
Package / case: SOP-14
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,310 in stock

#C54539958

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹45.51	₹227.55
50+	₹36.05	₹1,802.50
150+	₹32.00	₹4,800.00
500+	₹26.94	₹13,470.00
2,500+	₹24.69	₹61,725.00
5,000+	₹23.34	₹1,16,700.00

Quantity (min 5, multiples of 5)

5 × ₹45.51

₹227.55

excl. GST

₹268.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MCP6024T-I/SL-MS

₹227.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

number of channels: 4
Ib - Input Bias Current: 400pA
Operating Temperature: -40℃~+85℃
Input Offset Current(Ios): 30pA
Vos - Input Offset Voltage: 2.5mV
Output Current: 70mA
Common Mode Rejection Ratio (CMRR): 95dB
Quiescent Current: 300uA
Gain Bandwidth Product: 11MHz
Input Offset Voltage Drift(Vos TC): 600nV/℃
Single Supply: 2.2V~5.5V
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Slew Rate: 10V/us
Noise density(eN): 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.267 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TLV9064IDR-MS#C54539964MSKSEMI · SOP-14	MSKSEMI	SOP-14	2,430	₹43.96 · 2,430 in stock	View
	LMV724-MS#C54539957MSKSEMI · SOP-14	MSKSEMI	SOP-14	2,485	₹23.28 · 2,485 in stock	View
