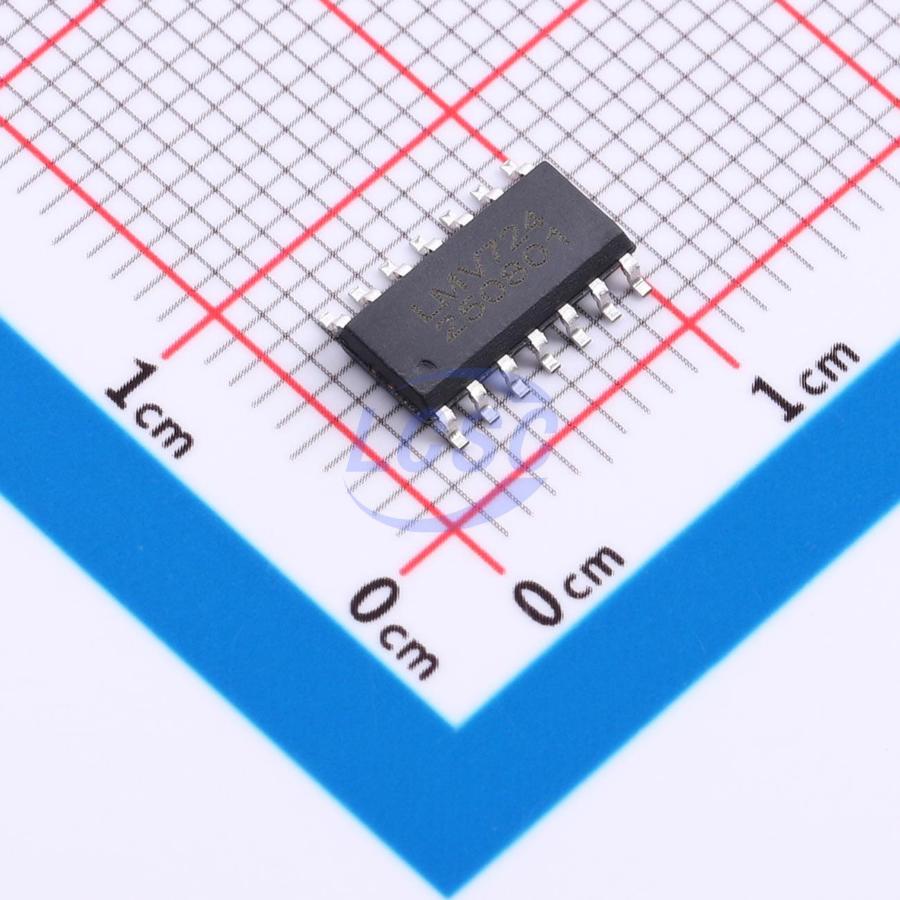

LMV724-SOP-14
140mA 300uV 8.5V/us 1pA 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- DDF
- Manufacturer part #
- LMV724-SOP-14
- Store part #
- C53199177
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C53199177
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.27 | ₹116.35 |
| 50+ | ₹18.19 | ₹909.50 |
| 150+ | ₹16.02 | ₹2,403.00 |
| 500+ | ₹13.31 | ₹6,655.00 |
| 2,500+ | ₹12.11 | ₹30,275.00 |
| 5,000+ | ₹11.38 | ₹56,900.00 |
5 × ₹23.27
₹116.35
excl. GST
₹137.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV724-SOP-14
₹116.35 for 5 + GST
Specifications
- Output Current
- 140mA
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The LMV721, LMV722, and LMV724 series offer low-voltage operation, rail-to-rail input and output, and an excellent speed-to-power ratio, with outstanding bandwidth (10MHz) and slew rate (8.5V/μs). These op-amps are unity-gain stable and feature ultra-low input bias current. At 25°C, Vs = 5V, and VCM = Vs / 2, the offset voltage is guaranteed to be no greater than 0.5mV. The series operates from a 2.1V to 5.5V single supply or ±1.05V to ±2.75V dual supply, making it ideal for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving ADCs
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±3mV max
- Input voltage range: -0.2V to +5.7V at Vs = 5.5V
- Supply range: +2.1V to +5.5V
- Operating temperature range: -40°C ~ +125°C
- Miniature package: SOT23-5
