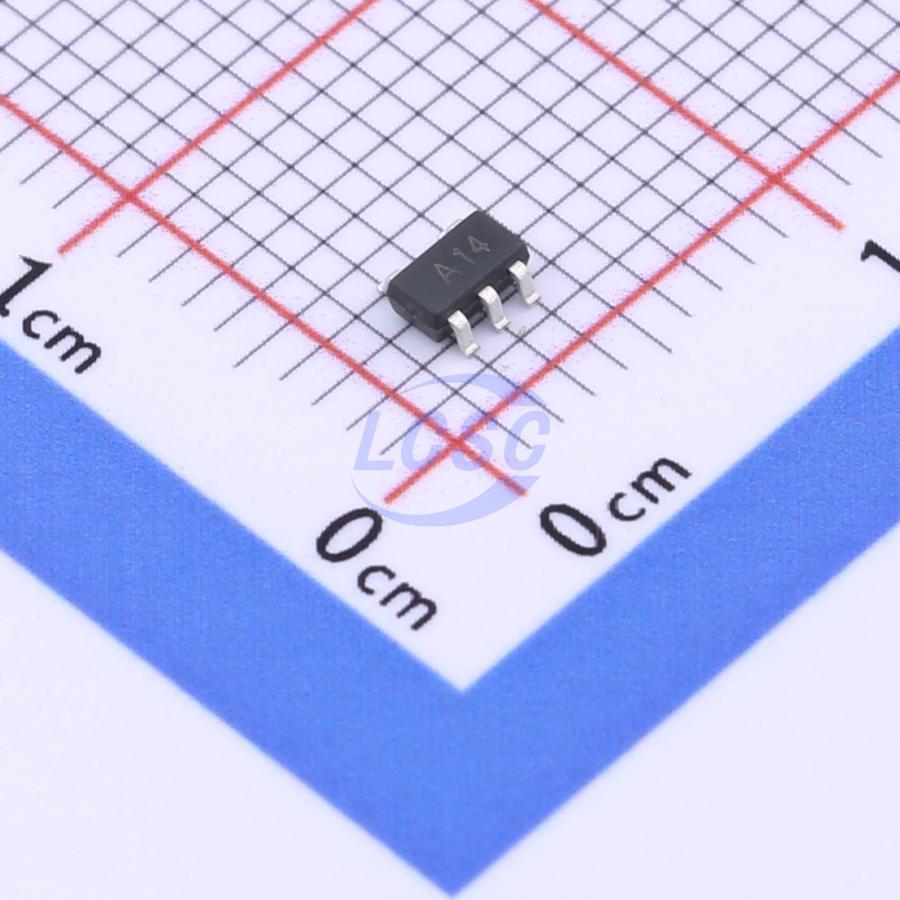

LMV821AM5/TR

53mA 1 1mV 1.9V/us 90nA 85dB 470uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

6MHZ CMOS Rail-to-Rail IO Opamps

Manufacturer: HGSEMI
Manufacturer part #: LMV821AM5/TR
Store part #: C725345
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,950 in stock

#C725345

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.21	₹121.05
50+	₹19.30	₹965.00
150+	₹17.19	₹2,578.50
500+	₹14.57	₹7,285.00
3,000+	₹12.08	₹36,240.00
6,000+	₹11.38	₹68,280.00

Quantity (min 5, multiples of 5)

5 × ₹24.21

₹121.05

excl. GST

₹142.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV821AM5/TR

₹121.05 for 5 + GST

Specifications

Output Current: 53mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 1.9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 90nA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 470uA
Gain Bandwidth Product: 6MHz
Input Voltage Noise Density: 42nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The LMV82X features a 6MHz gain bandwidth product, 4.2V/µs slew rate, and 470µA quiescent current per amplifier at 5V. The LMV82X is designed to provide optimal performance in low-voltage and low-noise systems. They deliver rail-to-rail output swing for heavy loads. The input common-mode voltage range includes ground, and the LMV82X has a maximum input offset voltage of 3.5mV. They are fully specified over the extended industrial temperature range (-40℃ ~ +125℃). The operating voltage range is 2.1V ~ 5.5V. The LMV821 single-channel amplifier is available in green SC70-5, SOT23-5, and SOP-8 packages. The LMV822 dual-channel amplifier is available in green SOP-8 and MSOP-8 packages. The LMV824 quad-channel amplifier is available in green SOP-14 and TSSOP-14 packages.

Applications

Sensors
Active filters
Cellular and cordless phones
Notebooks and PDAs
Audio
Handheld test equipment
Battery-powered instruments
A/D converters

Key features

Single-supply operation, voltage range +2.1V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 6MHz (typical)
Low input bias current: 1pA (typical)
Low offset voltage: 3.5mV (maximum)
Quiescent current: 470µA per amplifier (typical)
Operating temperature: -40℃ ~ +125℃
Small packages:
LMV821A available in SOT-23-5, SOP-8, and SC70-5
LMV822 available in SOP-8 and MSOP-8
LMV824 available in SOP-14 and TSSOP-14
