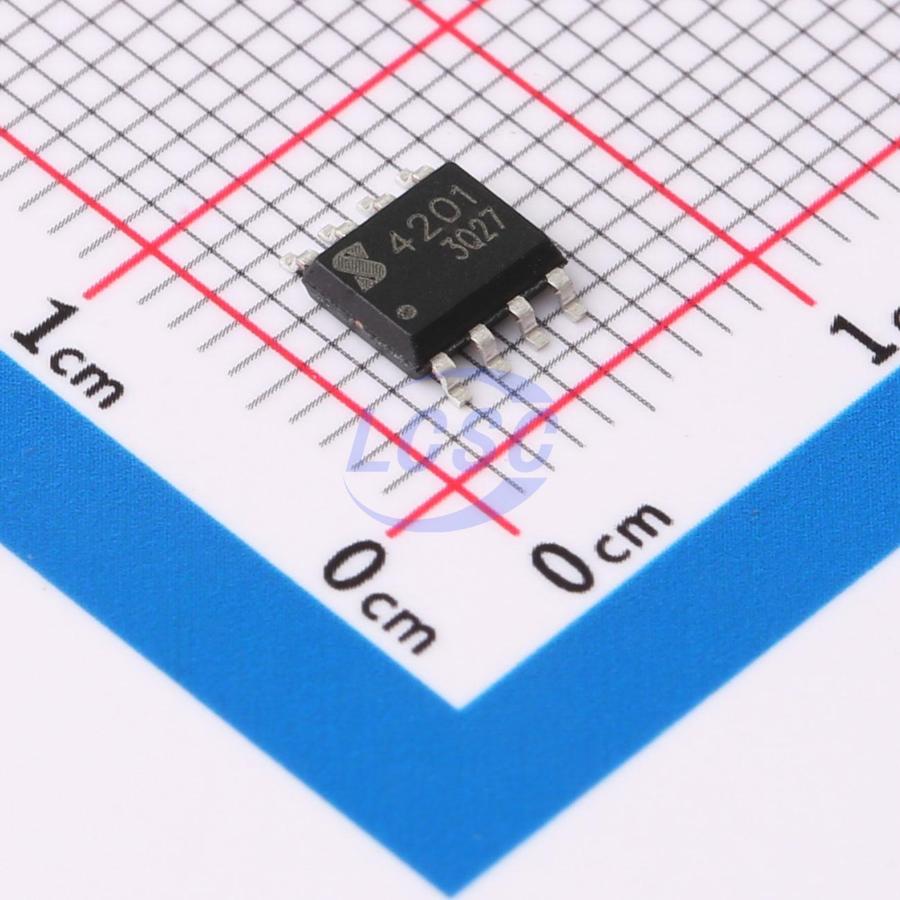

LN4201SF-G
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
700V integrated bootstrap high-power high-side and low-side motor driver chip
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LN4201SF-G
- Store part #
- C17701718
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,005 in stock
#C17701718
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.56 | ₹142.80 |
| 50+ | ₹24.94 | ₹1,247.00 |
| 150+ | ₹23.38 | ₹3,507.00 |
| 500+ | ₹21.43 | ₹10,715.00 |
| 2,500+ | ₹20.57 | ₹51,425.00 |
| 4,000+ | ₹20.06 | ₹80,240.00 |
5 × ₹28.56
₹142.80
excl. GST
₹168.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LN4201SF-G
₹142.80 for 5 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Overcurrent Protection;Built-in bootstrap diode;Charge pump boost
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.109 g
Overview
The LN4201 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC designed for high-speed hair dryer motors. It features independent high-side and low-side referenced output channels. Using a high-low voltage compatible process, the high- and low-side gate drive circuits are integrated in a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 700V. Housed in an SOP-8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- High-speed hair dryer motor chip
- Air conditioner/washing machine
- General-purpose inverter
- Inverter drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching 50ns
- Wide temperature range -40°C to 125°C
- Output source/sink current capability 300mA/600mA
- RoHS compliant
- SOP-8
