NATLINEARDatasheet (PDF)

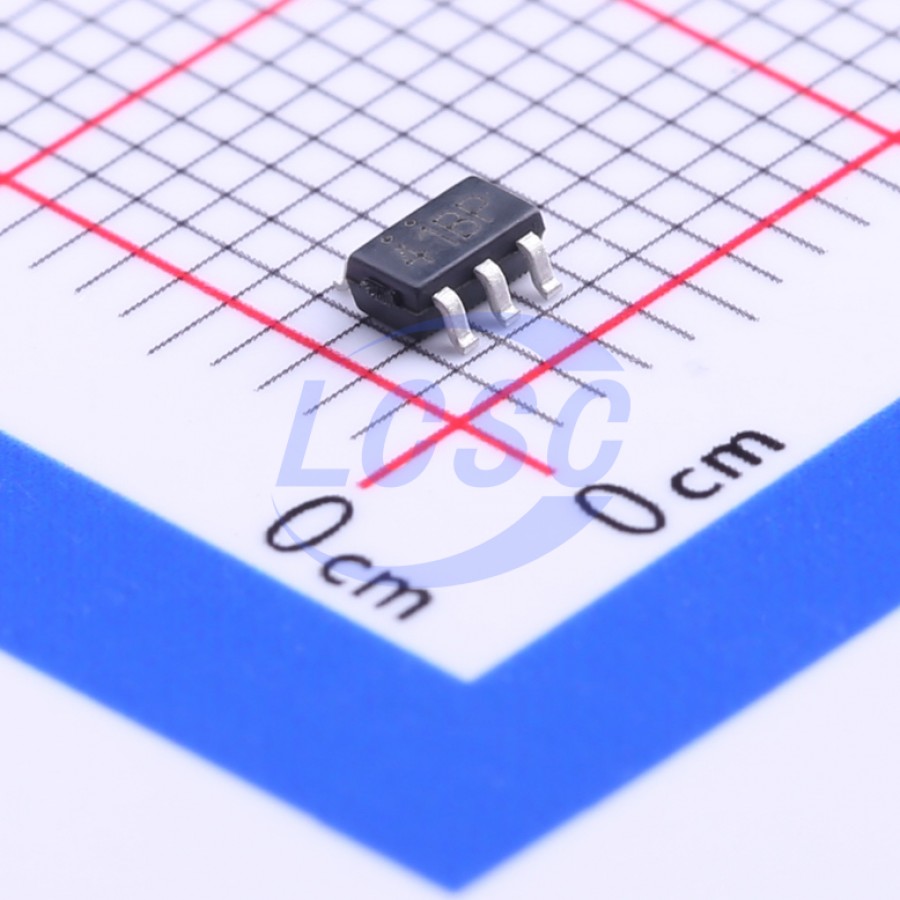

LN8541MR-G
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS CompliantActive
1.1MHz rail-to-rail input/output CMOS operational amplifier
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN8541MR-G
- Store part #
- C153215
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C153215
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.93 | ₹79.65 |
| 50+ | ₹12.85 | ₹642.50 |
| 150+ | ₹11.30 | ₹1,695.00 |
| 500+ | ₹10.15 | ₹5,075.00 |
| 3,000+ | ₹8.24 | ₹24,720.00 |
| 6,000+ | ₹7.78 | ₹46,680.00 |
5 × ₹15.93
₹79.65
excl. GST
₹93.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN8541MR-G
₹79.65 for 5 + GST
Specifications
- Output Current
- 23mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 52V/ms
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 88dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 42uA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The LN8541 (single-channel) is a low-cost, rail-to-rail input/output, voltage feedback amplifier. It offers a wide common-mode input voltage range and output voltage swing, with a minimum operating voltage of 2.1V and a maximum of 5.5V. Its temperature range exceeds the industrial standard: -40°C to +125°C. The LN8541 delivers up to 1.1MHz bandwidth at a low quiescent current of 42μA per channel. Its ultra-low bias current (0.5pA) makes it ideal for use in integrators, photodiode amplifiers, and piezoelectric sensors. The rail-to-rail input/output characteristic makes it an ideal choice for ASIC design.
Applications
- Safety equipment monitoring
- Portable devices
- Battery-powered devices
- Signal processing
- Sensor signal processing in low-supply systems
- ASIC input or output amplifiers
- Audio output
- Handheld devices
- Mobile phones
- Laptops
- PCMCIA cards
Key features
- Low cost
- Rail-to-rail input/output
- Unity-gain stable
- Slew rate: 0.52 V/μs
- Minimum PSRR: 72dB
- Minimum CMRR: 76dB
- Offset voltage: 0.8mV typical, 3.5mV maximum
- Gain bandwidth product: 1.1MHz
- Ultra-low input bias current: 0.5pA
- Supply voltage range: 2.1V to 5.5V
- Input voltage range: 0.1V to +5.6V (Vs=5.5V)
- Quiescent current: 42μA
