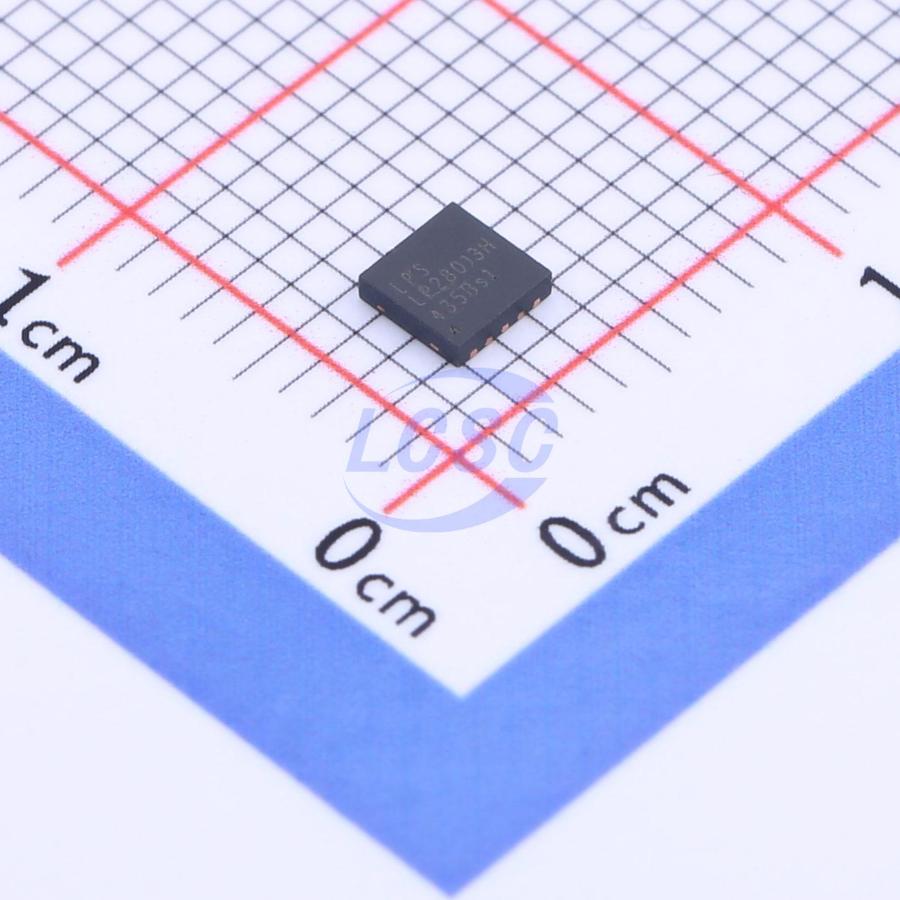

LP28013HQVF-435
Lithium Battery 1.1A TDFN-10-EP(3x3) Battery Management
1A Single Chip Li-lon and Li-Polymer Charger
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP28013HQVF-435
- Store part #
- C2890381
- Package / case
- TDFN-10-EP(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,900 in stock
#C2890381
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.57 | ₹152.85 |
| 50+ | ₹26.90 | ₹1,345.00 |
| 150+ | ₹25.32 | ₹3,798.00 |
| 500+ | ₹23.35 | ₹11,675.00 |
| 2,500+ | ₹22.46 | ₹56,150.00 |
| 5,000+ | ₹21.95 | ₹1,09,750.00 |
5 × ₹30.57
₹152.85
excl. GST
₹180.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LP28013HQVF-435
₹152.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.8V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Reverse current blocking;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1.1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.128 g
Overview
The LP28013H is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its TDFN-10 package and low external component count make the LP28013H ideally suited for portable applications. The charge current and termination current could program by external resistors. While the battery voltage is lower than 2.6V, the charge current is typically 10% of the programmed charge current. During the constant voltage phases, if the charge current reduces to the termination current level, the device will disable the internal power MOS and CHRG goes high impedance, which signals the charge cycle is termination. When the input supply is removed, the LP28013H automatically enters a low current state, dropping the battery drain current to less than <1μA. Other features include charge current monitor, under voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
Applications
- Portable Media Players
- Game Power Bank
- Bluetooth Applications
- PDA/MID
Key features
- Input voltage up to 36V
- Input Over Voltage Protection: 6.3V
- Short-circuit protection
- Programmable Charge Current up to 1A
- <1μA Battery Reverse Current
- Protection of Reverse Connection of Battery
- No MOSFET, Sense Resistor or Blocking Diode Required
- Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
- TDFN-10 Package
- RoHS Compliant and 100% Lead (Pb)-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP28013QVF-44#C517140LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 680 | ₹51.97 · 680 in stock | View |
 | LP28013AQVF#C517139LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 3,975 | ₹37.63 · 3,975 in stock | View |
 | LP28303AQVF#C517000LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 10,285 | ₹46.16 · 10,285 in stock | View |
 | LP28300AQVFH#C516998LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 4,998 | ₹131.90 · 4,998 in stock | View |
 | LP4078QVF#C42460088LOWPOWER · DFN-10-EP(3x3) | LOWPOWER | DFN-10-EP(3x3) | 4,350 | ₹32.47 · 4,350 in stock | View |
