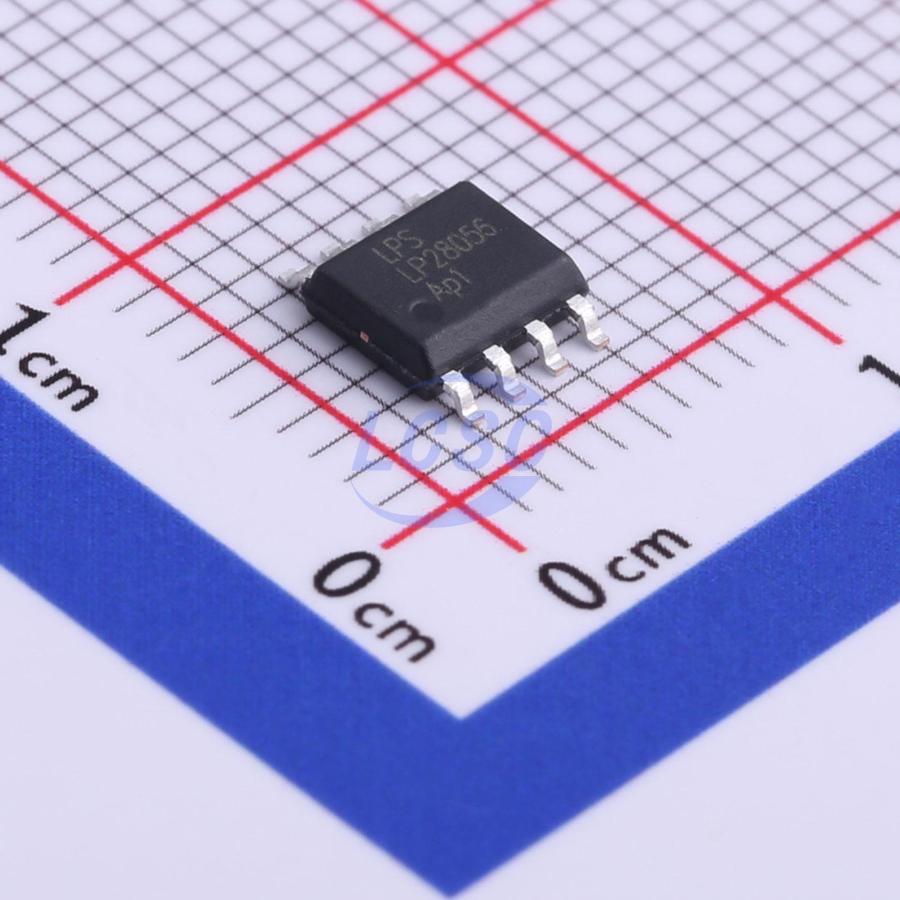

LP28056SPF

The LP28056 is a complete constant-current/ constant-voltage linear charger for single cell lithium-ion batteries. Its ESOP-8 package and low external component count make the LP28056 ideally suited for portable applications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be RISET rammed externally with a single resistor. The LP28056 automatically terminates the charge cycle when the charge current drops to 1/10th the RISET rammed value after the final float voltage is reached. When the input supply is removed, the LP28056 automatically enters a low current state, dropping the battery drain current to less than 1μA. The LP28056 can be put into shutdown mode, reducing the supply current to 1μA.

Applications

• Portable Media Players/MP3 players
• Cellular and Smart mobile phone
• PDA/DSC Bluetooth Applications

Key features

• Other features include charge current monitor, under voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
• Programmable Charge Current Up to 1200mA
• No MOSFET, Sense Resistor or Blocking Diode Required
• Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
• 1μA Supply Current in Shutdown
• 4.2V Charge Voltage with ± 1% Accuracy
• Short-circuit protection
• Consumption Available in ESOP-8 Package
• RoHS Compliant and 100% Lead (Pb)-Free
