TIDatasheet (PDF)

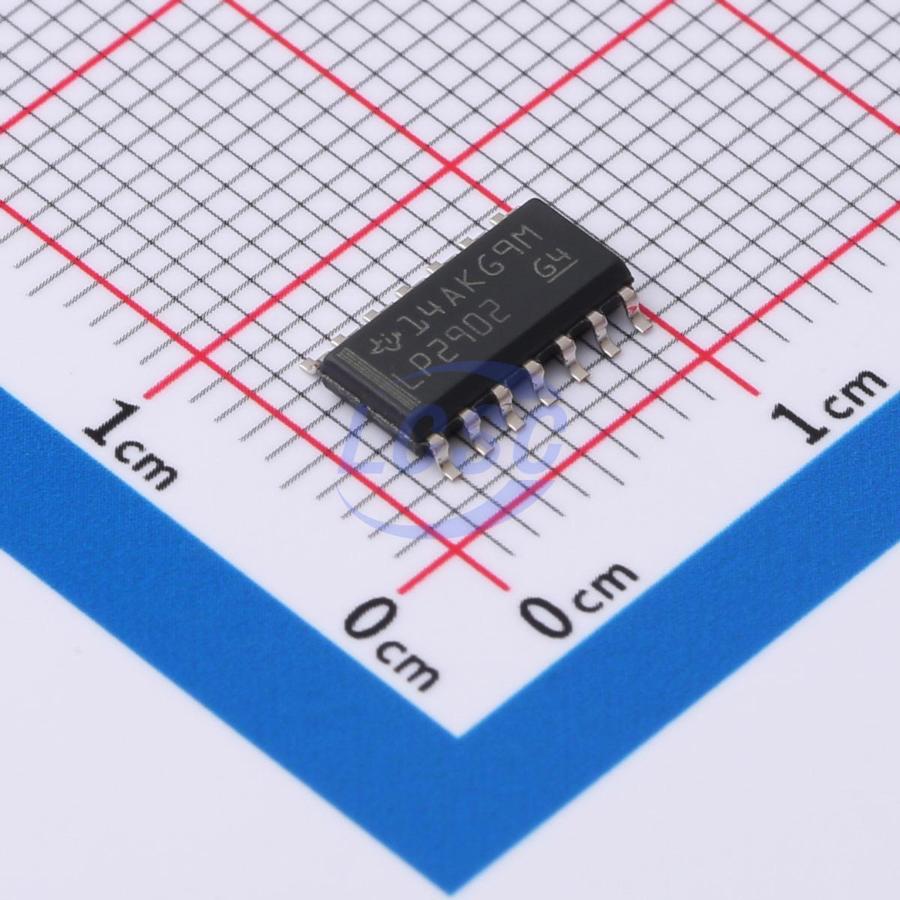

LP2902DR
10mA 4 2mV 50V/us 90dB 2nA 85uA 100kHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
ULTRA-LOW-POWER QUADRUPLE OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- LP2902DR
- Store part #
- C2058439
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,222 in stock
#C2058439
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.39 | ₹81.39 |
| 10+ | ₹65.51 | ₹655.10 |
| 30+ | ₹57.56 | ₹1,726.80 |
| 100+ | ₹49.81 | ₹4,981.00 |
| 500+ | ₹42.96 | ₹21,480.00 |
| 1,000+ | ₹40.42 | ₹40,420.00 |
1 × ₹81.39
₹81.39
excl. GST
₹96.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LP2902DR
₹81.39 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 50V/us
- Input Offset Current(Ios)
- 500pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 2nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 85uA
- Gain Bandwidth Product
- 100kHz
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
The LP324 and LP2902 are quadruple low-power operational amplifiers especially suited for battery-operated applications. Good input specifications and wide supply-voltage range still are achieved, despite the ultra-low supply current. Single-supply operation is achieved with an input common-mode range that includes GND. The LP324 and LP2902 are ideal in applications where wide supply voltage and low power are more important than speed and bandwidth. These applications include portable instrumentation, LCD displays, consumer electronics (MP3 players, toys, etc.), and power supplies.
Applications
- LCD Displays
- Portable Instrumentation
- Sensor/Metering Equipment
- Consumer Electronics (MP3 Players, Toys, Etc.)
- Power Supplies
Key features
- Low Supply Current ... 85 μA Typ
- Low Offset Voltage ... 2 mV Typ
- Low Input Bias Current ... 2 nA Typ
- Input Common Mode to GND
- Wide Supply Voltage ... 3 V < VCC < 32 V
- Pin Compatible With LM324
