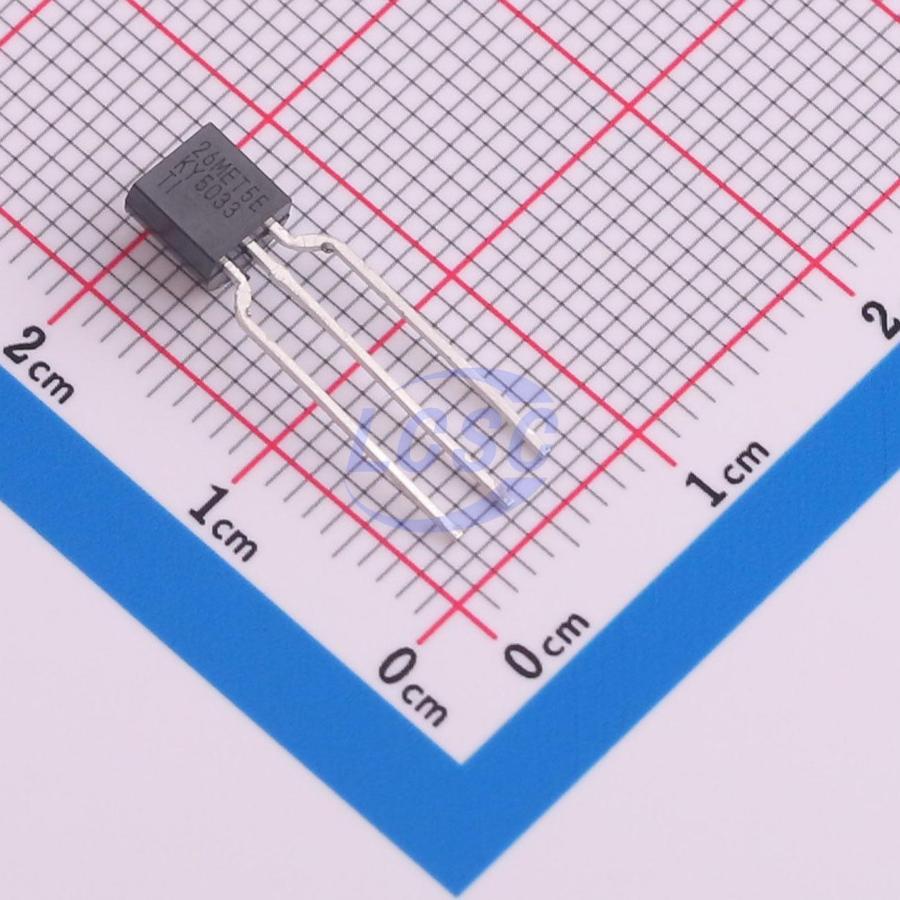

LP2950-33LPRE3
3.3V Positive Fixed TO-92-2.54mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-2.54mmROHS3 CompliantActive
100mA, 30V, low-dropout regulator with low IQ
- Manufacturer
- TI
- Manufacturer part #
- LP2950-33LPRE3
- Store part #
- C133551
- Package / case
- TO-92-2.54mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,681 in stock
#C133551
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.36 | ₹59.36 |
| 10+ | ₹46.53 | ₹465.30 |
| 30+ | ₹40.44 | ₹1,213.20 |
| 100+ | ₹34.79 | ₹3,479.00 |
| 500+ | ₹33.27 | ₹16,635.00 |
| 1,000+ | ₹32.40 | ₹32,400.00 |
1 × ₹59.36
₹59.36
excl. GST
₹70.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP2950-33LPRE3
₹59.36 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.667 g
Overview
The LP2950 and LP2951 devices are bipolar, lowdropout voltage regulators that can accommodate a wide input supply-voltage range of up to 30 V. The easy-to-use, 3-pin LP2950 is available in fixed-output voltages of 5 V, 3.3 V, and 3 V. However, the 8-pin LP2951 is able to output either a fixed or adjustable output from the same device. By tying the OUTPUT and SENSE pins together, and the FEEDBACK and V_TAP pins together, the LP2951 outputs a fixed 5 V, 3.3 V, or 3 V (depending on the version). Alternatively, by leaving the SENSE and V_TAP pins open and connecting FEEDBACK to an external resistor divider, the output can be set to any value between 1.235 V to 30 V.
Key features
- Applications with High-Voltage Input Power Supplies
- Wide Input Range: Up to 30 V
- Rated Output Current of 100 mA
- Low Dropout: 380 mV (Typ) at 100 mA
- Low Quiescent Current: 75 μA (Typ)
- Tight Line Regulation: 0.03% (Typ)
- Tight Load Regulation: 0.04% (Typ)
- High V_0 Accuracy: 1.4% at 25°C, 2% Over Temperature
- Can Be Used as a Regulator or Reference
- Stable With Low ESR (> |2| mΩ) Capacitors
- Current- and Thermal-Limiting Features (LP2950 Only, 3-Pin Package)
- Fixed-Output Voltages of 5 V, 3.3 V, and 3 V (LP2950 Only, 3-Pin Package)
- Fixed- or Adjustable-Output Voltages: 5 V/ADJ, 3.3 V/ADJ, and 3 V/ADJ (LP2951 Only, 8-Pin Package)
- Low-Voltage Error Signal on Falling Output
- Shutdown Capability
- Remote Sense Capability for Optimal Output Regulation and Accuracy
