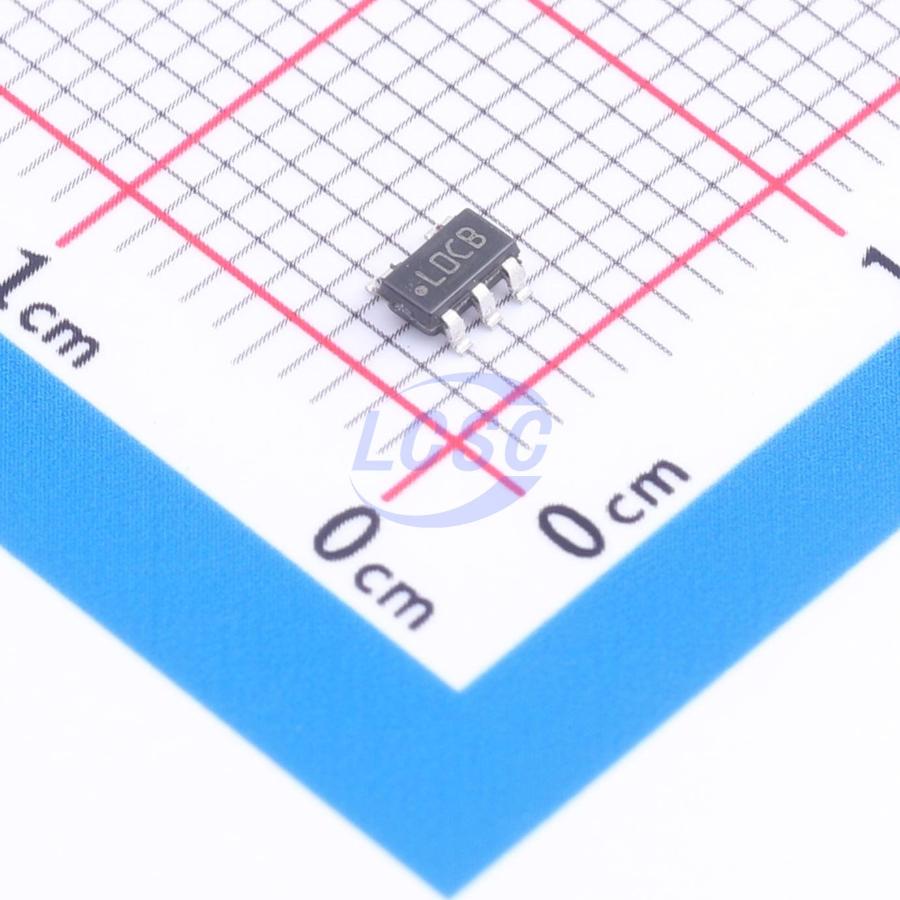

LP2981IM5-2.5/NOPB

2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

100mA, 16V, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: LP2981IM5-2.5/NOPB
Store part #: C2867805
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

97 in stock

#C2867805

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹372.31	₹372.31
10+	₹317.03	₹3,170.30
30+	₹282.47	₹8,474.10
100+	₹246.85	₹24,685.00
500+	₹230.86	₹1,15,430.00
1,000+	₹223.94	₹2,23,940.00

Quantity (min 1)

1 × ₹372.31

₹372.31

excl. GST

₹439.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LP2981IM5-2.5/NOPB

₹372.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 600uA
Output Configuration: Positive
Output Current: 100mA
Operating Voltage: 16V
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The LP2981-N is a 100-mA, fixed-output voltage regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized Vertically Integrated PNP (VIP) process, the LP2981-N delivers unequaled performance in all specifications critical to battery-powered designs: Dropout Voltage: Typically 200 mV at 100-mA load, and 7 mV at 1-mA load. Ground Pin Current: Typically 600 μA at 100-mA load, and 80 μA at 1-mA load. Sleep Mode: Less than 1-μA quiescent current when ON/OFF pin is pulled low. Precision Output: 0.75% tolerance output voltages available (A grade). Assorted voltage options, from 2.5 V to 5 V, are available as standard products.

Applications

Cellular Phones
Palmtop and Laptop Computers
Personal Digital Assistants (PDA)
Camcorders
Personal Stereos
Cameras

Key features

Operating Input Voltage Range: 2.1 V to 16 V
Ultralow-Dropout Voltage
Output Voltage Accuracy 0.75% (A Grade)
Specified 100-mA Output Current
<1-μA Quiescent Current when Shutdown
Low Ground Pin Current at All Load Currents
High Peak Current Capability (300 mA Typical)
Wide Supply Voltage Range (16 V Maximum)
Fast Dynamic Response to Line and Load
Low ZOUT Over Wide Frequency Range
Overtemperature and Overcurrent Protection
-40°C to 125°C Junction Temperature Range

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP2981AIM5-2.5/NOPB#C2859878TI · SOT-23-5	TI	SOT-23-5	14	₹269.48 · 14 in stock	View
CJ6330B25M#C17703078JSCJ · SOT-23-5L	JSCJ	SOT-23-5L	1,565	₹17.79 · 1,565 in stock	View
LT1761ES5-2.5#TRPBF#C117227ADI · TSOT-23-5	ADI	TSOT-23-5	67	₹937.28 · 67 in stock	View
LT1761IS5-2.5#TRPBF#C655171ADI · TSOT-23-5	ADI	TSOT-23-5	11	₹583.23 · 11 in stock	View
SPX3819M5-L-2-5/TR#C3028968MaxLinear · SOT-23-5	MaxLinear	SOT-23-5	3,035	₹48.91 · 3,035 in stock	View
