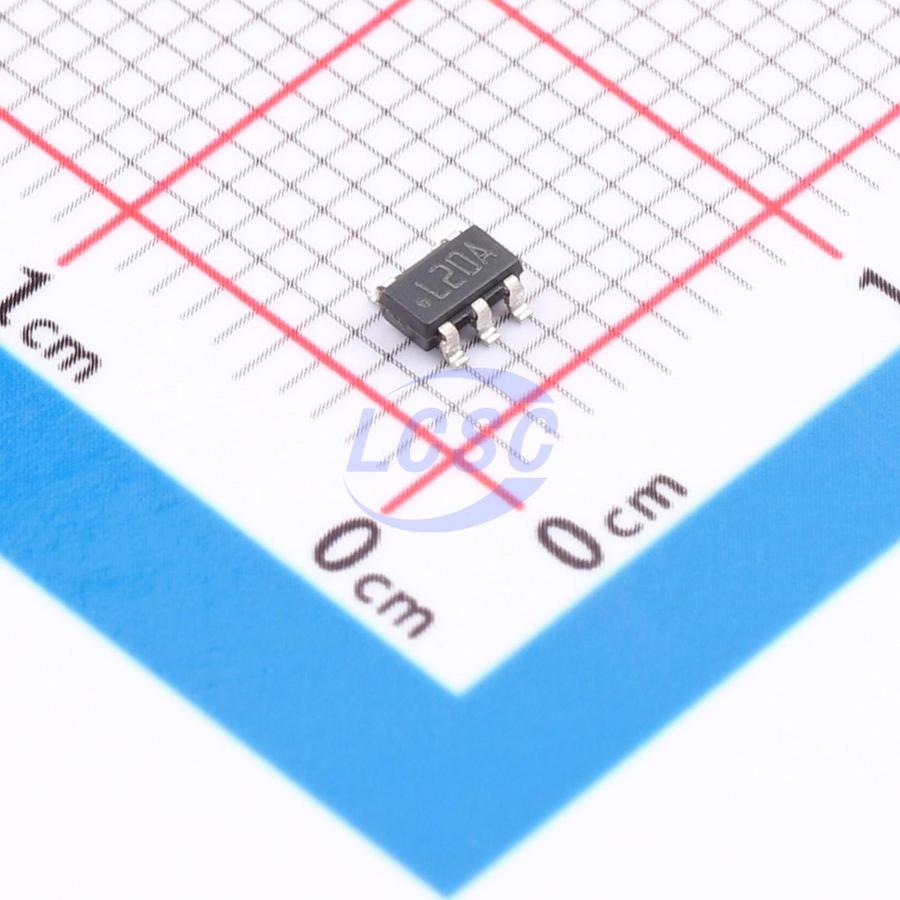

LP2982AIM5X-3.0/NOPB

The LP2982 is a 50-mA, fixed-output voltage LDO designed to provide ultra-low dropout and lower noise in battery-powered applications. Using an optimized vertically integrated PNP (VIP) process, the LP2982 delivers unequaled performance in all specifications critical to battery-powered designs: Dropout Voltage: Typically 120 mV at 50 mA load, and 7 mV at 1 mA load. Ground Pin Current: Typically 375 μA at 50 mA load, and 80 μA at 1 mA load. Sleep Mode: Less than 1 - μA quiescent current when ON/OFF pin is pulled low. Precision Output: 1% tolerance output voltages available (A grade). Low Noise: By adding an external bypass capacitor, output noise can be reduced to 30 μV (typical).

Applications

• Cellular Phones
• Palmtop and Laptop Computers
• Personal Digital Assistants (PDA)
• Camcorders
• Personal Stereos
• Cameras

Key features

• 2.1-V to 16-V Input Voltage
• Ultra-Low-Dropout Voltage
• Ensured 50-mA Output Current
• Typical Dropout Voltage 180 mV at 80 mA
• Requires Minimum External Components
• <1 μA Quiescent Current When Shut Down
• Low Ground Pin Current at All Loads
• Output Voltage Accuracy 1% (A Grade)
• High Peak Current Capability (150 mA Typical)
• Wide Supply Voltage Range (16 V Maximum)
• Low ZOUT 0.3 Ω Typical (10 Hz to 1 MHz)
• Overtemperature and Overcurrent Protection
• -40°C to +125°C Junction Temperature Range
