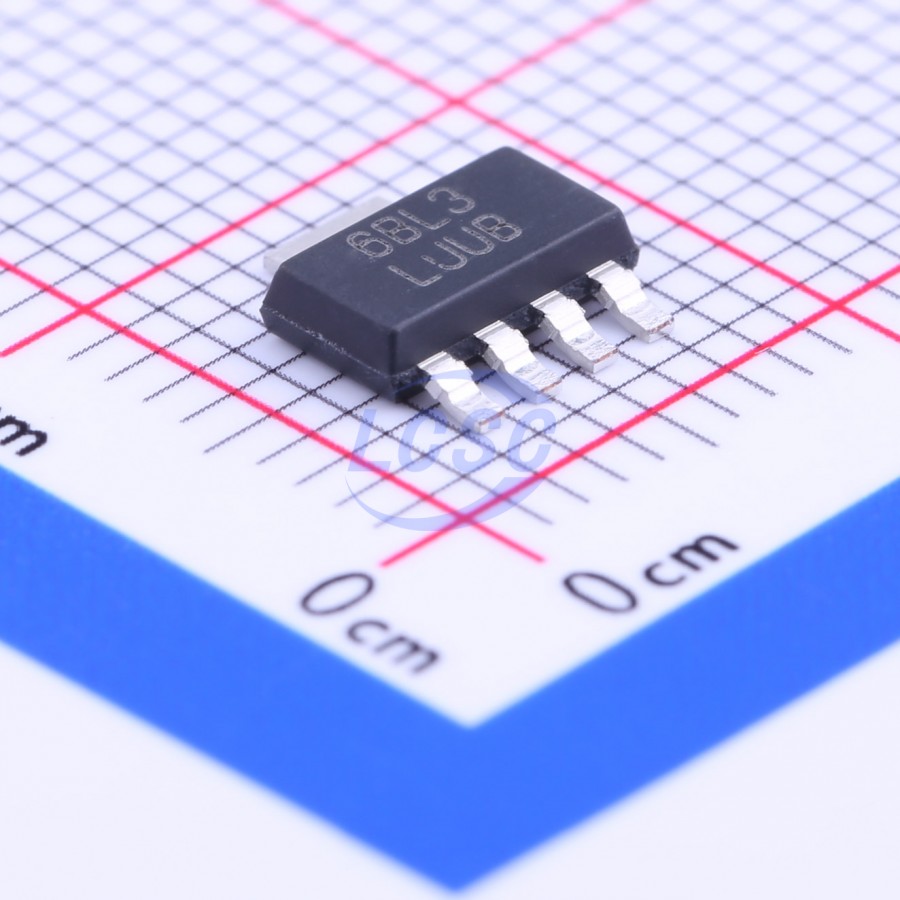

LP38693MP-ADJ/NOPB
1.25V~9V Positive Adjustable SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-5ROHS3 CompliantActive
500mA, 10V, adjustable low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38693MP-ADJ/NOPB
- Store part #
- C181420
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
841 in stock
#C181420
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.72 | ₹255.72 |
| 10+ | ₹211.61 | ₹2,116.10 |
| 30+ | ₹187.28 | ₹5,618.40 |
| 100+ | ₹159.91 | ₹15,991.00 |
| 500+ | ₹137.96 | ₹68,980.00 |
| 1,000+ | ₹132.54 | ₹1,32,540.00 |
1 × ₹255.72
₹255.72
excl. GST
₹301.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP38693MP-ADJ/NOPB
₹255.72 for 1 + GST
Specifications
- Output Voltage
- 1.25V~9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The LP3869x-ADJ low-dropout CMOS linear regulators provide 2% precision reference voltage, extremely low dropout voltage 250 mV at 500-mA load current, Vout = 5 V, and excellent AC performance using ultra-low equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON and SOT223 packages allow use of the full operating current even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base drive current is required to bias it, thus allowing the GND-pin current to remain below 100 μA regardless of load current, input voltage, or operating temperature.
Applications
- Hard Disk Drives
- Notebook Computers
- Battery-Powered Devices
- Portable Instrumentation
Key features
- Wide Input Voltage Range: 2.7 V to 10 V
- All WSON Options are Available as AEC-Q100 Grade 1
- Output Voltage Range: 1.25 V to 9 V
- 2% Adjust (ADJ) Pin Voltage Accuracy (25°C)
- Low Dropout Voltage: 250 mV at 500 mA (Typical, 5-V Out)
- Precision (Trimmed) Bandgap Reference
- Ensured Specs for -40°C to +125°C
- 1-μA Off-State Quiescent Current
- Thermal Overload Protection
- Foldback Current Limiting
- Ground (GND) Pin Current: 55 μA (Typical) at Full Load
- Enable (EN) Pin (LP38693-ADJ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP38693MPX-ADJ/NOPB#C2872356TI · SOT-223-5 | TI | SOT-223-5 | 13 | ₹212.13 · 13 in stock | View |
 | LP38692MP-ADJ/NOPB#C156355TI · SOT-223-5 | TI | SOT-223-5 | 30 | ₹202.09 · 30 in stock | View |
 | LP38692MPX-ADJ/NOPB#C527485TI · SOT-223-5 | TI | SOT-223-5 | On request | ₹112.97 · 0 in stock | View |
