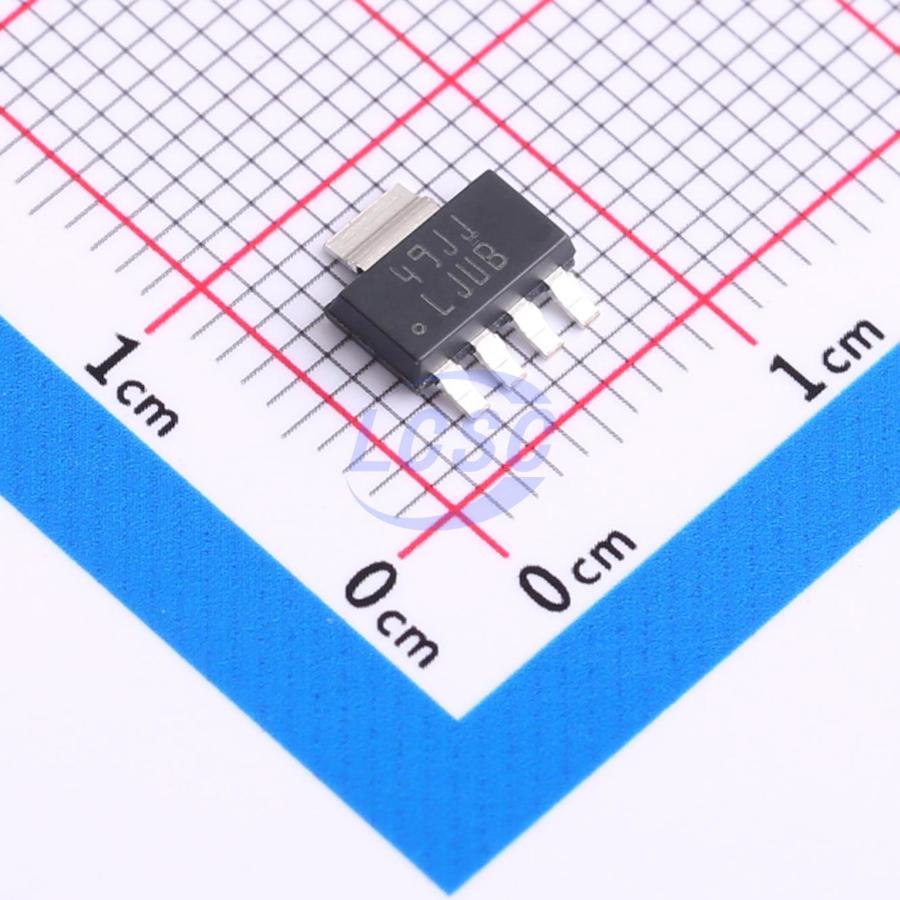

LP38693MPX-ADJ/NOPB
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA SOT-223-5
SOT-223-5ROHS3 CompliantActive
500mA, 10V, adjustable low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38693MPX-ADJ/NOPB
- Store part #
- C2872356
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C2872356
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.13 | ₹212.13 |
| 10+ | ₹174.65 | ₹1,746.50 |
| 30+ | ₹153.84 | ₹4,615.20 |
| 100+ | ₹130.66 | ₹13,066.00 |
| 500+ | ₹120.26 | ₹60,130.00 |
| 1,000+ | ₹115.50 | ₹1,15,500.00 |
1 × ₹212.13
₹212.13
excl. GST
₹250.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP38693MPX-ADJ/NOPB
₹212.13 for 1 + GST
Specifications
- Output Voltage
- 1.25V~9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.242 g
Overview
The LP3869x-ADJ low-dropout CMOS linear regulator features a 2% accurate reference voltage and ultra-low dropout (250mV at 500mA load current with VOUT = 5V), and supports ultra-low ESR ceramic output capacitors for excellent AC performance. This regulator is available in low thermal resistance WSON and SOT-223 packages, enabling full-current operation even at elevated ambient temperatures. The use of a PMOS power transistor eliminates the need for DC base drive current biasing, keeping ground pin current below 100μA regardless of load current, input voltage, or operating temperature.
Applications
- Hard disk drives
- Laptops
- Battery-powered devices
- Portable instruments
Key features
- Wide input voltage range: 2.7V to 10V
- All WSON options available as AEC-Q100 Grade 1 devices
- Output voltage range: 1.25V to 9V
- 2% ADJ pin voltage accuracy (25°C)
- Low dropout voltage: 250mV at 500mA (typical, 5V output)
- Precision (trimmed) bandgap reference guarantees specifications over -40°C to +125°C
- 1μA shutdown quiescent current
- Thermal overload protection
- Foldback current limiting
- GND pin current: 55μA at full load (typical)
- EN pin (LP38693-ADJ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP38693MP-ADJ/NOPB#C181420TI · SOT-223-5 | TI | SOT-223-5 | 841 | ₹255.72 · 841 in stock | View |
 | LP38692MP-ADJ/NOPB#C156355TI · SOT-223-5 | TI | SOT-223-5 | 30 | ₹202.09 · 30 in stock | View |
