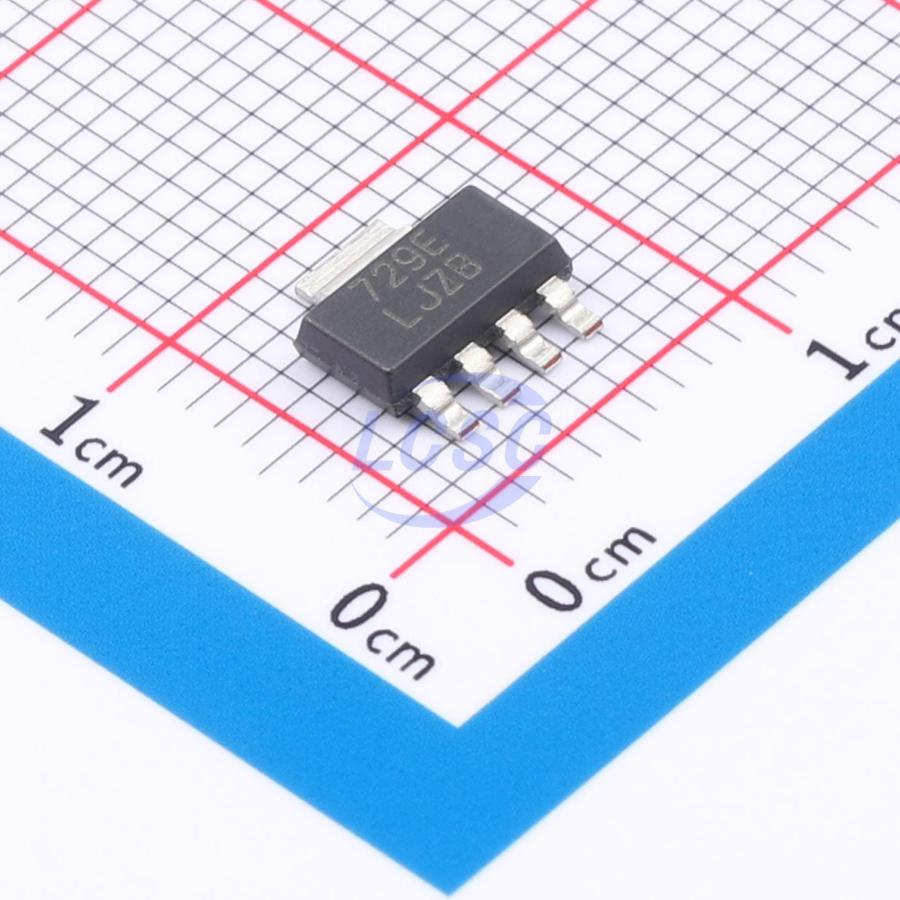

LP38693MPX-5.0/NOPB
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-5
SOT-223-5ROHS3 CompliantActive
500mA, 10V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38693MPX-5.0/NOPB
- Store part #
- C2877964
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C2877964
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.48 | ₹223.48 |
| 10+ | ₹218.22 | ₹2,182.20 |
| 30+ | ₹214.76 | ₹6,442.80 |
| 100+ | ₹211.32 | ₹21,132.00 |
1 × ₹223.48
₹223.48
excl. GST
₹263.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LP38693MPX-5.0/NOPB
₹223.48 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.198 g
Overview
The LP3869x low-dropout CMOS linear regulator features tight output tolerance (2% typical) and ultra-low dropout voltage (250mV at 500mA load current, V<sub>OUT</sub> = 5V), and delivers excellent AC performance with ultra-low ESR ceramic output capacitors. The regulator is available in low thermal resistance WSON, SOT-223, and TO-252 packages, enabling full-current operation even at elevated ambient temperatures. The use of a PMOS power transistor eliminates the need for DC base drive current biasing, keeping ground pin current below 100μA regardless of load current, input voltage, or operating temperature. - Dropout voltage: 250mV (typical) at 500mA (5V output voltage, typical) - Ground pin current: 55μA (typical) at full load - Precision output voltage: 2% accuracy (25°C)
Applications
- Hard disk drives
- Laptops
- Battery-powered devices
- Portable instruments
Key features
- Wide input voltage range (2.7V to 10V)
- All WSON options available as AEC-Q100 Grade 1
- 2.0% output accuracy (25°C)
- Low dropout: 250mV at 500mA (5V output typical)
- Precision (trimmed) bandgap reference
- Specifications guaranteed over -40°C to +125°C temperature range
- 1μA shutdown quiescent current
- Thermal overload protection
- Foldback current limiting
- TO-252, SOT-223, and 6-bump WSON packages
- Enable pin (LP38693)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP38692MP-5.0/NOPB#C28191TI · SOT-223-5 | TI | SOT-223-5 | 1,380 | ₹324.81 · 1,380 in stock | View |
 | LP38692MPX-5.0/NOPB#C2859687TI · SOT-223-5 | TI | SOT-223-5 | 75 | ₹410.34 · 75 in stock | View |
 | LP38693MP-5.0/NOPB#C140294TI · SOT-223-5 | TI | SOT-223-5 | 691 | ₹311.37 · 691 in stock | View |
