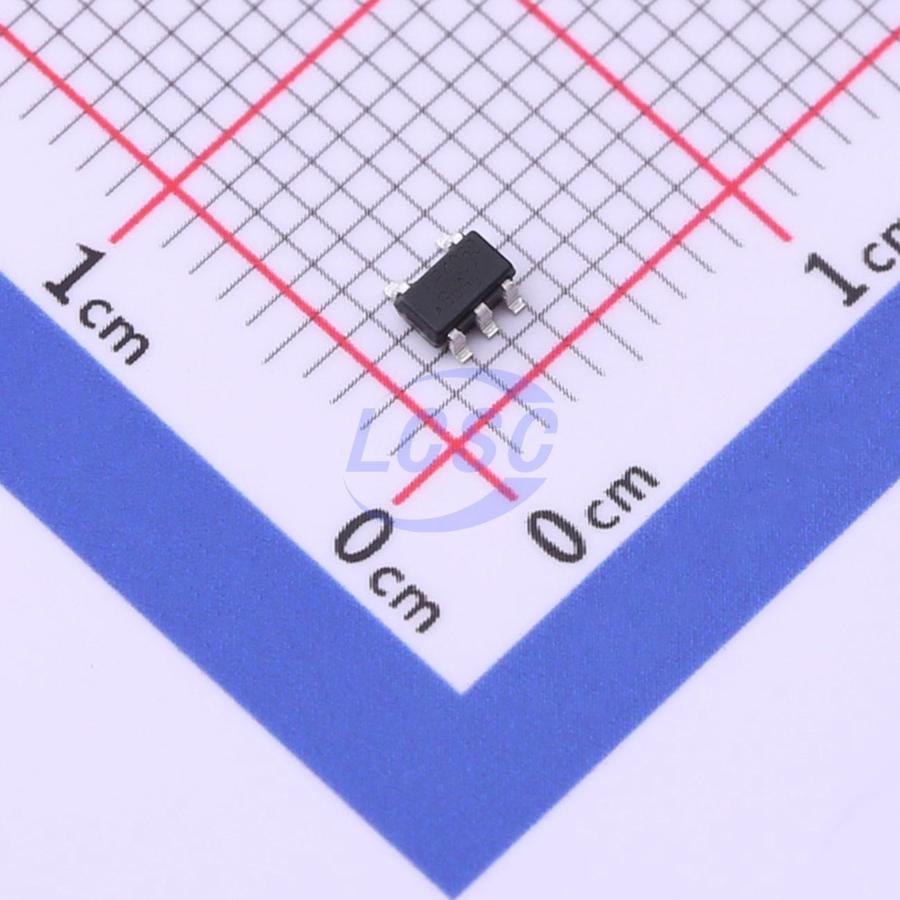

LP4060B5F

The LP4060 is a complete constant-current/constant- voltage linear charger for single cell lithium-ion batteries. Its SOT23-5 package and low external component count make the LP4060 ideally suited for portable applications. Furthermore, the LP4060 is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V/4.35V , and the charge current can be programmed externally with a single resistor. The LP4060 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the LP4060 automatically enters a low current state, dropping the battery drain current to less than 1uA. Other features include charge current monitor, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.

Applications

• Portable Media Players/MP3 players
• Cellular and Smart mobile phone PDA/DSC
• Bluetooth Applications

Key features

• Programmable Charge Current Up to 800mA
• No MOSFET, Sense Resistor or Blocking Diode Required
• Complete Linear Charger in SOT23-5 Package for Single Cell Lithium-ion Batteries
• Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize
• Charge Rate Without Risk of Overheating
• 4.2V Charge Voltage with ± 1% Accuracy
• Charge Current Monitor Output for Gas Gauging
• Automatic Recharge
• 2.9V Trickle Charge Threshold
• C/10 Charge Termination
• 1uA Supply Current in Shutdown
• Output OCP Charging OTP
