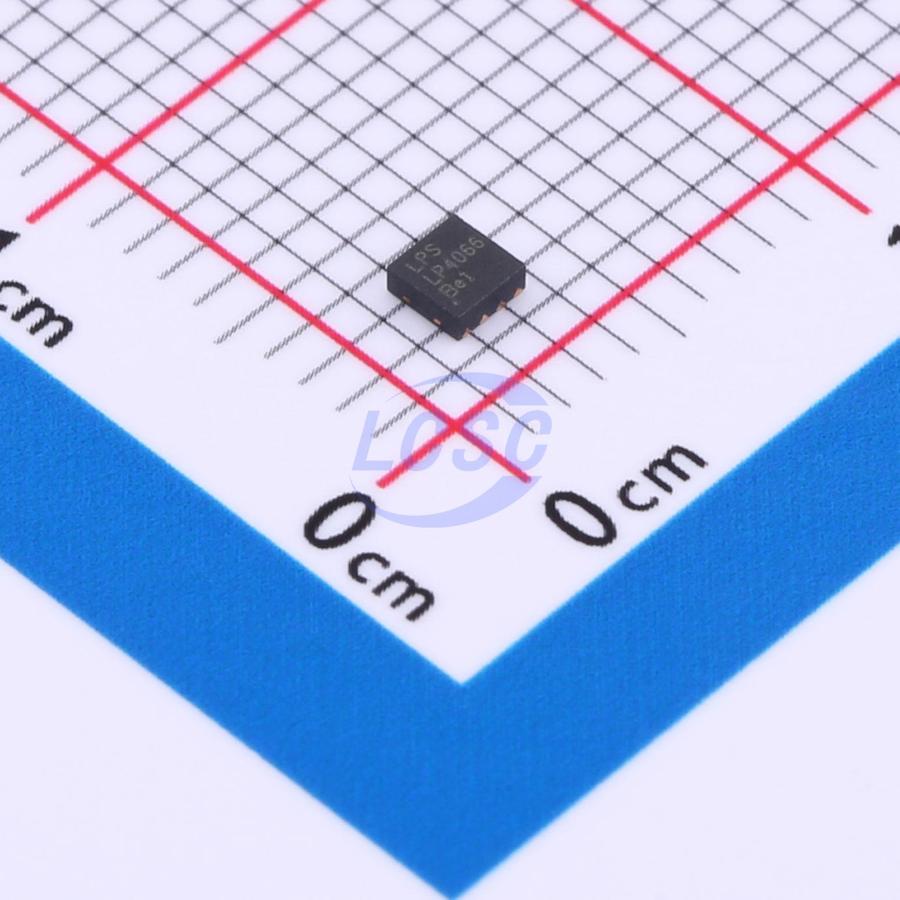

LP4066QVF
Lithium Battery 1A TDFN-8-EP(2x2) Battery Management
1A Single Chip Li-lon and Li-Polymer Charger
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP4066QVF
- Store part #
- C2935090
- Package / case
- TDFN-8-EP(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,876 in stock
#C2935090
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.46 | ₹35.46 |
| 10+ | ₹28.23 | ₹282.30 |
| 30+ | ₹25.14 | ₹754.20 |
| 100+ | ₹21.27 | ₹2,127.00 |
| 500+ | ₹19.55 | ₹9,775.00 |
| 1,000+ | ₹16.06 | ₹16,060.00 |
1 × ₹35.46
₹35.46
excl. GST
₹41.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LP4066QVF
₹35.46 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.8V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
The LP4066 is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its SOT23-5/TDFN-8/ESOP8 package and low external component count make the LP4066 ideally suited for portable applications. The charge current and termination current could program by external resistors. While the battery voltage is lower than 2.6V, the charge current is typically 10% of the programmed charge current. During the constant voltage phases, if the charge current reduces to the termination current level, the device will disable the internal power MOS and CHRG goes high impedance, which signals the charge cycle is termination.
Applications
- Portable Media Players/Game
- Power Bank
- Bluetooth Applications
- PDA/MID
Key features
- When the input supply is removed, the LP4066 automatically enters a low current state, dropping the battery drain current to less than 1μA.
- Other features include charge current monitor, under voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP4069PQVF#C42460085LOWPOWER · TDFN-8-EP(2x2) | LOWPOWER | TDFN-8-EP(2x2) | 2,990 | ₹18.22 · 2,990 in stock | View |
 | LP4069QVF#C2902420LOWPOWER · TDFN-8L(2x2) | LOWPOWER | TDFN-8L(2x2) | 3,995 | ₹19.49 · 3,995 in stock | View |
 | LP4069TQVF#C2890382LOWPOWER · DFN-8-EP(2x2) | LOWPOWER | DFN-8-EP(2x2) | On request | Price on request | Quote |
 | LP4069QVF-435#C2902421LOWPOWER · TDFN-8L(2x2) | LOWPOWER | TDFN-8L(2x2) | On request | Price on request | Quote |
| LP4069QVF-44#C42380747LOWPOWER · DFN-8-EP(2x2) | LOWPOWER | DFN-8-EP(2x2) | On request | Price on request | Quote | |
