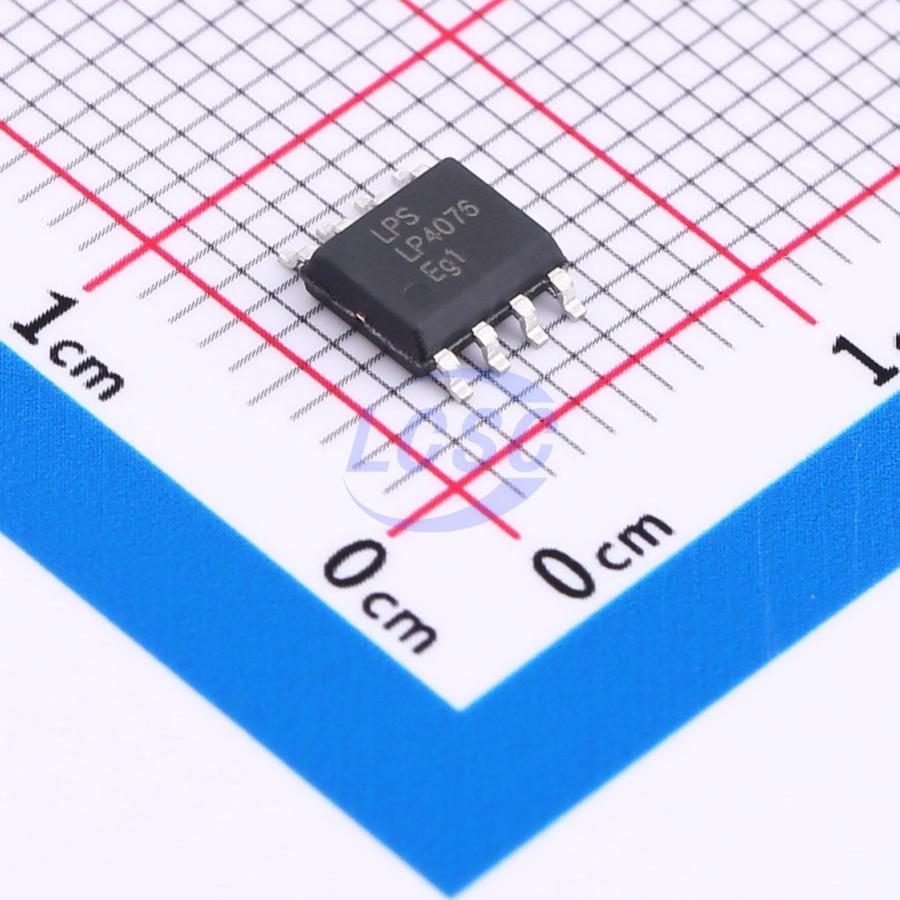

LP4076SPF
Lithium Battery 1A ESOP-8 Battery Management
36V/1A Standalone Single-Cell Linear Charger
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP4076SPF
- Store part #
- C42460071
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,335 in stock
#C42460071
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.53 | ₹476.50 |
| 150+ | ₹8.23 | ₹1,234.50 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 2,500+ | ₹6.47 | ₹16,175.00 |
| 4,000+ | ₹6.07 | ₹24,280.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LP4076SPF
₹60.60 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Quiescent Current
- 190uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
The LP4076/LP4076E is a highly advanced linear charger for single-cell Li-Ion and Li-Polymer batteries. The device is ideally suited for portable applications due to low number of external components required. The device employs a full charge algorithm with trickle current, constant current (CC), constant voltage (CV) modes, charge termination and automatic recharge. The device supports charge current up to 1A, programmed by an external resistor. The device can withstand an input voltage up to 36V, which can protect the charger from any accidental insertion of a high-voltage supply or a hot insertion. The device can withstand a BAT voltage up to 14V, which is suited for power battery applications. Without an input supply, the battery leakage current is only 30nA typical. The device provides various safety features for battery charging, including input under voltage lockout (UVLO), input over-voltage protection (OVP), battery reverse connection protection, cold/hot battery temperature protection, and thermal regulation protection that is implemented by reducing the charge current when the junction temperature reaches 140 °C. The LP4076/LP4076E is available in an ESOP-8 package.
Applications
- Wireless Speaker
- Cordless Power Tools
- Gaming Devices
- Portable Media Players
- Handheld Battery-Powered Devices
- Charging Docks and Cradles
- Power Banks
- E-Cigarettes
Key features
- Easy-to-use standalone single-cell charger
- High input voltage linear charger
- Support up to 7V operating input voltage with 36V absolute maximum input rating
- Maximum BAT withstand voltage up to 14V
- Programmable up to 1A fast charge current
- -0.5/+1% regulated output voltage accuracy
- Trickle current 10% of fast charge current
- Termination current 10% of fast charge current
- High integration
- Integrated reverse blocking MOSFET
- Built-in charge current sensing
- Internal loop compensation
- Integrated charge status indication
- Support full charge cycle of trickle current mode, constant current (CC) mode, constant voltage (CV) mode, charge termination and automatic recharge
- Protection features:
- Input under-voltage lockout (UVLO)
- Input over-voltage protection (OVP)
- Battery reverse connection protection
- Thermal regulation
- Cold/hot battery temperature protection
- RoHS Compliant and 100% Lead (Pb)-Free
- Package: ESOP-8
